Hot Water Boiler

Hot water boiler is a machine used for the production, storage, and distribution of hot water required in many different applications. It is particularly necessary in areas such as buildings, residences, hotels, LPG, LNG, CNG, and gasification plants, food production, cleaning services, and industrial facilities.

These boilers typically derive energy from fuel sources and use this energy to heat water and produce hot water. The water inside the boiler is heated to high temperatures with the help of heating elements, thus obtaining hot water suitable for use. Hot water boilers are also used to store hot water. This allows the hot water to be quickly available when needed. Hot water boilers produced by Ekotek Heat Technologies are manufactured with capacities ranging from 25,000 Kcal/H to 20,000,000 Kcal/H.

Hot water boilers are divided into two according to the temperature degrees of the hot water to be produced and the types of fuel; they are either solid fuel hot water boiler or liquid gas fuel hot water boiler. Hot water boilers are also commonly known by the general public as central heating systems.

WhatsApp Quick Contact WhatsApp Quick Contact
Hot Water Boiler
Certificates
Locomotive Series
Locomotive Series - Manually Loaded Solid Fuel Hot Water Boiler
  • Heat Capacity : 25,000 Kcal/h - 1,500,000 Kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Horizontal – Floor Type – 3 Pass – Semi-cylindrical
  • Fuel Types : Lignite Coal, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells
  • Combustion System : Manual fuel feeding, cast iron grate in the combustion chamber
View
Manually Loaded Solid Fuel Hot Water Boiler
Saving Series
Saving Series - Solid Fuel Automatic Hot Water Boiler
  • Heat Capacity : 25,000 kcal/h - 60,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Vertical - Floor-standing - 3-pass - Prismatic
  • Fuel Type : Lignite Coal, Olive Pomace, Olive Pits, Wood, Wood Chips, Plywood Waste, Particleboard Pieces, Hazelnut Shells, Almond Shells
  • Combustion System : Bottom Loading, Side Mechanical Auger
View
Solid Fuel Automatic Hot Water Boiler
Obus Series
Obus Series - Solid Fuel Hot Water Boiler
  • Heat Capacity : 25,000 kcal/h - 60,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Vertical - Floor type - 4 Pass - Prismatic
  • Fuel Types : Lignite Coal, Olive Pomace, Olive Pit, Wood, Wood Chips, Plywood Waste, Particleboard Pieces, Nut Shells, Almond Shells
  • Combustion System : Bottom-fed, Side Mechanical Auger, and Manual wood loading compartment
View
Solid Fuel Hot Water Boiler
Monster Series
Monster Series - Scotch Type Solid Fuel Hot Water Boiler
  • Heat Capacity : 700,000 kcal/h - 4,000,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Horizontal - Floor-mounted - 3-pass - Fully cylindrical - Scotch type
  • Fuel Type : Lignite Coal, Hard Coal, Pulverized Coal, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Wood Shavings, Plywood Waste, Suta Pieces, Nut Shell, Cherry Pit, Walnut Shell, Sunflower, Compressed Bio Pellets, Acorn, Peanut Shell, Almond Shell
  • Combustion System: : Bottom-fed, Front Mechanical Auger
View
Scotch Type Solid Fuel Hot Water Boiler
Individual Ekopel Series
Individual Ekopel Series - Solid Fuel Hot Water Boiler
  • Heat Capacity : 25,000 kcal/h - 60,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Vertical - Floor-mounted - 3-pass - Prismatic
  • Fuel Type : Lignite Coal, Pellet, Olive Pit, Wood, Wood Chips, Sawdust, Wood Shavings, Plywood Waste, Suta Pieces, Nut Shell, Cherry Pit, Walnut Shell, Sunflower, Compressed Bio Pellets, Acorn, Peanut Shell, Almond Shell
  • Combustion System : Bottom-fed, Rear Mechanical Auger
View
Solid Fuel Hot Water Boiler
Fiery Series
Fiery Series - Liquid Gas Fired Hot Water Boiler
  • Heat Capacity : 25,000 kcal/h - 60,000 kcal/h
  • Burner : Compatible with universal burners
  • Control Panel : Digital Temperature Controlled
  • Flue Outlet : Rear
  • Hot Water Inlet/Outlet : Flanged Type
View
Liquid Gas Fired Hot Water Boiler
Atom Series
Atom Series - Liquid Gas Fired Hot Water Boiler
  • Heat Capacity : 80,000 kcal/h - 2,500,000 kcal/h
  • HS Code : 840310900000
  • Burner : Compatible with universal burners
  • Control Panel : Digital Temperature Controlled
  • Flue Outlet : Rear
View
Atom Series - Liquid Gas Fired Hot Water Boiler
Burning Series
Burning Series - Scotch Type Liquid Gas Fired Hot Water Boiler
  • Heat Capacity: : Light oil, Heavy oil, Diesel, N.gas, Lpg, Cng, Lng, Biogas
  • Heat Capacity Range Min - Max : 100.000 Kcal/ H -20.000.000 Kca/h - 116 kw-23.256 kw
  • Burners : Compatible with universal burners
  • Control Panel : Digital temperature controlled
  • Chimney Outlet : From the back
View
Burning Series - Scotch Type Liquid Gas Fired Hot Water Boiler
Ekopel Series
Ekopel Series - Solid Fuel Hot Water Boiler
  • Heat Capacity : 80,000 kcal/h - 1,500,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Horizontal - Floor-standing - 3-pass - Semi-cylindrical
  • Fuel Type : Lignite Coal, Pellets, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Wood Shavings, Plywood Waste, Chipboard Pieces, Nut Shells, Cherry Pits, Walnut Shells, Sunflower, Compressed Pellets - Bio Pellets, Acorns, Peanut Shells, Almond Shells
  • Combustion System : Bottom-fed, Rear Mechanical Auger
View
Ekopel Series - Solid Fuel Hot Water Boiler
Torch Series
Torch Series - Solid Fuel Hot Water Boiler
  • Heat Capacity : 80,000 kcal/h - 3,000,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Horizontal – Floor type – 3 Pass – Semi-cylindrical
  • Fuel Types : Lignite Coal, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells
  • Combustion System : Bottom-fed, Side Mechanical Auger - Rotating Grate or Moving Piston Grate depending on capacity
View
Solid Fuel Hot Water Boiler

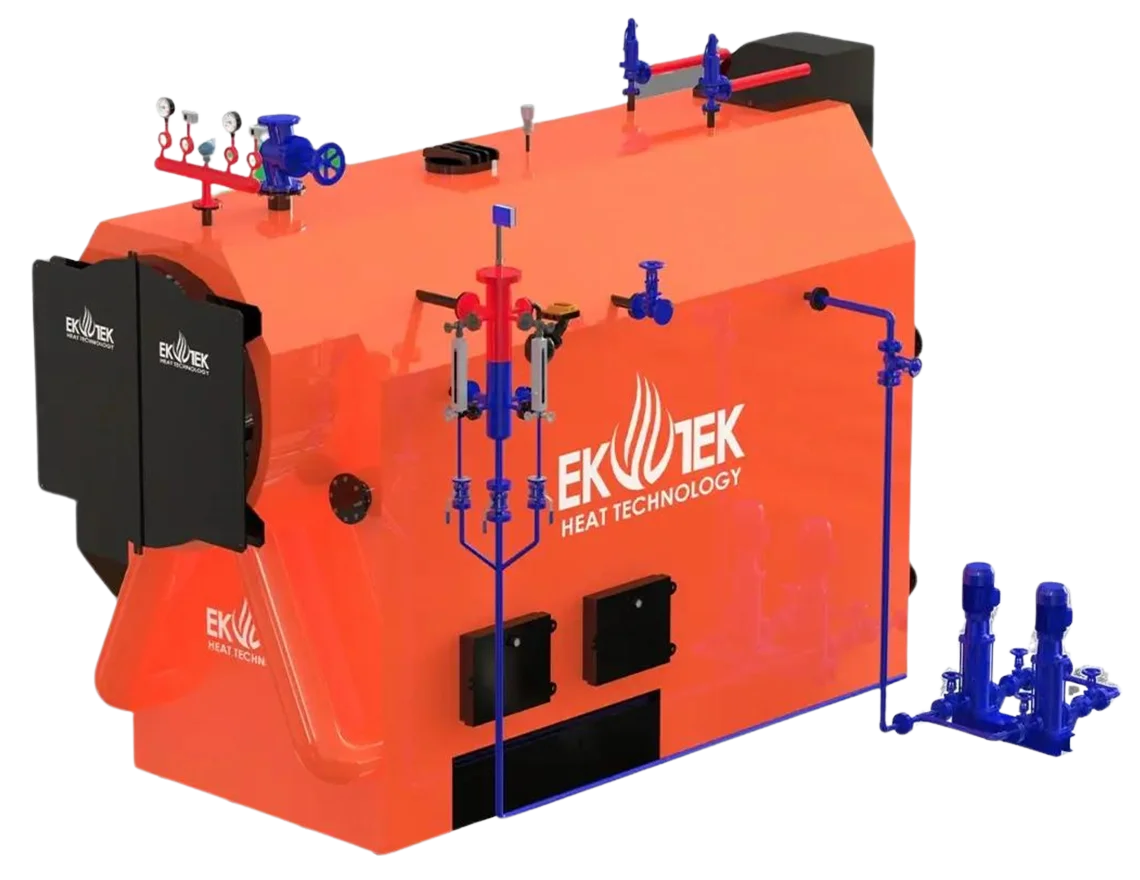

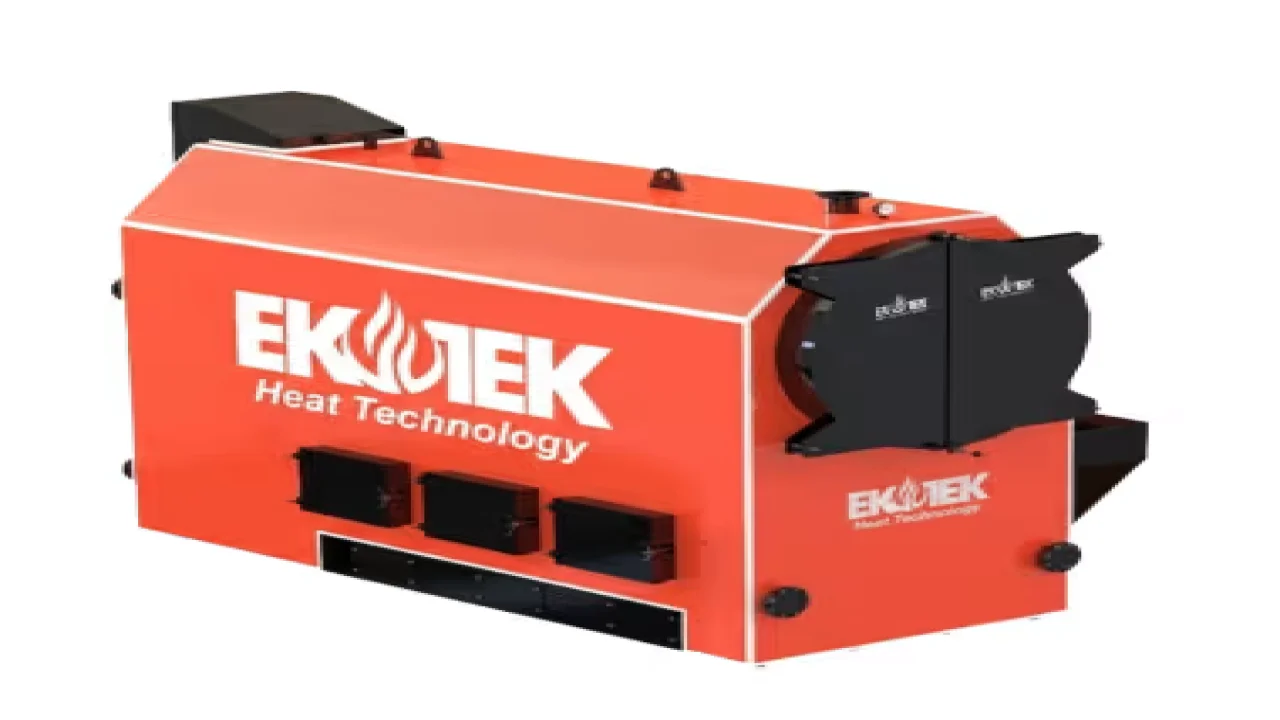

Hybrid Series
Hybrid Series - Solid Fuel Hot Water Boiler
  • Heat Capacity : 500,000 kcal/h - 10,000,000 kcal/h
  • Operating Temperature : 60°C - 85°C
  • Design Type : Horizontal – 5 Pass, Water-tube type
  • Fuel Types : Lignite Coal, Hard Coal, Coal Dust, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Wood Dust, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells, Cherry Pits, Walnut Shells, Straw, Sunflower, Compressed Bio Pellets, Pellets, Peanut Shells, Almond Shells, Fruit Pulp, Chicken Manure, Rice Husk
  • Combustion System : Bottom-fed, Mechanically Auger-fed - Rotating Grate or Moving Piston Grate depending on capacity
View
Solid Fuel Hot Water Boiler

The Operating Principle of a Hot Water Boiler

The fundamental function of hot water boilers is to heat and store water. These boilers typically use fuel sources (such as natural gas, coal, etc.) or heating elements (resistances, steam) to heat the water. The heated water is then stored in an insulated storage compartment. When hot water is needed, the stored hot water is mixed with cold water to achieve the desired temperature.

Applications of a Hot Water Boiler

Hot water boilers have a wide range of applications, providing efficient production, storage, and distribution of hot water. Some of the common areas where hot water boilers are used include:

  1. Residential Buildings: Used in homes to provide hot water for bathrooms, kitchens, and general use.
  2. Hotels and Resorts: Employed in accommodation facilities to meet guests' hot water needs.
  3. Hospitals and Healthcare Facilities: Essential for sterilization, washing, and patient care.
  4. Industrial Facilities: Needed for manufacturing processes, cleaning, heating, and various industrial operations.
  5. Swimming Pools and Spa Centers: Used for comfort and hygiene purposes in pools and spas.
  6. Agricultural Applications: Required for tasks like greenhouse cultivation, providing hot water for plant growth.
  7. Heating Systems: Utilized to transport and distribute hot water in heating systems.

Hot water boilers offer a versatile solution for producing, storing, and distributing hot water effectively across various sectors.
