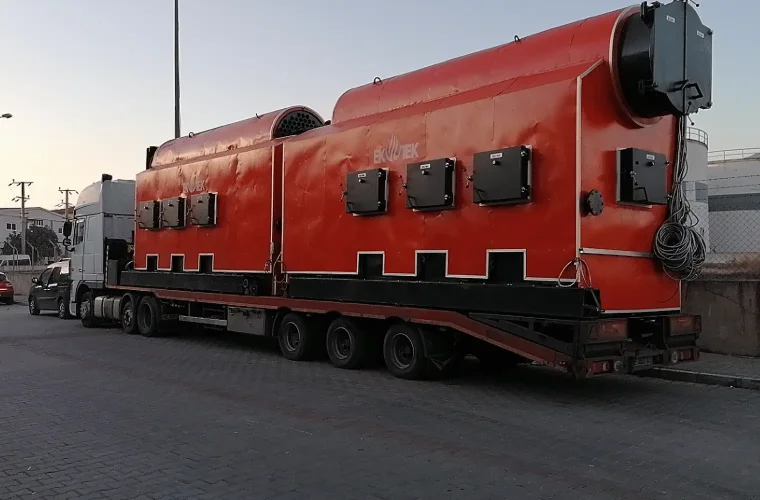

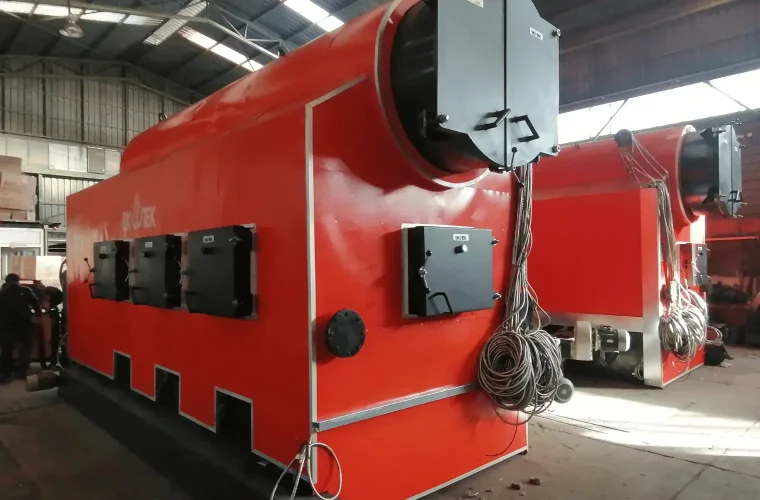

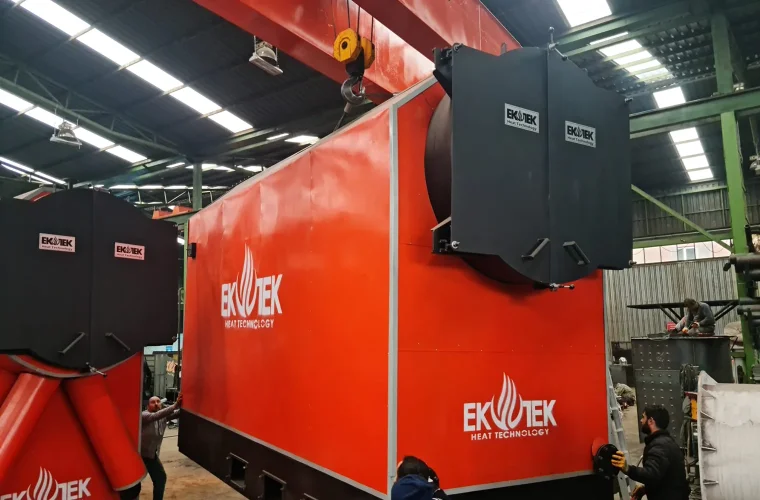

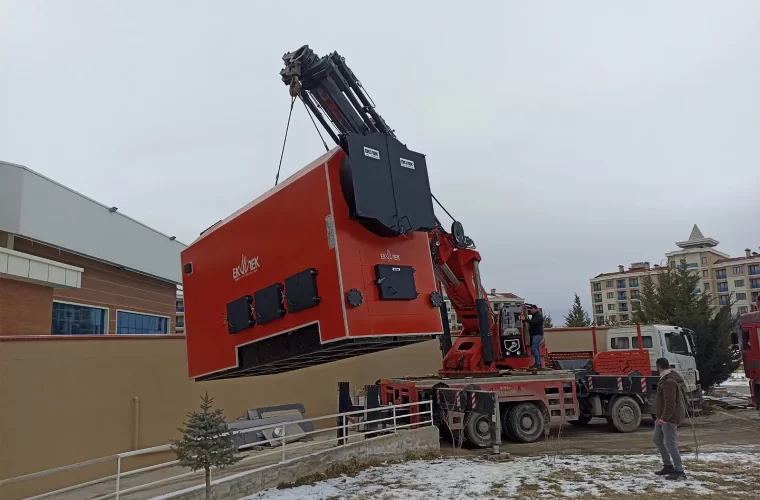

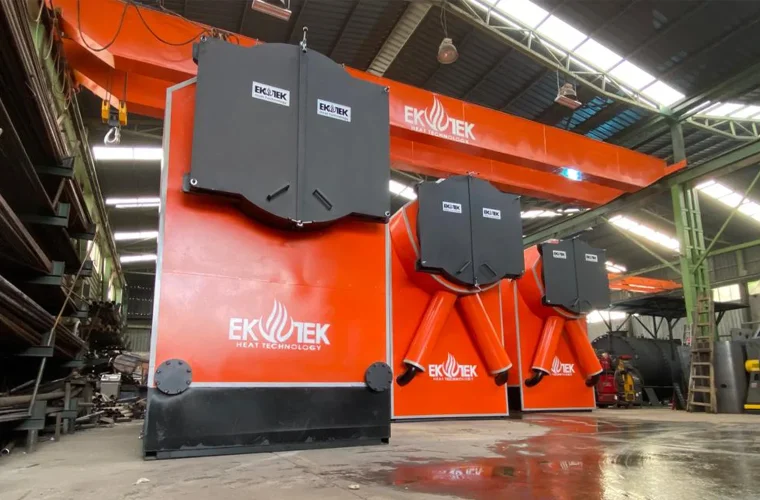

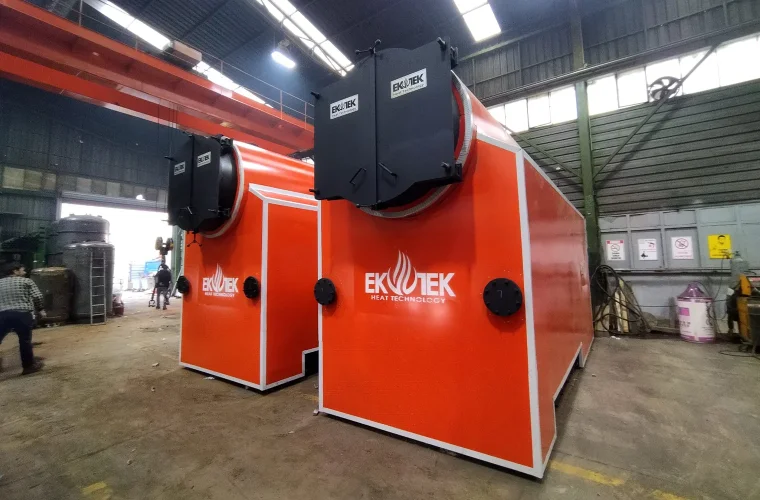

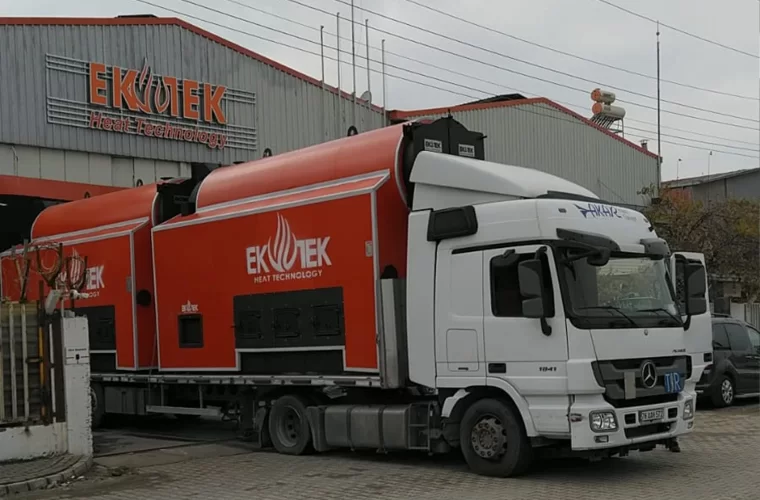

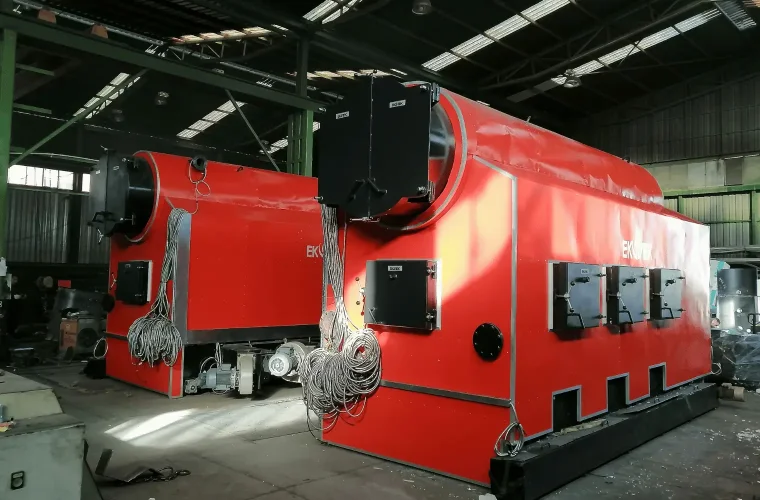

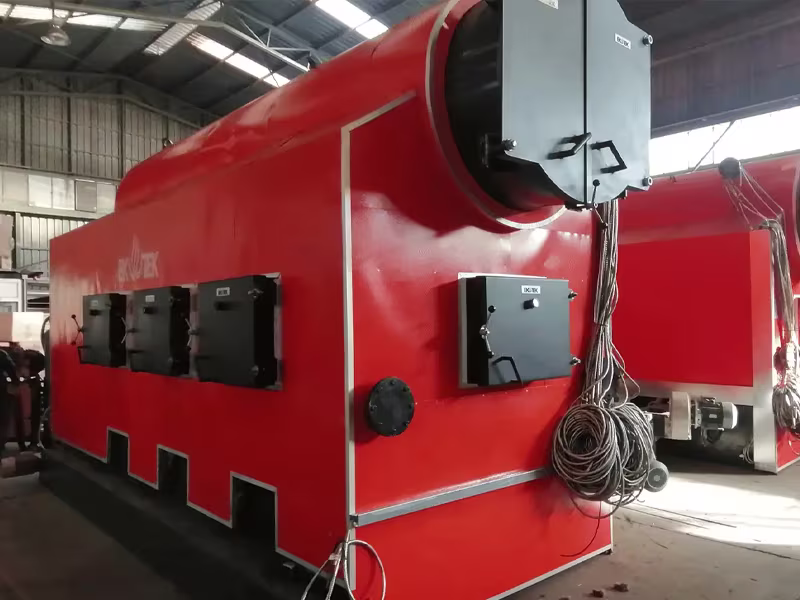

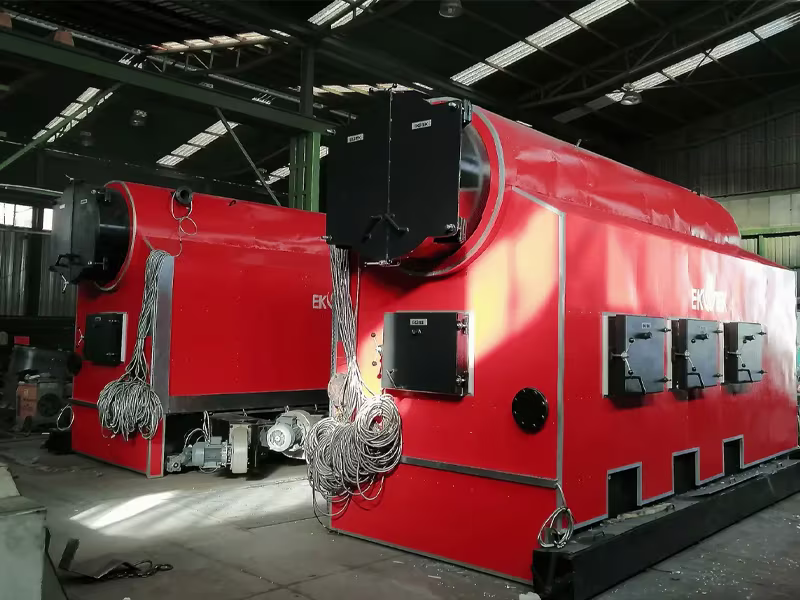

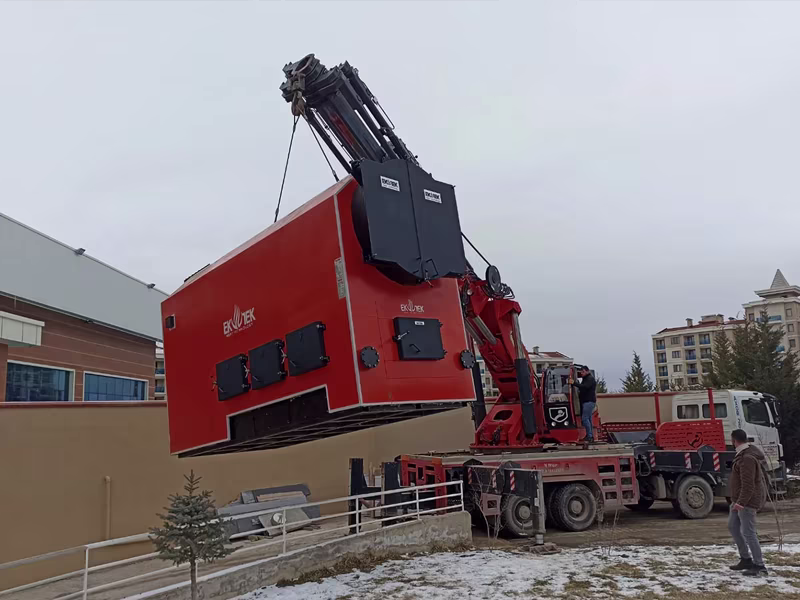

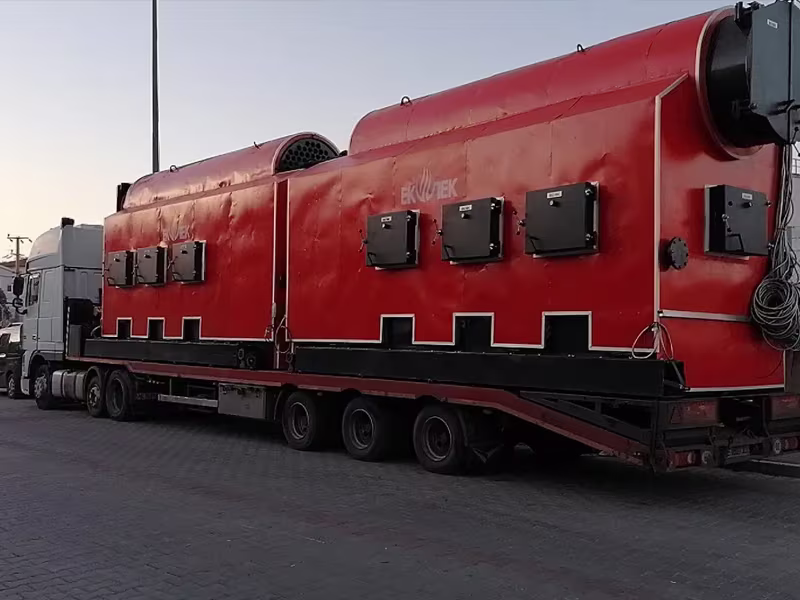

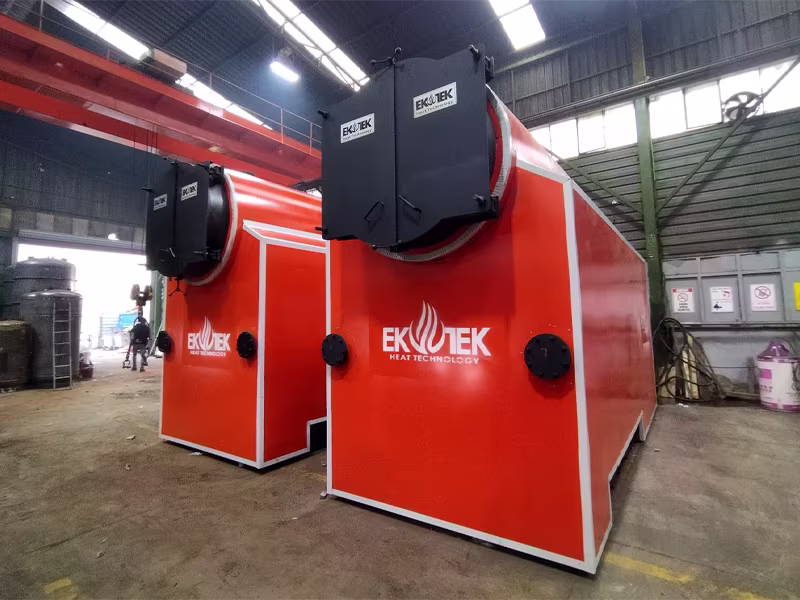

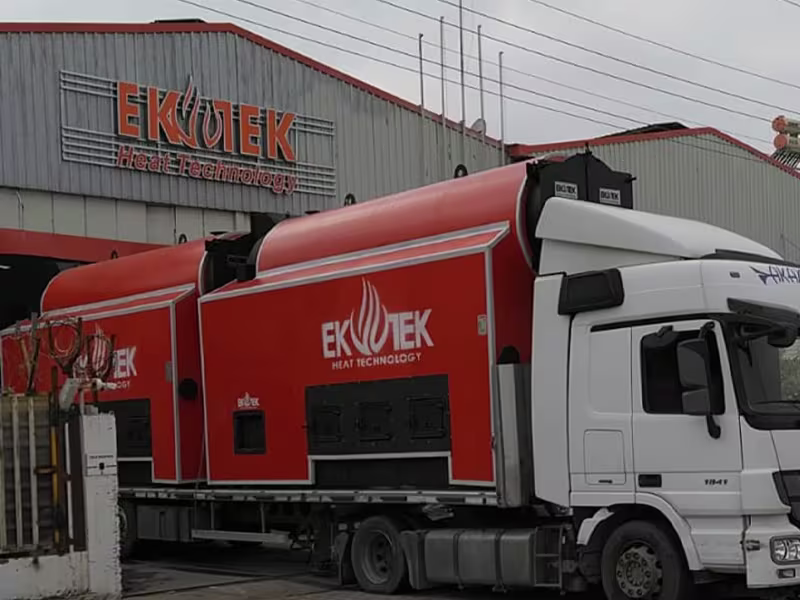

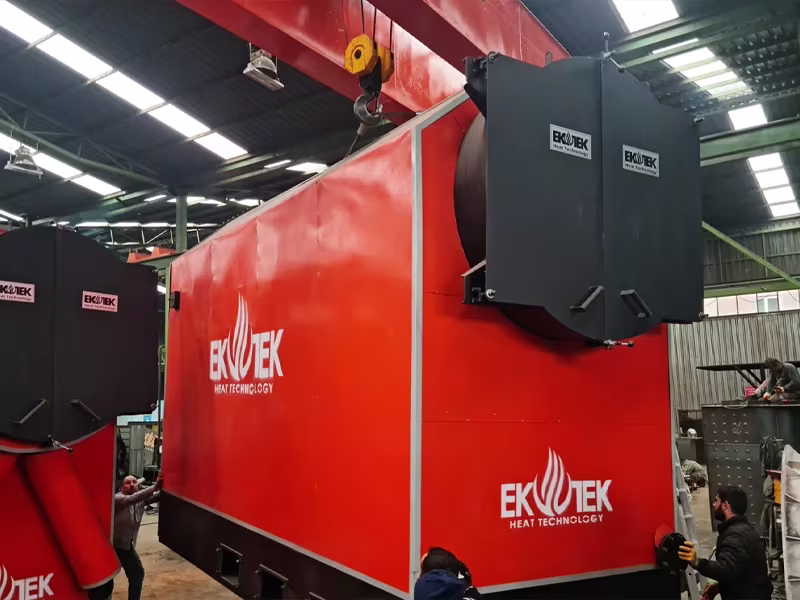

Hybrid Series - Solid Fuel Hot Water Boiler

Hybrid Series solid fuel hot water boiler is designed to burn lignite coal, olive pomace, nut shells, and other granular fuels while providing high efficiency.

The air provided by the fan for primary combustion ensures a controlled and clean, smokeless burn. Compared to standard boiler designs, it offers up to 15% fuel savings. It is safe, with no risk of explosion due to the buildup of combustible gases.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Heat Capacity
    500,000 kcal/h - 10,000,000 kcal/h
  • Operating Temperature
    60°C - 85°C
  • Design Type
    Horizontal – 5 Pass, Water-tube type
  • Fuel Types
    Lignite Coal, Hard Coal, Coal Dust, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Wood Dust, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells, Cherry Pits, Walnut Shells, Straw, Sunflower, Compressed Bio Pellets, Pellets, Peanut Shells, Almond Shells, Fruit Pulp, Chicken Manure, Rice Husk
  • Combustion System
    Bottom-fed, Mechanically Auger-fed - Rotating Grate or Moving Piston Grate depending on capacity
  • Control Panel
    Digital Temperature Thermostat Control
  • Flue Exit
    Rear
  • Hot Water Outlet - Return
    Flanged
  • Optional Feature
    PLC Touch Control
  • GTIP Code / HS Code
    840310900000

Our boilers operate quietly, preventing noise pollution. With its elegant appearance, it seamlessly blends into its environment. The insulation used in our boilers minimizes heat loss, resulting in fuel savings.

For our Hybrid Series solid fuel hot water boilers, antifreeze can be used optionally to prevent freezing in the system. Our boilers are designed to burn fuel with a minimum of 4,500 kcal/h (flame temperature 1200°C). For burning lower calorific value fuel, please contact our company. They are easy to install and maintain.

All products used in production are certified materials. Our boilers, produced according to TS EN 497 standards, are certified with the 97/23/EC Pressure Equipment Directive module H Full Quality Assurance. Our products are manufactured using S235 JR quality steel. Our products are made with boiler tubes produced from P235GH and higher quality steel in accordance with TS EN 10217-2 standards.
