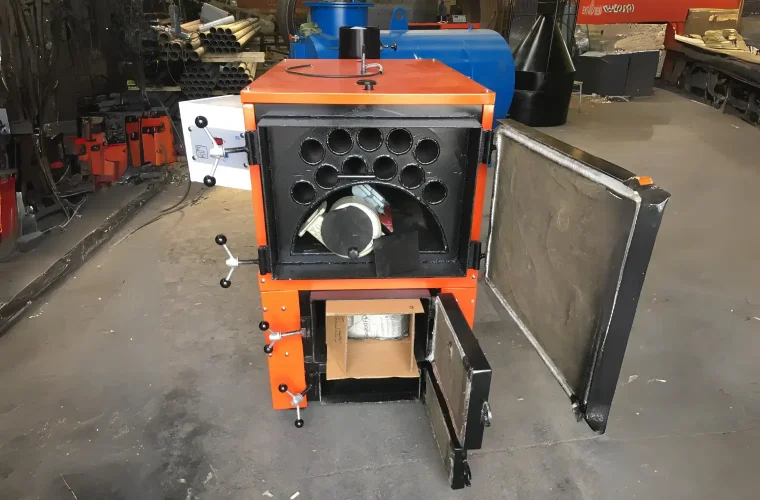

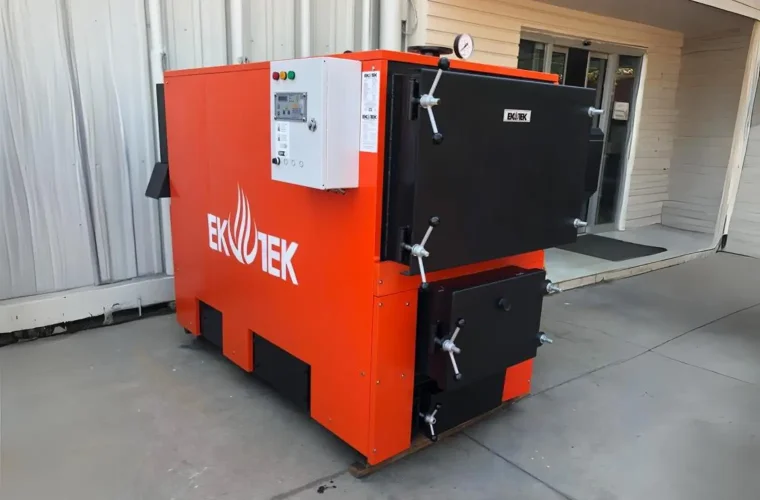

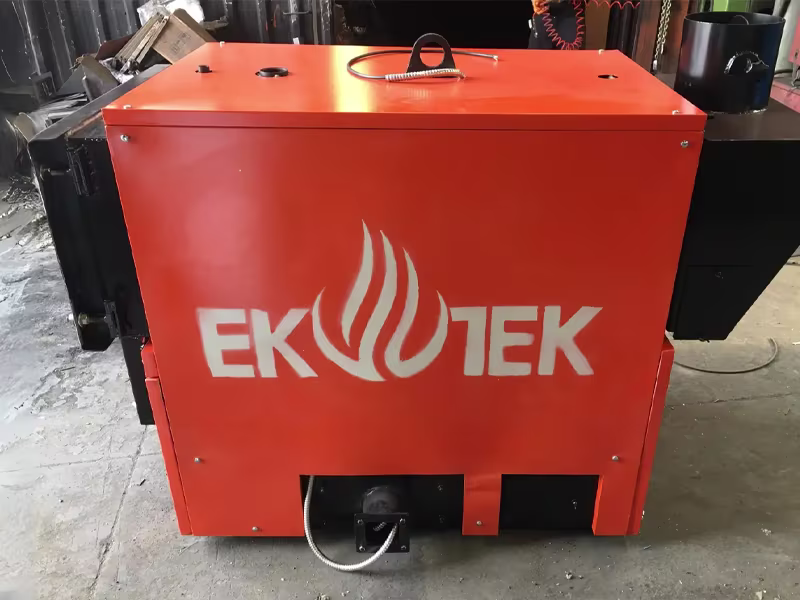

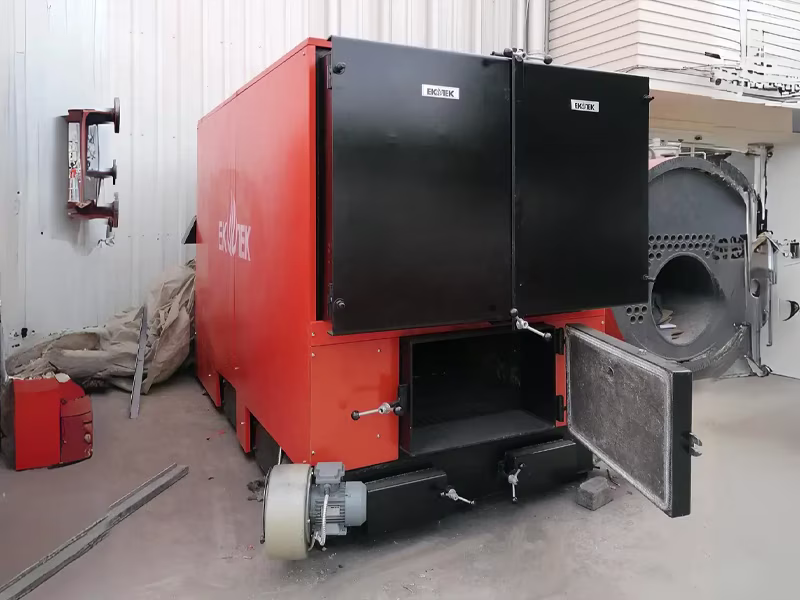

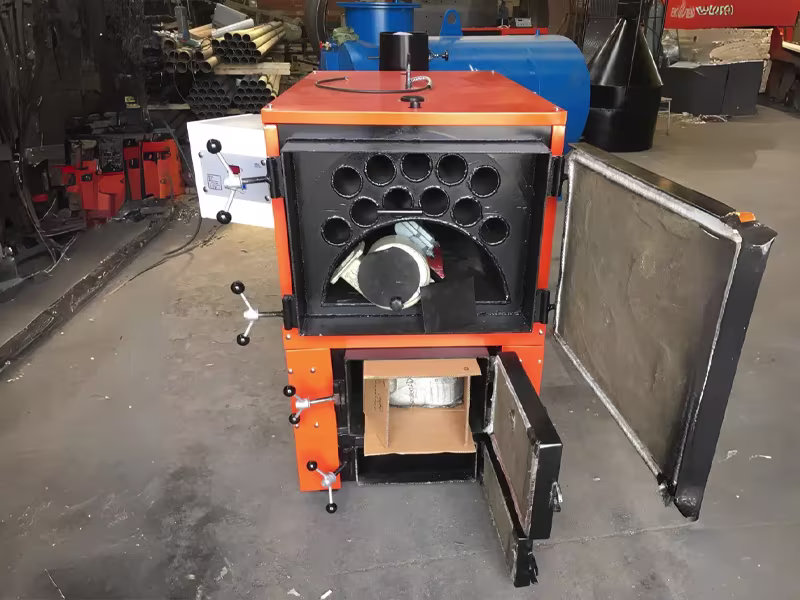

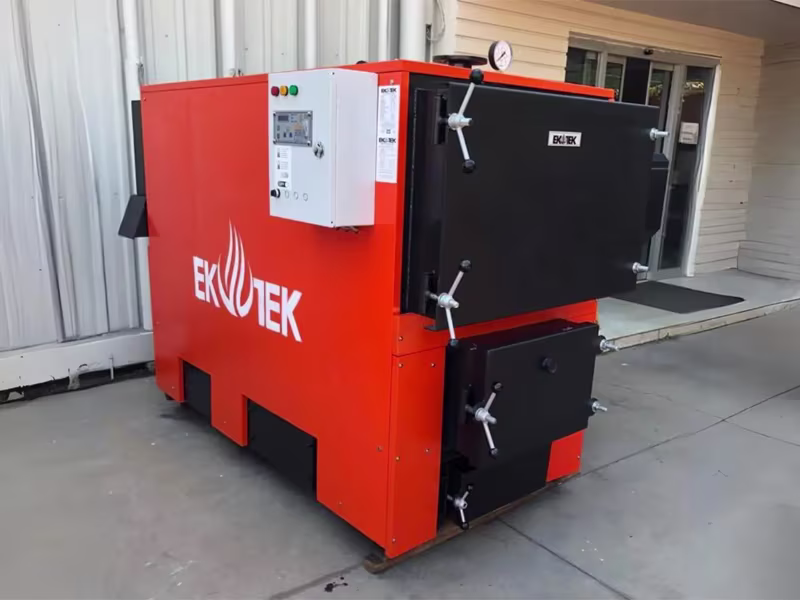

Locomotive Series - Manually Loaded Solid Fuel Hot Water Boiler
The Locomotive Series manually loaded solid fuel hot water boilers are single and double apartment central systems that can fit into the narrowest spaces.
Technical Specifications
-
Heat Capacity25,000 Kcal/h - 1,500,000 Kcal/h
-
Operating Temperature60°C - 85°C
-
Design TypeHorizontal – Floor Type – 3 Pass – Semi-cylindrical
-
Fuel TypesLignite Coal, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells
-
Combustion SystemManual fuel feeding, cast iron grate in the combustion chamber
-
Control PanelDigital temperature thermostat controlled
-
Flue ExitRear
-
Hot Water Outlet - ReturnFlanged
-
Optional FeaturePLC touch control
-
HS Code840310900000
Our boilers operate quietly, preventing noise pollution. The primary and secondary air delivered by the fan ensures controlled and clean, smokeless combustion. Thanks to its 3-pass design, the heat generated is evenly distributed across all surfaces, ensuring maximum heat transfer and fuel savings.
The fuel chamber, with its high heating surface, provides continuous burning for 1-3 days without the need for a stoker. More heat is provided with less fuel. By maintaining a constant water temperature with the thermostat control, fuel savings are maximized.
All materials used in the production of manually loaded solid fuel hot water boilers are certified. Our boilers, produced according to TS EN 497 standards, are certified with the 97/23/EC Pressure Equipment Directive module H Full Quality Assurance. Our products are manufactured using ST-37 quality steel. Our products are produced using boiler tubes made of P235GH and higher quality steel according to TS EN 10217-2 standards.
