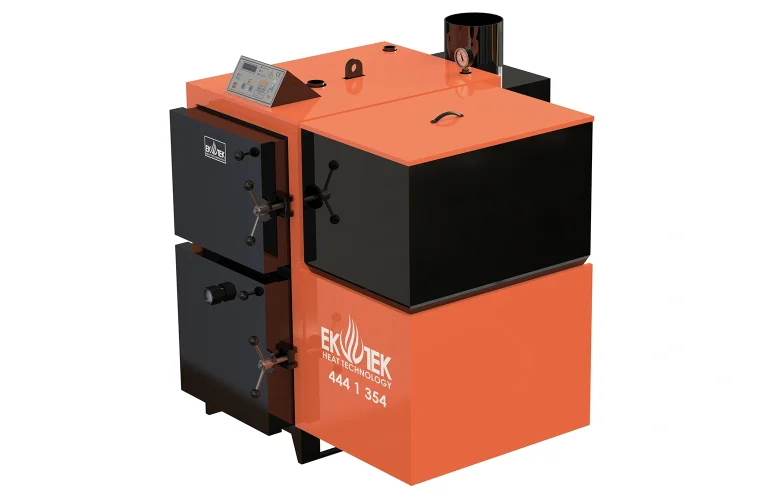

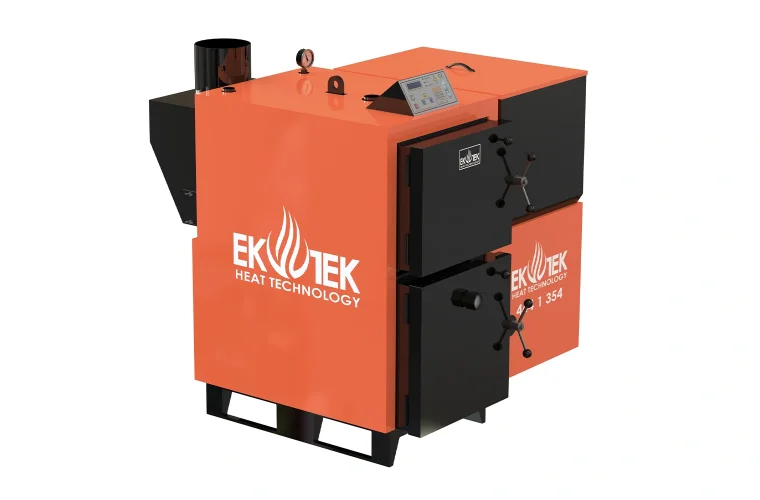

Saving Series - Solid Fuel Automatic Hot Water Boiler

The Saving Series solid fuel automatic loading hot water boiler is designed to fit into the narrowest spaces and is suitable for single and double apartment central heating systems. It efficiently burns granular fuels such as coal, olive pomace, hazelnut shells, and pine cones, providing high efficiency.

The insulation we provide minimizes heat loss and ensures fuel savings. Upon request, antifreeze can be used in our boilers to protect against the risk of freezing in the system.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Heat Capacity
    25,000 kcal/h - 60,000 kcal/h
  • Operating Temperature
    60°C - 85°C
  • Design Type
    Vertical - Floor-standing - 3-pass - Prismatic
  • Fuel Type
    Lignite Coal, Olive Pomace, Olive Pits, Wood, Wood Chips, Plywood Waste, Particleboard Pieces, Hazelnut Shells, Almond Shells
  • Combustion System
    Bottom Loading, Side Mechanical Auger
  • Control Panel
    Digital Temperature Thermostat Controlled
  • Chimney Outlet
    Rear upper
  • Hot Water Outlet - Return
    Flanged
  • GTIP Code / HS Code
    840310900000

The air delivered by the fan provides controlled, clean, and smokeless combustion. The fuel is fed from the bottom, ensuring direct contact of the flame with the combustion chamber. This allows for more heating with less fuel.

Thanks to its three-pass design, the heat obtained is distributed evenly across all surfaces, ensuring maximum heat transfer and fuel savings. With capacities ranging from 25,000 to 60,000 KCAL/h, it offers ease of use for individual heating needs. By maintaining a constant water temperature with the thermostat control, fuel savings are maximized.
Our solid fuel automatic loading hot water boilers are designed for fuels with a minimum of 4,500 kcal/h (flame temperature 1200°C). Please contact us if you need to burn lower-calorific fuels.

All products used in production are certified materials. Our boilers are manufactured according to TS EN 497 standards and are certified with the 97/23/EC Pressure Equipment Directive Module H Full Quality Assurance. Our products are made from S 235 JR grade steel and are produced using boiler tubes made of P235GH steel or higher quality steel according to TS EN 10217-2 standards.
