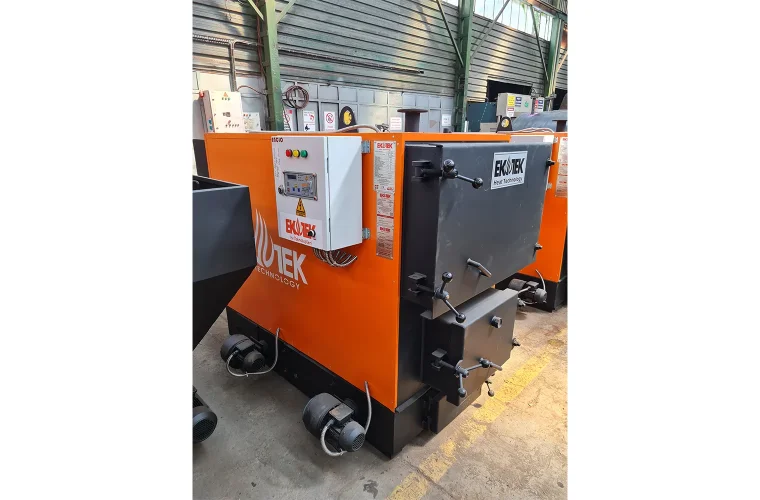

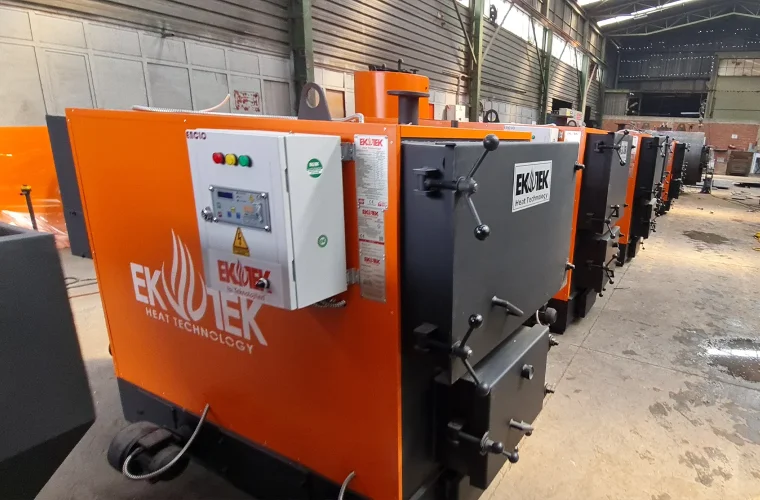

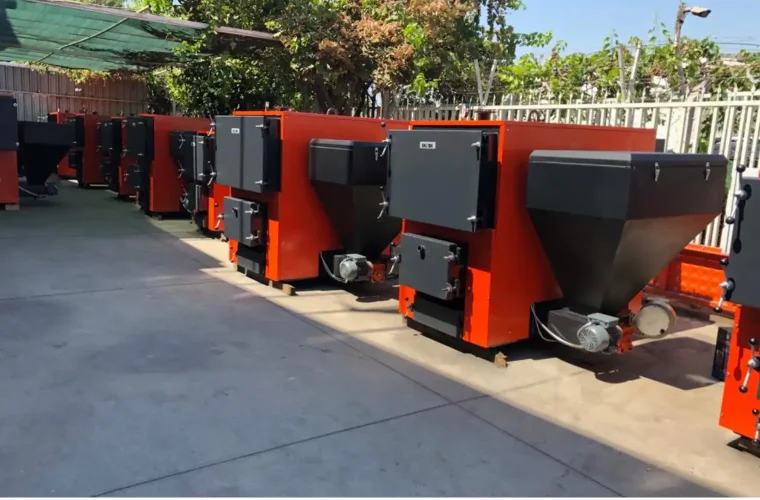

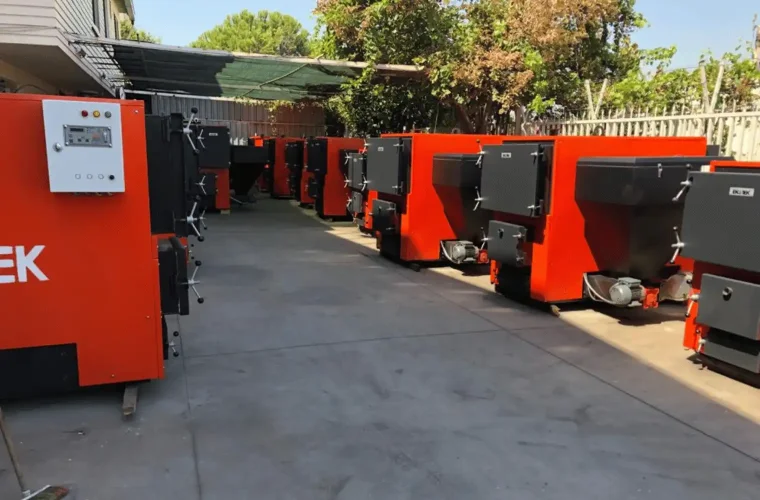

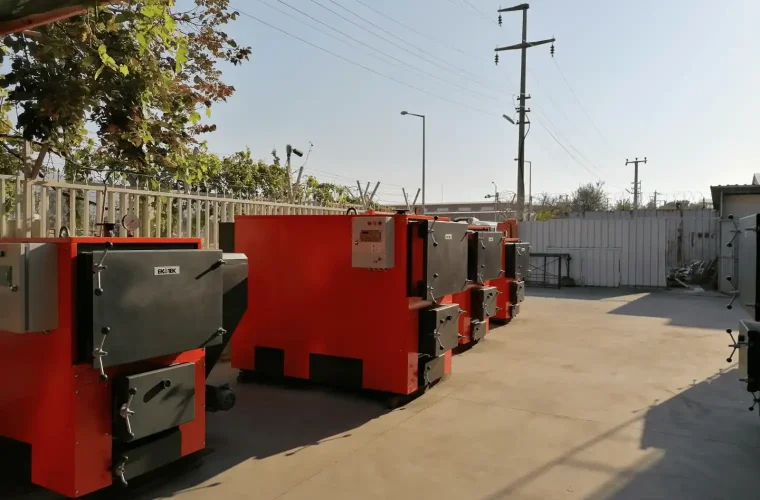

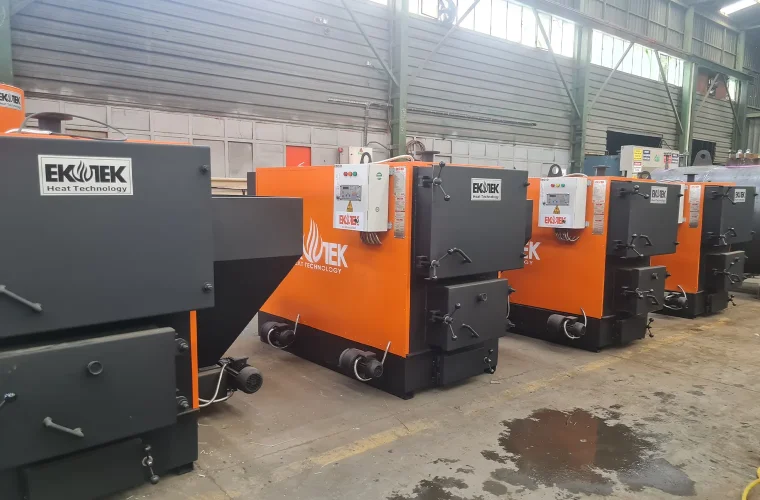

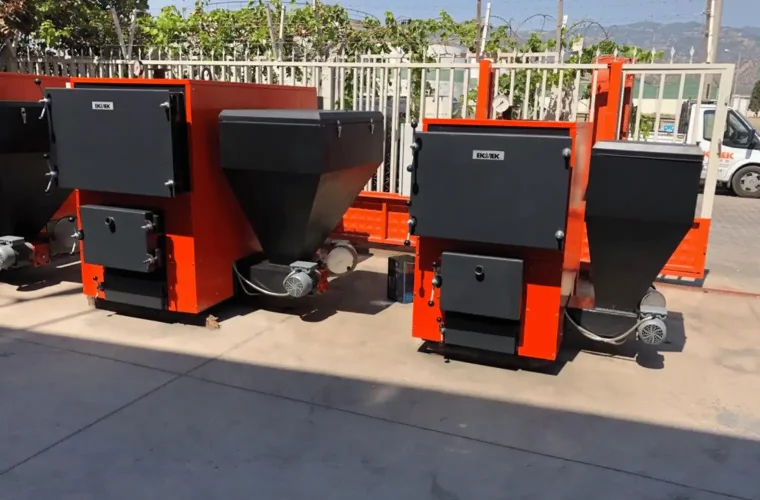

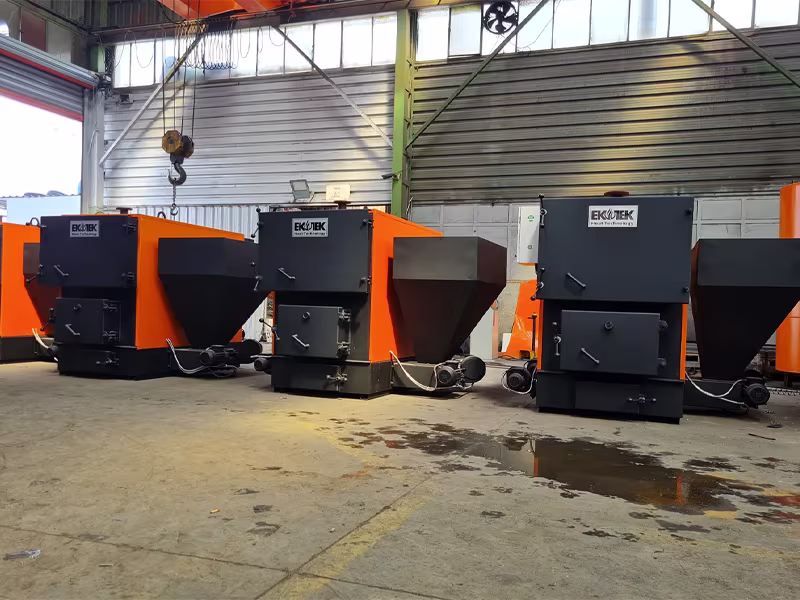

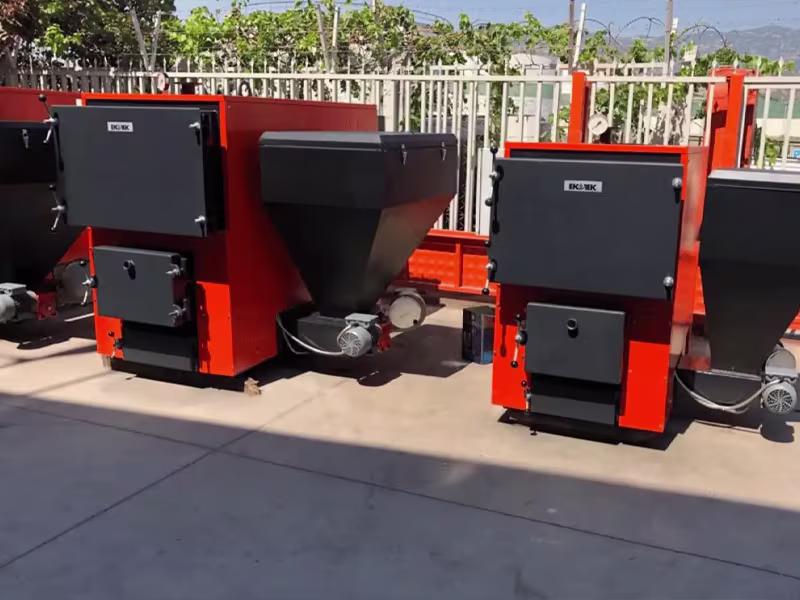

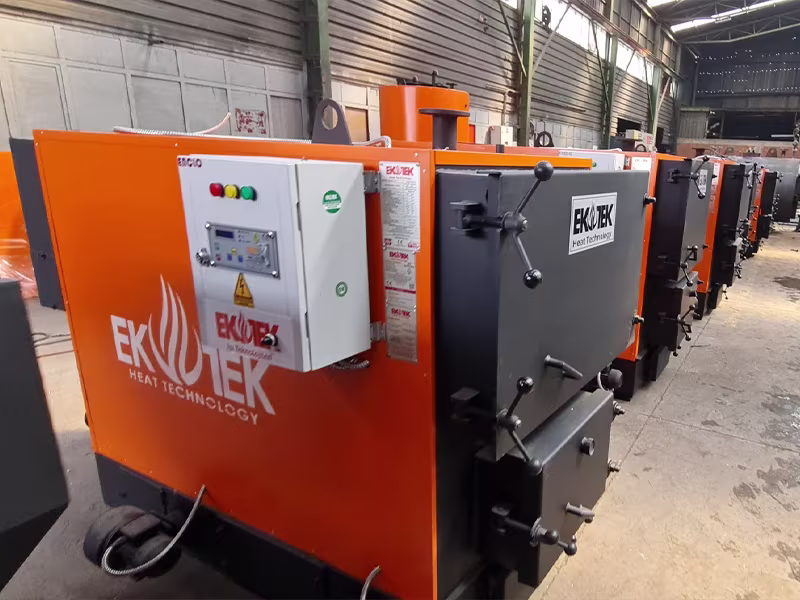

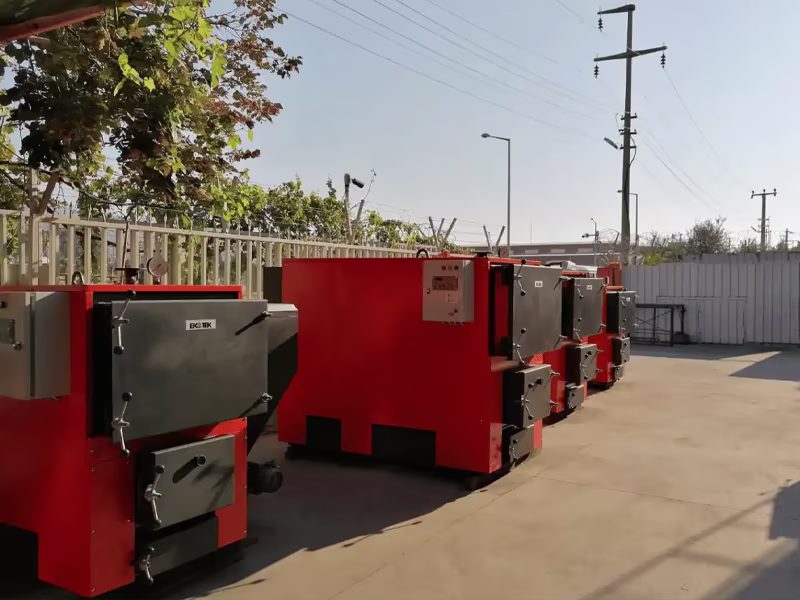

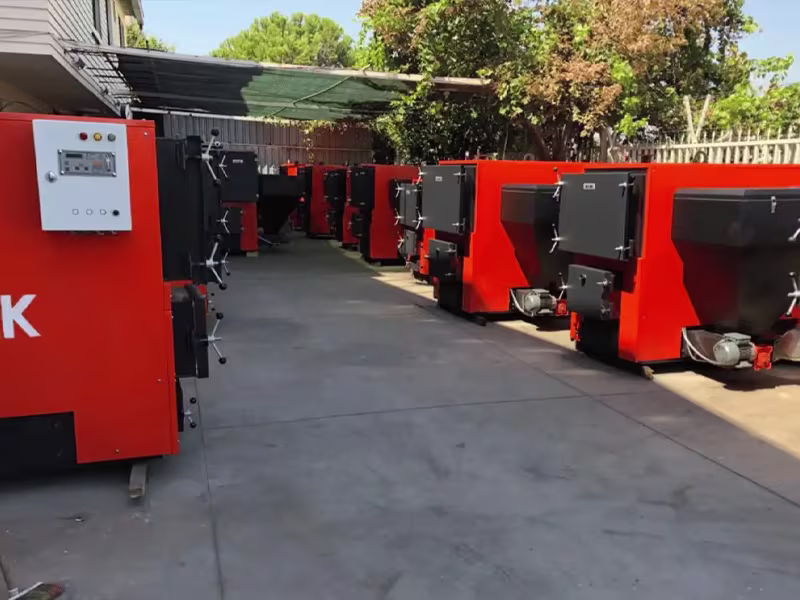

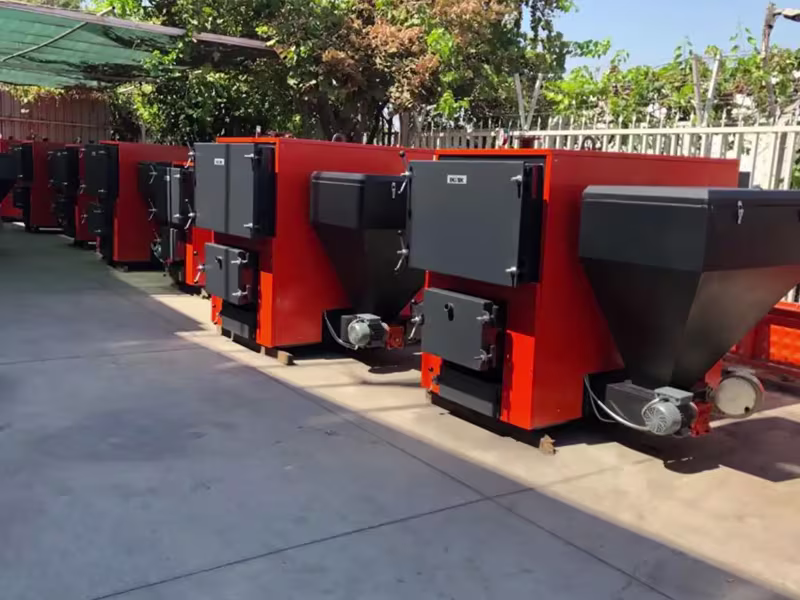

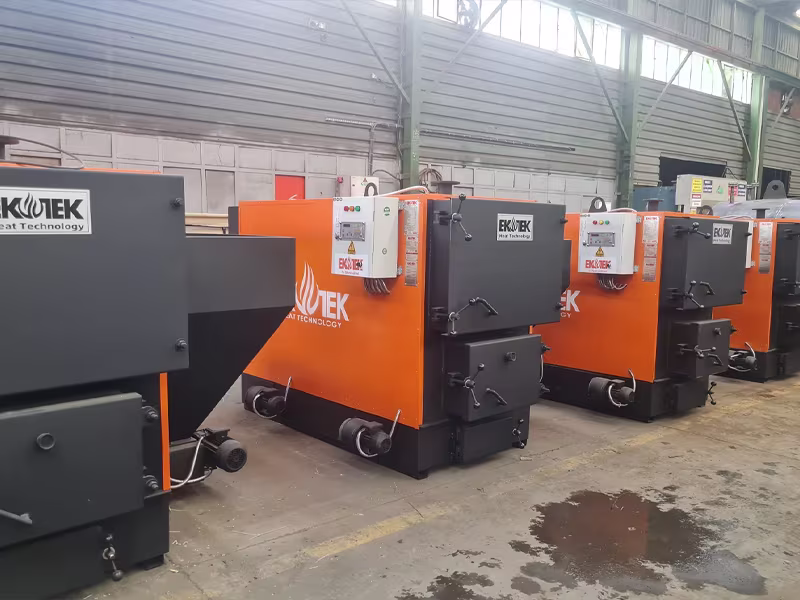

Torch Series - Solid Fuel Hot Water Boiler
The Torch Series solid fuel hot water boiler is designed for single and double apartment central systems that can fit into narrow spaces. These boilers can efficiently burn granular fuels such as coal, olive pomace, and nut shells.
Technical Specifications
-
Heat Capacity80,000 kcal/h - 3,000,000 kcal/h
-
Operating Temperature60°C - 85°C
-
Design TypeHorizontal – Floor type – 3 Pass – Semi-cylindrical
-
Fuel TypesLignite Coal, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Nut Shells
-
Combustion SystemBottom-fed, Side Mechanical Auger - Rotating Grate or Moving Piston Grate depending on capacity
-
Control PanelDigital Temperature Thermostat Controlled
-
Flue ExitRear
-
Hot Water Outlet - ReturnFlanged
-
Optional FeaturePLC touch control
-
HS Code840310900000
Thanks to its three-pass design, the heat generated is evenly distributed across all surfaces, ensuring maximum heat transfer and fuel savings. More heat is obtained with less fuel. By maintaining a constant water temperature with the thermostat control, fuel savings can be maximized.
Our boilers are designed for fuels with a minimum of 4,500 kcal/h (flame temperature 1200°C). For burning lower calorific fuel, please contact our company.
All materials used in the production are certified. Our boilers, produced in compliance with TS EN 497 standards, are certified with the 97/23/EC Pressure Equipment Directive Module H Full Quality Assurance. Our products are manufactured using S235 JR quality steel. Our products are produced using boiler tubes made of P235GH and higher quality steel according to TS EN 10217-2 standards.
