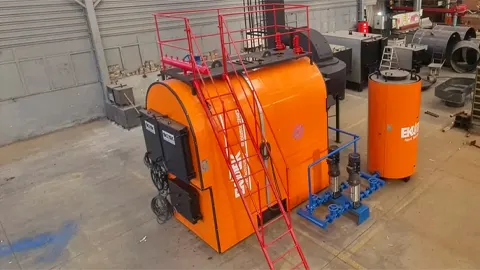

Wood Fired Steam Boiler

Wood fired steam boiler is a machine in which the heat generated by the combustion of wood passes water from the liquid phase to the gas phase in a controlled manner. These boilers are a device used to create steam by applying heat energy to water. Wood, a renewable energy source, stands out as an alternative to the environmental problems caused by fossil fuels.

Wood Fired Steam Boiler
certificates

Features of Wood Fired Steam Boilers:

Use of Renewable Energy:
Wood is considered a continuously renewable resource. This helps wood-fired boilers significantly reduce their carbon footprint.
High Efficiency: Wood-fired steam boilers manufactured by Ekotek Heat Technologies offer high energy efficiency thanks to modern design and manufacturing techniques.
Versatile Fuel Option: All kinds of wood waste (wood chips, sawdust, etc.) can be used as fuel in these boilers, which provides advantages in waste management.
Long Life and Durability: Thanks to its robust structure, it offers a long-lasting use. In addition, its performance can be maintained for many years with regular maintenance.
Environment Friendly: Its impact on the environment is minimized with low emission values. This is a great advantage in complying with environmental regulations.

Wood Fired Steam Boiler Products

Our product series can be customized according to your needs. For details, review our products or contact us through the request form

Wood Fired Steam Boiler Technical Specifications

Series Steam Capacity Working Pressure Design Type Fuel Type Heat Capacity

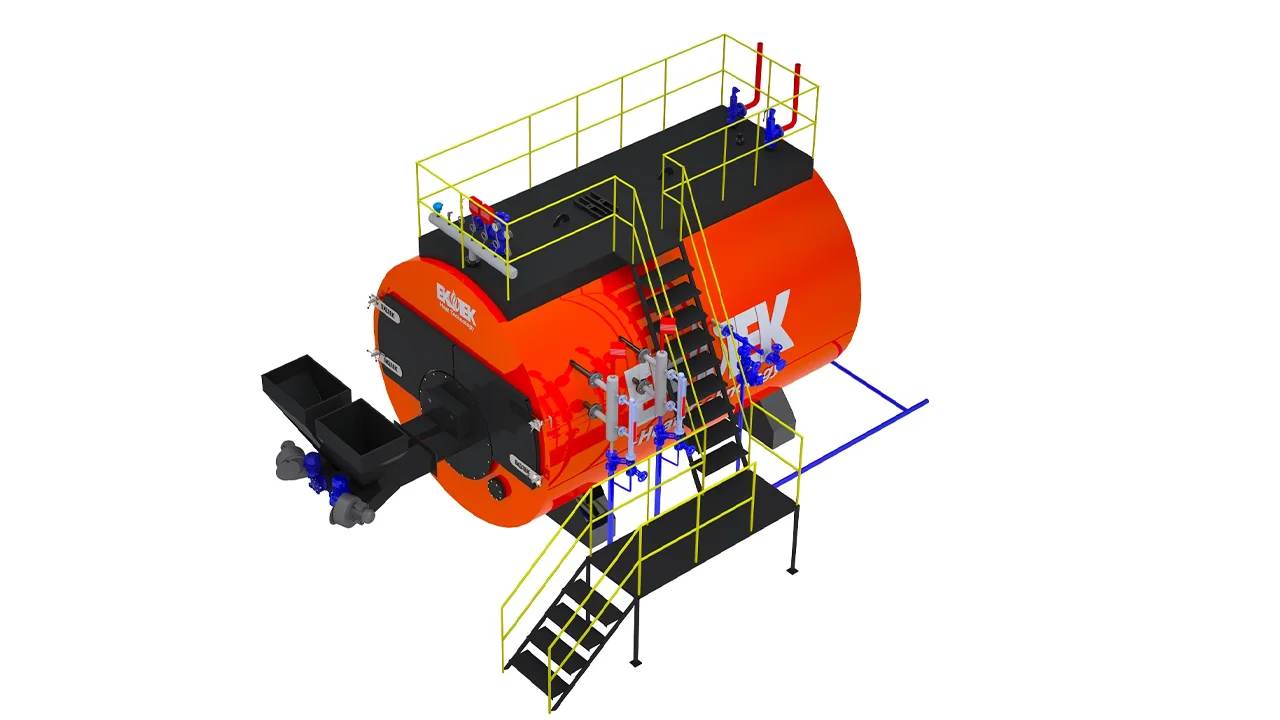

Grim Series 160 kg/h-5.600 kg/h 3 - 16 bar Fire - Smoke Tube Scotch, Scotch Type, 3 Pass Full Cylindrical Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk. 96.000 Kcal/h - 3.360.000 Kcal/h

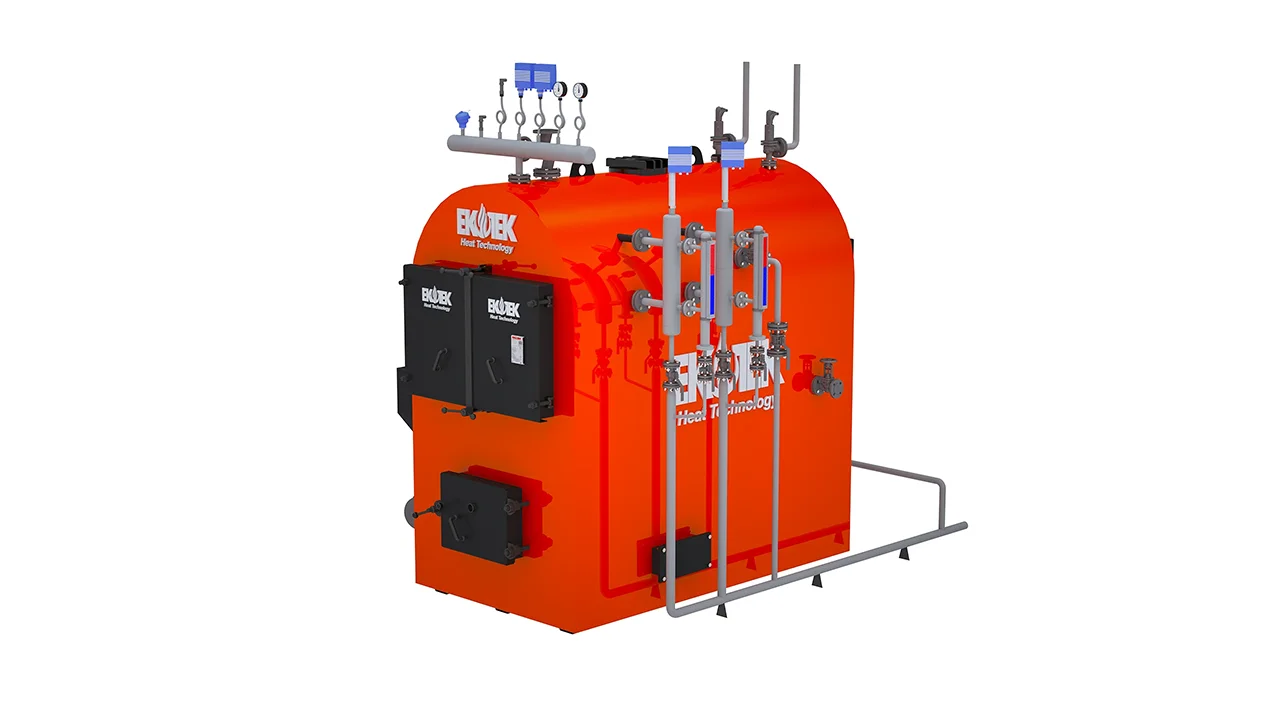

Thunderbolt Series 160 kg/h - 3200 kg/h 3 – 16 Bar Fire - Smoke Tube, Half Cylindrical, 3 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 96.000 Kcal/h - 1.920.000 Kcal/h

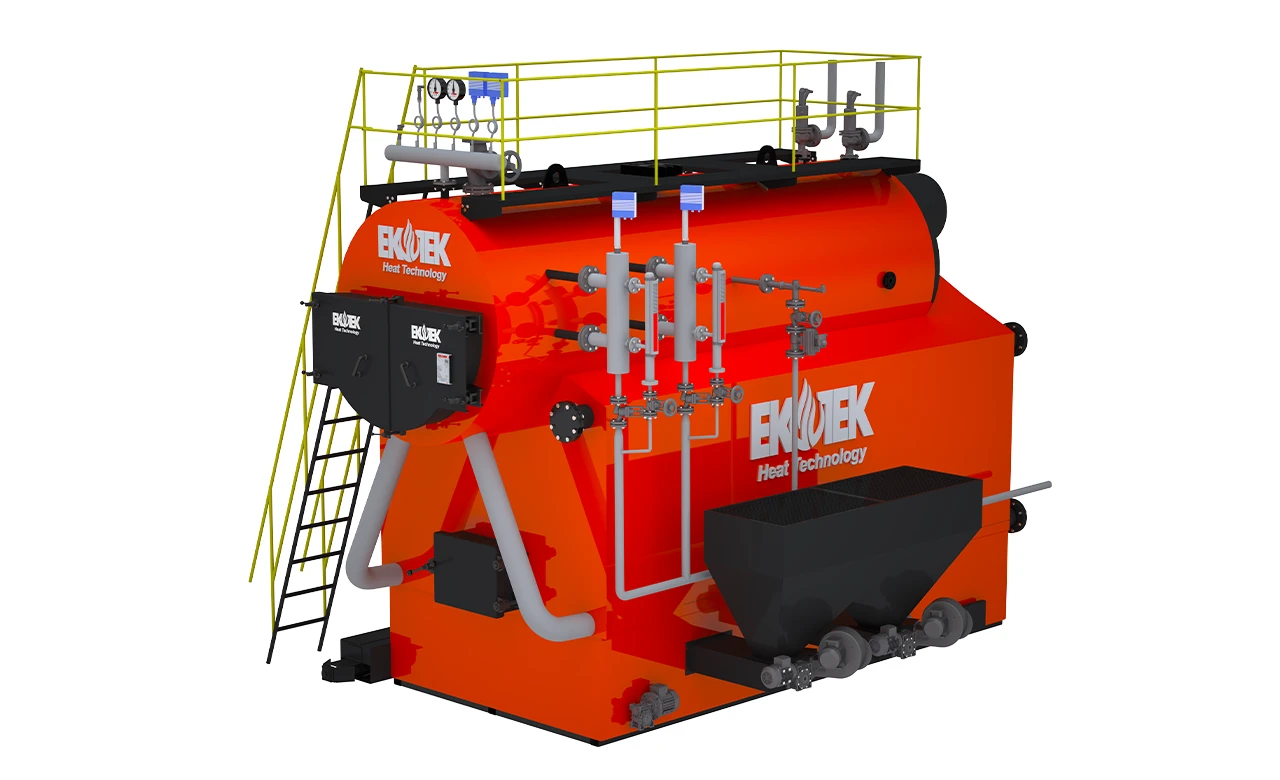

Hybrid Series 1.000 kg/h - 25.000 kg/h 3 – 25 Bar Fire - Smoke Tube, Water Tube, and Scotch Type, 5 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 600.000 Kcal/h - 15.000.000 Kcal/h

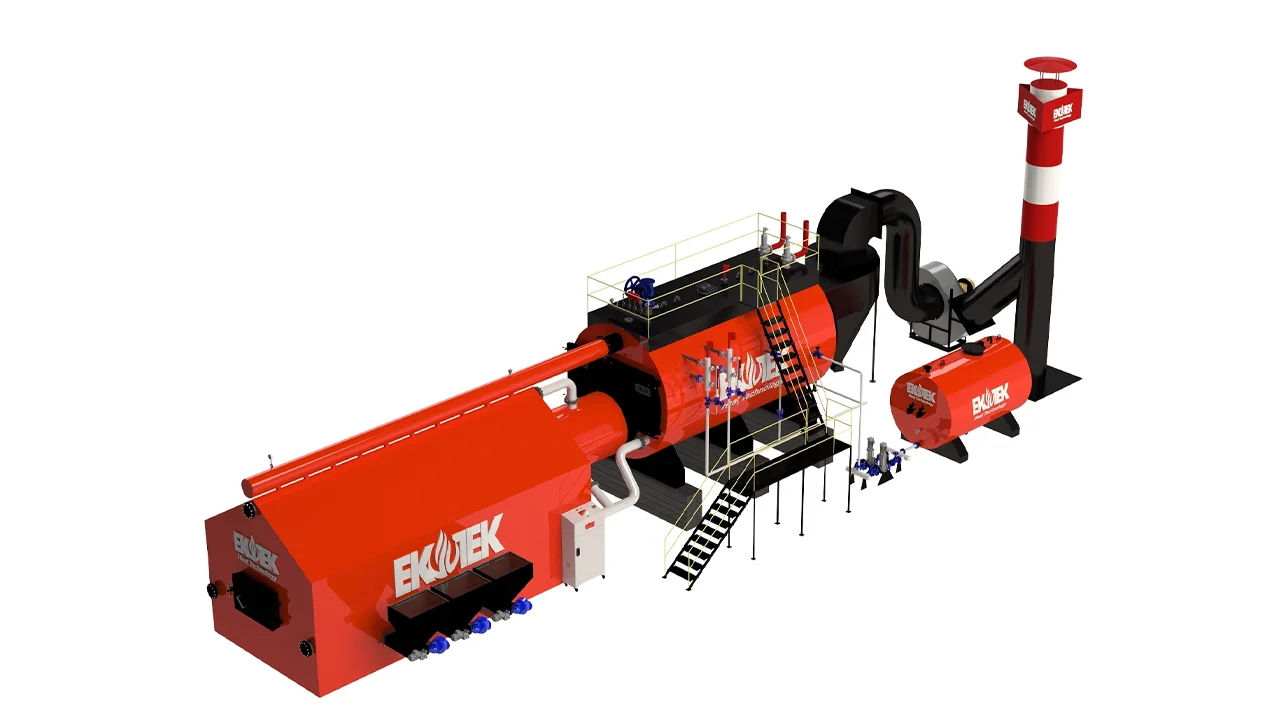

Volcano Series 3.000 kg/h - 25.000 kg/h 3 – 16 bar Fire - Smoke Tube, Water Tube, and Scotch Type - Front Furnace, 3 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 1.800.000 Kcal/h - 15.000.000 Kcal/h

Wood Fired Steam Boiler Application Areas

Ekotek Heat Technologies stands out with 20 years of experience in industrial steam and hot oil boiler manufacturing. In addition to solid, liquid/gas fuel and electric boiler production, the company also focuses on renewable energy sources. In this context, wood-fired steam boilers are an important product that supports sustainable energy use.

Industrial Production: Ideal for use in energy-intensive industries such as food, textile, paper and chemical industries.
Heating Systems: Designed to meet large-scale heating needs.
Waste Management: Converting wood waste into energy provides a double win in terms of waste management.
