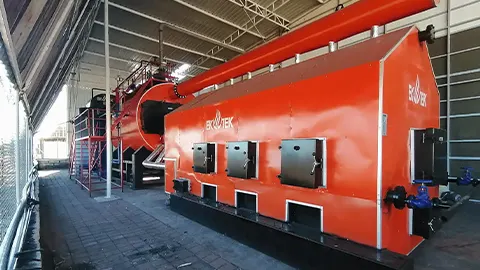

Chain Grate Steam Boiler

Chain grate steam boiler is a combustion system that provides automatic combustion control used in cases where fuel calories are low or high. The initial investment cost of this system is high but its use is long-lasting.

WhatsApp Quick Contact WhatsApp Quick Contact
Chain Grate Steam Boiler
Certificates
Hybrid Series
Hybrid Series - Solid Fuel Steam Boiler
  • Steam Production Capacity : 1.000 kg/h - 25.000 kg/h
  • Working Pressure : 3 – 25 Bar
  • Design Type : Fire-Tube, Water-Tube, and Scotch Type, 5-Pass
  • Fuel Type : Lignite Coal, Hard Coal, Coal Dust, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Hazelnut Shell, Cherry Pit, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pine Nut, Pine Nut Shell, Almond Shell, Fruit Pulp, Chicken Manure, Rice Husk
  • Heat Capacity : 600,000 Kcal/h - 15,000,000 Kcal/h
View
Solid Fuel Steam Boiler
Volcano Series
Volcano Series - Solid Fuel Fired Front Furnace Steam Boiler
  • Steam Production Capacity : 3,000 kg/h - 25,000 kg/h
  • Operating Pressure : 3 – 16 bar
  • Design Type : Fire-Tube, Water-Tube, and Scotch Type - Front Furnace 3-Pass
  • Fuel Types : Lignite, Coal, Coal Dust, Pellets, Olive Pomace, Olive Pits, Wood, Wood Chips, Wood Dust, Sawdust, Plywood Waste, Chipboard Pieces, Hazelnut Shells, Cherry Pits, Walnut Shells, Straw, Sunflower, Compressed Bio-Pellets, Oak, Peanut Shells, Almond Shells, Fruit Pulp, Chicken Manure, Rice Husk
  • Heat Capacity : 1,800,000 Kcal/h - 15,000,000 Kcal/h
View
Solid Fuel Fired Front Furnace Steam Boiler

Rotary grate steam boilers, which are preferred in industrial plants or systems with high heat capacity, provide optimum performance in the long term by reducing fuel costs. The combustion chamber is equipped with special alloy materials that ensure stable operation of the boiler system and according to the type of combustion system selected.

It is one of the solid fuel combustion systems that can burn fuels such as 0-14 mm lignite coal, rice, hazelnut coal, which generally have fuel density and weight.

The material properties used in rotary grate boilers may vary according to the type and design of the boiler. Generally, ductile iron or special production cast iron castings are used.
