Steam Boiler With Stoker

Steam Boiler With Stoker

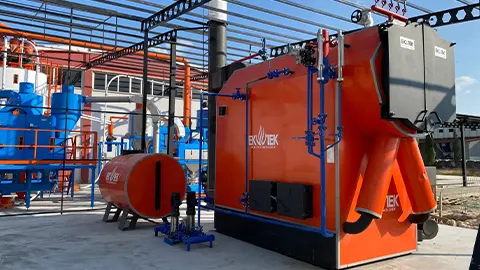

Steam Boiler With Stoker is a type of heating system that enables the transportation of solid fuels (usually coal or biomass) to the combustion chamber through a mechanical system. This system provides fuel automatically and regularly without the need for manual loading of fuel, thereby increasing efficiency and ease of use.

Need more information?
Contact us for more details about the product, solutions and services.

Steam Boiler With Stoker Products

Strong Series - Liquid Gas Fuel High Pressure Steam Boiler
The Strong Series liquid gas fuel steam boiler, offers comfortable and high-efficiency combustion performance with low counter pressure values.
  • Steam Production Capacity: 7000 kg/h - 40.000 kg/h
  • Working Pressure: 6 - 30 Bar
Grim Series - Solid Fuel High Pressure Steam Boilers
The Grim Series solid fuel Scotch type steam boiler can burn granular fuels such as lignite coal, pomace, pellets, sunflower husk, hazelnut shell, etc.
  • Steam Production Capacity: 160 kg/h-5.600 kg/h
  • Working Pressure: 3 - 16 bar
Thunderbolt Series - Semi Cylindrical Solid Fuel Steam Boilers
The Thunderbolt Series solid fuel steam boiler provides high performance in intense and continuous working conditions and sudden steam draws thanks to its wide water and steam volume
  • Steam Production Capacity: 160 kg/h - 3200 kg/h
  • Working Pressure: 3 – 16 Bar
Hybrid Series - Solid Fuel Steam Boiler
The hybrid series solid fuel steam boiler, is created by combining lignite coal, pomace, pellets, chips, sunflower husk, hazelnut shell etc. granule water tube and flame smoke tube boiler types in the same body to form a HYBRID Boiler.
  • Steam Production Capacity: 1.000 kg/h - 25.000 kg/h
  • Working Pressure: 3 – 25 Bar
Volcano Series - Solid Fuel Steam Boiler
In our Volcano Series solid fuel front furnace steam boilers, in order to provide a sufficient heat transfer area for solid fuel combustion, they are designed by adding a front furnace made of a water tube bundle in front of a traditional 3-pass Scotch type smoke/flame tube steam boiler.
  • Steam Production Capacity: 3.000 kg/h - 25.000 kg/h
  • Working Pressure: 3 – 16 bar

Steam Boiler With Stoker Technical Specifications

Series Steam Capacity Working Pressure Design Type Fuel Type Heat Capacity
Strong Series 7000 kg/h - 40.000 kg/h 6 - 30 Bar Water Tube Liquefied Natural Gas, Propane, Compressed Natural Gas, Natural Gas, Liquefied Petroleum Gas, Biogas, Diesel Fuel, Diesel Fuel, Fuel Oil 4.500.000 Kcal/h - 25.000.000 Kcal/h
Grim Series 160 kg/h-5.600 kg/h 3 - 16 bar Fire - Smoke Tube Scotch, Scotch Type, 3 Pass Full Cylindrical Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk. 96.000 Kcal/h - 3.360.000 Kcal/h
Thunderbolt Series 160 kg/h - 3200 kg/h 3 – 16 Bar Fire - Smoke Tube, Half Cylindrical, 3 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 96.000 Kcal/h - 1.920.000 Kcal/h
Hybrid Series 1.000 kg/h - 25.000 kg/h 3 – 25 Bar Fire - Smoke Tube, Water Tube, and Scotch Type, 5 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 600.000 Kcal/h - 15.000.000 Kcal/h
Volcano Series 3.000 kg/h - 25.000 kg/h 3 – 16 bar Fire - Smoke Tube, Water Tube, and Scotch Type - Front Furnace, 3 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 1.800.000 Kcal/h - 15.000.000 Kcal/h

Advantages of Stoker-Fired Steam Boilers

  • Energy Efficiency: The automatic fuel feeding system allows for more controlled and efficient combustion.
  • Easy to Use: Provides operational ease as it does not require manual fuel loading.
  • Environmental Impact: When properly adjusted, it produces fewer emissions and reduces environmental impact.
