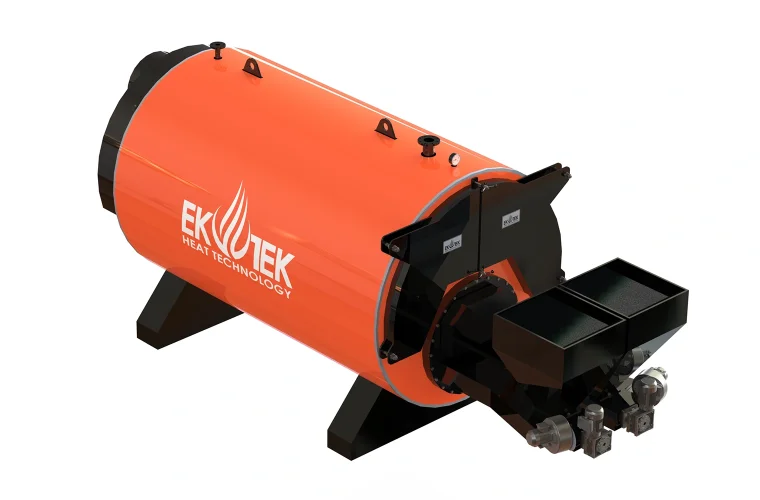

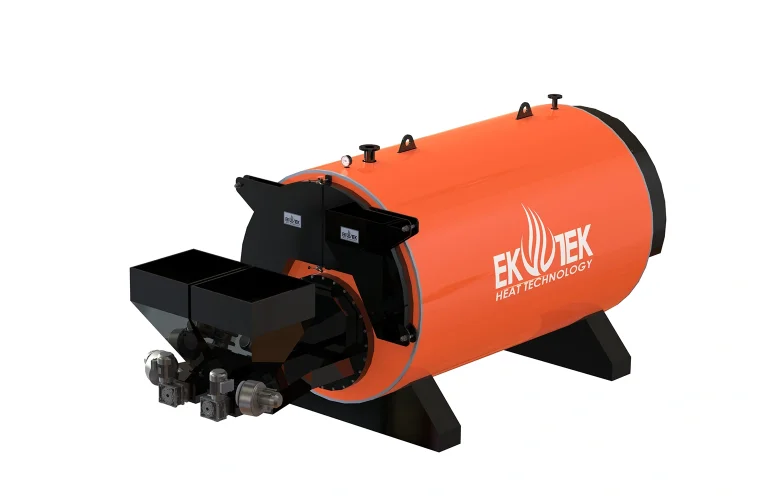

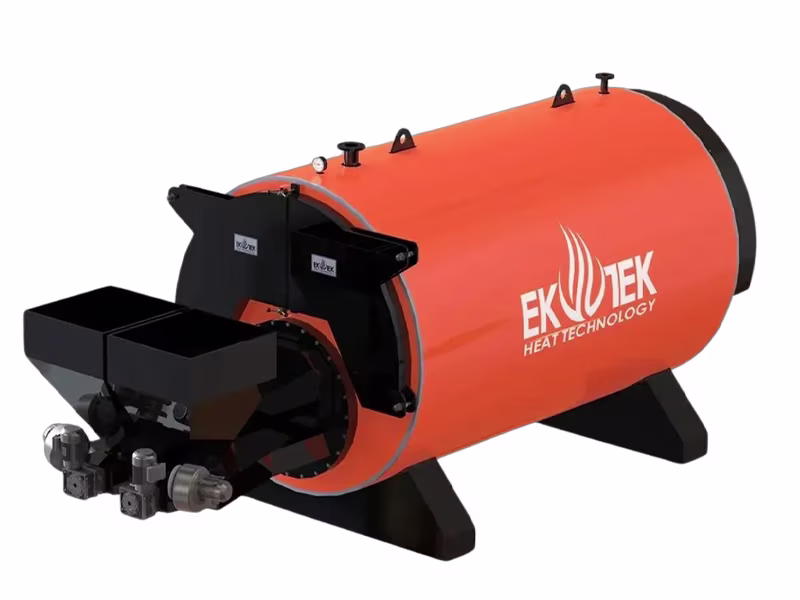

Monster Series - Scotch Type Solid Fuel Hot Water Boiler

Monster Series Scotch type solid fuel hot water boiler is designed to fit into the tightest spaces and is capable of burning central heating system fuels such as coal, olive pomace, and nut shells, providing high efficiency.

With the help of a fan, the primary air supplied ensures controlled and clean, smokeless combustion. It is safe, with no risk of explosion due to combustible gas buildup. Our boilers operate quietly, preventing noise pollution.

Upon request, Ekotek Heating Technology can design these boilers as portable mobile systems. You can request information from Ekotek engineers and officials regarding this.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Heat Capacity
    700,000 kcal/h - 4,000,000 kcal/h
  • Operating Temperature
    60°C - 85°C
  • Design Type
    Horizontal - Floor-mounted - 3-pass - Fully cylindrical - Scotch type
  • Fuel Type
    Lignite Coal, Hard Coal, Pulverized Coal, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Wood Shavings, Plywood Waste, Suta Pieces, Nut Shell, Cherry Pit, Walnut Shell, Sunflower, Compressed Bio Pellets, Acorn, Peanut Shell, Almond Shell
  • Combustion System:
    Bottom-fed, Front Mechanical Auger
  • Control Panel
    Digital Temperature Thermostat Controlled
  • Flue Outlet
    Rear
  • Hot Water Inlet/Outlet
    Flanged
  • Optional Features
    PLC touch control
  • HS Code
    840310900000

Our 3-pass central system Scotch type solid fuel hot water boilers stand out with their sleek appearance and compatibility with their surroundings. They are easy to install and maintain. The insulation applied to our boilers minimizes heat losses and provides fuel savings. If desired, antifreeze can be used in the system to prevent the risk of freezing in the installation.

Our boilers are designed for fuel with a minimum calorific value of 4,500 kcal/h (flame temperature 1200°C). For burning lower-calorific fuels, please contact our company.

All materials used in production are certified. Our boilers, produced according to TS EN 497 standards, are certified with the 97/23/EC Pressure Equipment Directive Module H Full Quality Assurance. Our products are manufactured using S235 JR quality steel. The boiler tubes used in our products are made from P235GH and higher quality steel, in accordance with TS EN 10217-2 standards.
