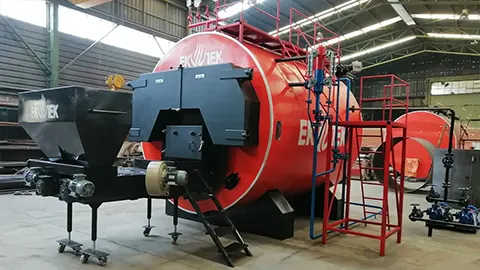

Scotch Type Steam Boiler

Scotch type steam boilers are designed to meet industrial needs, providing effective solutions that meet high-pressure requirements. These boilers stand out with high efficiency and a large water volume, particularly excelling in addressing sudden steam demands. Thanks to their fully cylindrical structures and flame-smoke tube designs, they can respond quickly to rapid steam needs.

Scotch Type Steam Boiler
certificates

Commonly preferred in industrial facilities, the efficiency of these Scotch type steam boilers is around 92%, and when used in conjunction with an economizer, this rate can reach up to 95%. They are highly suitable for automation, making their use and control convenient. Their applications are diverse, including steam turbines, steam heating systems, chemical processes, and various areas within the food industry. They are effectively used in the production of fruit juice, pasta, cheese, dairy products, large bakeries, and widespread sterilization processes in the food industry.

Scotch Type Steam Boiler Products

Our product series can be customized according to your needs. For details, review our products or contact us through the request form

Scotch Type Steam Boiler Technical Specifications

Series Steam Capacity Working Pressure Design Type Fuel Type Heat Capacity
Storm Series 175 kg/h - 32.000 kg/h 3 – 16 Bar Fire - Smoke Tube Scotch, Scotch Type, 3 Pass Liquefied Natural Gas, Propane, Compressed Natural Gas, Natural Gas, Liquefied Petroleum Gas, Biogas, Diesel Fuel, Diesel Fuel, Fuel Oil. 125.000 Kcal/h - 20.000.000 Kcal/h
Grim Series 160 kg/h-5.600 kg/h 3 - 16 bar Fire - Smoke Tube Scotch, Scotch Type, 3 Pass Full Cylindrical Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk. 96.000 Kcal/h - 3.360.000 Kcal/h
Hybrid Series 1.000 kg/h - 25.000 kg/h 3 – 25 Bar Fire - Smoke Tube, Water Tube, and Scotch Type, 5 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 600.000 Kcal/h - 15.000.000 Kcal/h
Volcano Series 3.000 kg/h - 25.000 kg/h 3 – 16 bar Fire - Smoke Tube, Water Tube, and Scotch Type - Front Furnace, 3 Pass Lignite Coal, Bituminous Coal, Powdered Coal, Pellet, Prina, Olive Kernel, Wood, Wood Chips, Wood Powder, Wood Shavings, Plywood Waste, Chipboard Parts, Hazelnut Shell, Cherry Seed, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pellet, Pistachio Shell, Almond Shell, Fruit Pomace, Chicken Manure, Rice Husk 1.800.000 Kcal/h - 15.000.000 Kcal/h

To obtain detailed information about Scotch type steam boiler prices and varieties, contact our expert team immediately.
