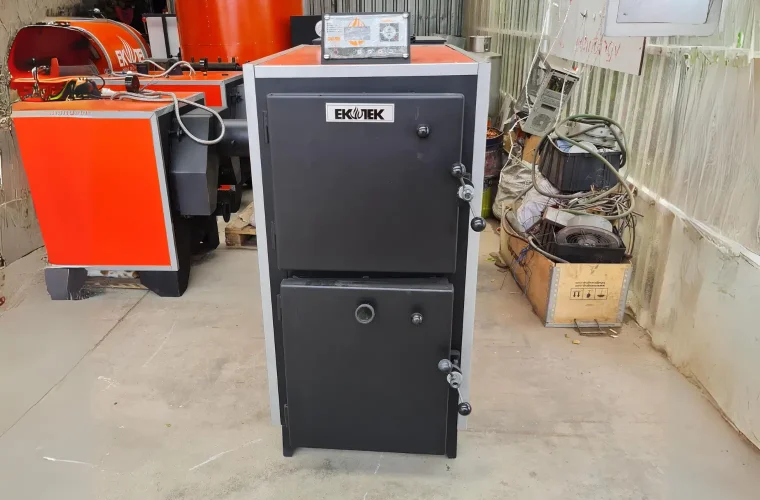

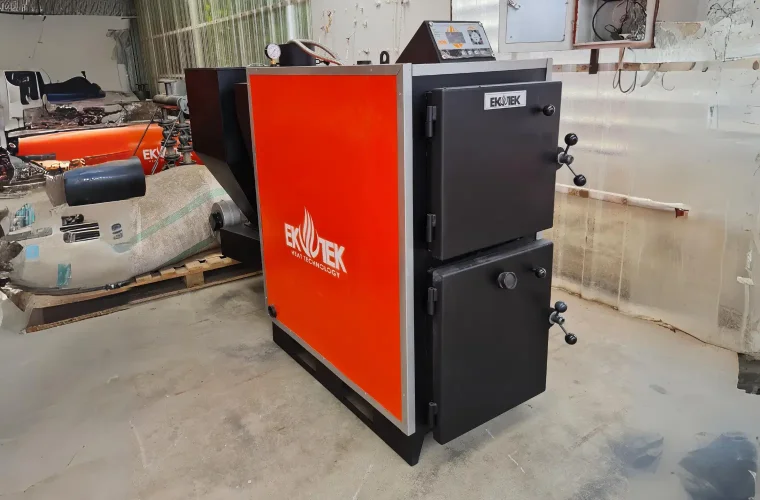

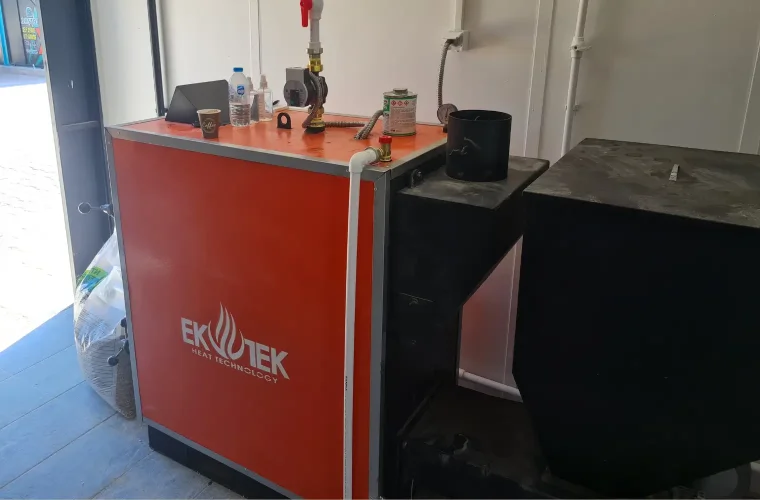

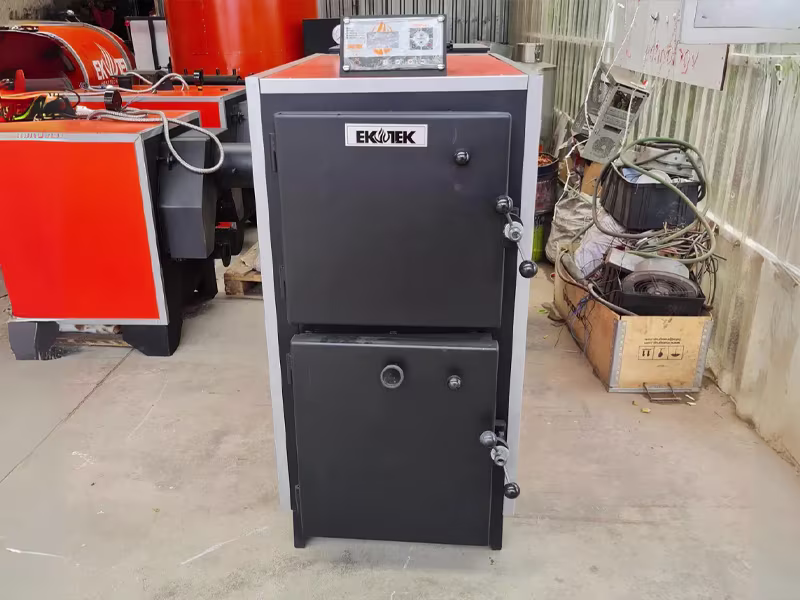

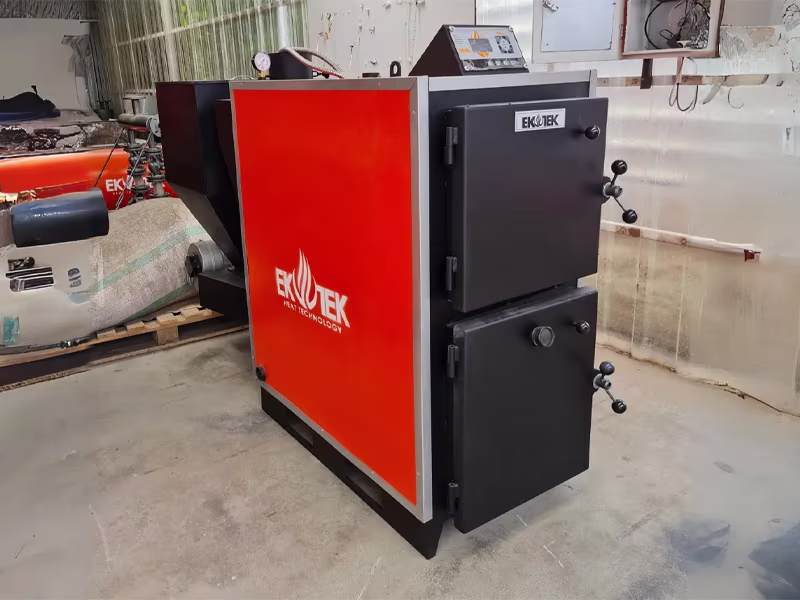

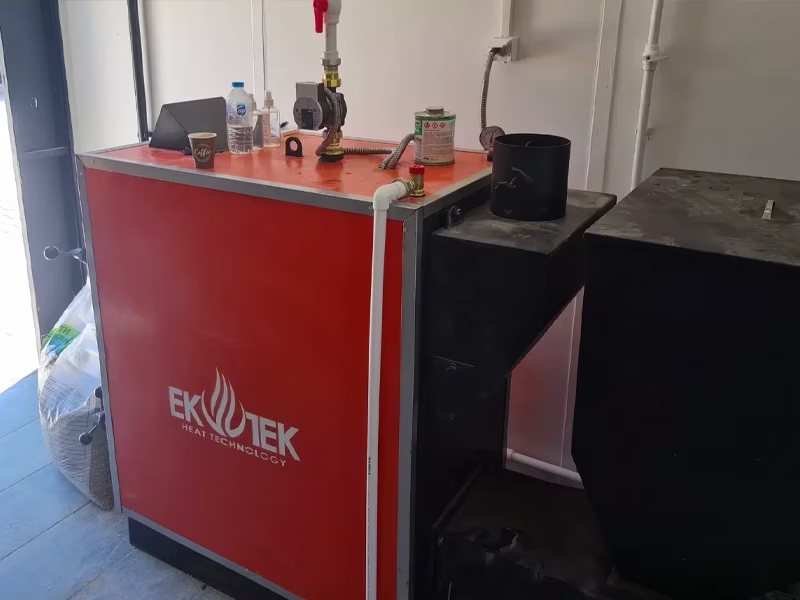

Ekopel Series - Solid Fuel Hot Water Boiler

Ekopel Series solid fuel hot water boiler, with its 3-pass design that fits into the narrowest spaces, evenly distributes the heat obtained across all surfaces, ensuring maximum heat transfer and fuel savings.

Our boilers, which can burn granular fuels such as pellets, nut shells, and lignite coal, operate quietly, avoiding noise pollution. They provide more heating with less fuel. The water temperature is kept constant with the digital control panel, maximizing fuel savings.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Heat Capacity
    80,000 kcal/h - 1,500,000 kcal/h
  • Operating Temperature
    60°C - 85°C
  • Design Type
    Horizontal - Floor-standing - 3-pass - Semi-cylindrical
  • Fuel Type
    Lignite Coal, Pellets, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Wood Shavings, Plywood Waste, Chipboard Pieces, Nut Shells, Cherry Pits, Walnut Shells, Sunflower, Compressed Pellets - Bio Pellets, Acorns, Peanut Shells, Almond Shells
  • Combustion System
    Bottom-fed, Rear Mechanical Auger
  • Control Panel
    Digital Temperature Thermostat Control
  • Flue Outlet
    Rear Top
  • Hot Water Outlet - Return
    Flanged
  • Optional Features
    PLC Touch Control
  • HS Code
    840310900000

The Ekopel Series solid fuel hot water boilers minimize heat losses and provide fuel savings through insulation. Optional antifreeze can be used in our boilers to prevent the risk of freezing in the system.

All materials used in production are certified. Our boilers, produced in accordance with TS EN 497 standards, are certified with Module H Full Quality Assurance under the 97/23/EC Pressure Equipment Directive. Our products are manufactured using S235 JR quality sheet metal. Additionally, they are produced using boiler tubes made from P235GH and higher quality steel in compliance with TS EN 10217-2. Our boilers are designed for fuel with a minimum calorific value of 4,500 kcal/h (flame temperature 1200°C). For burning lower-calorific fuels, please contact our company.
