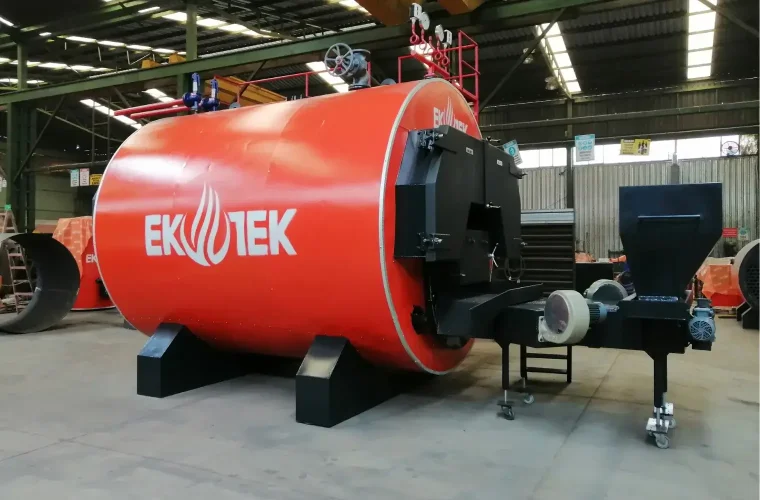

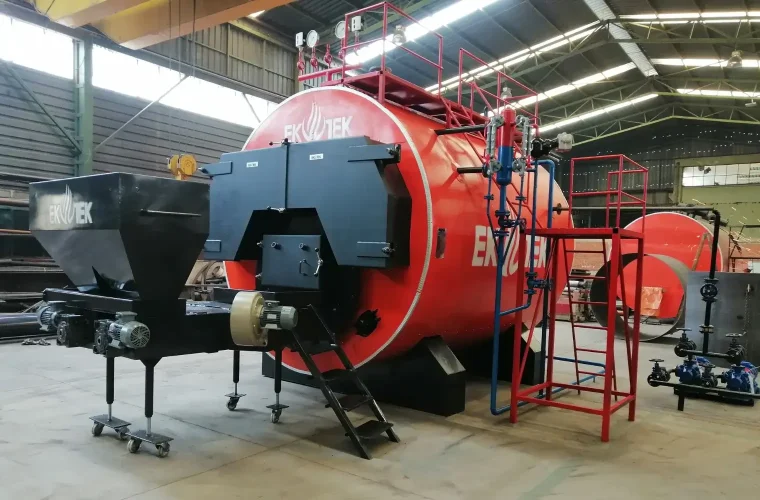

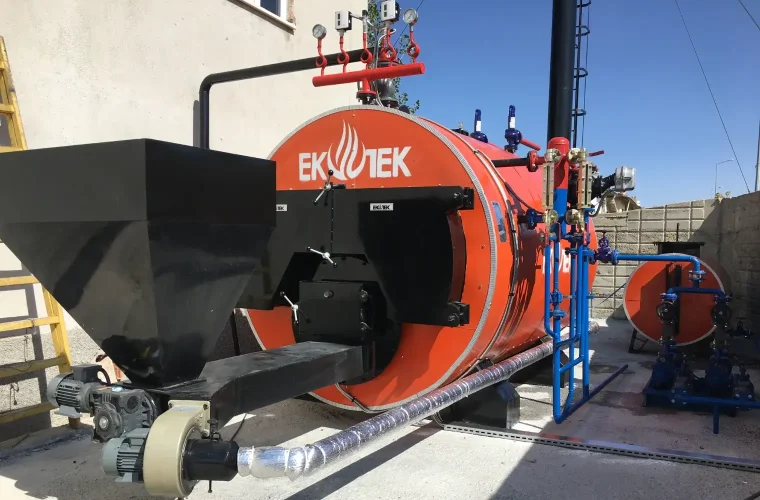

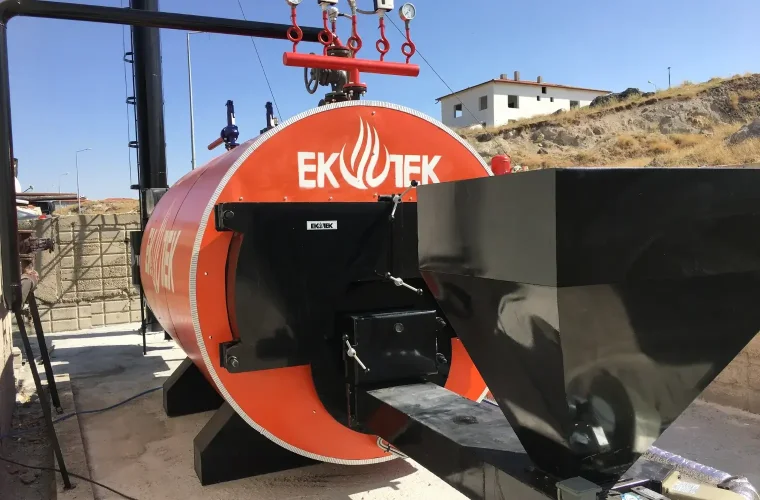

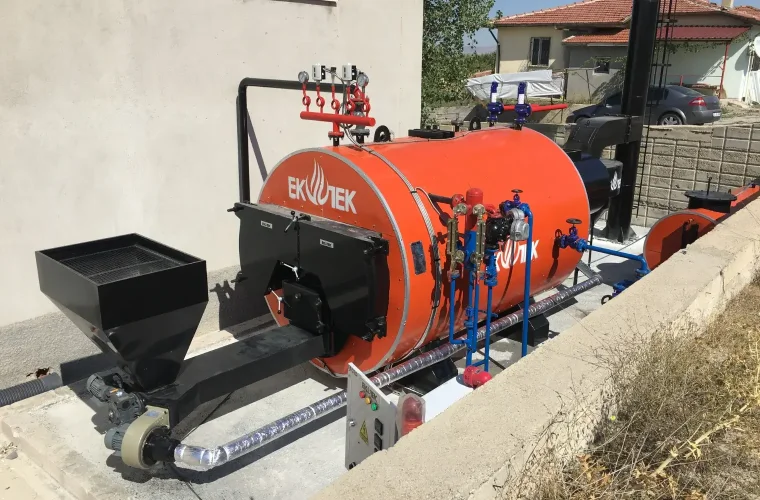

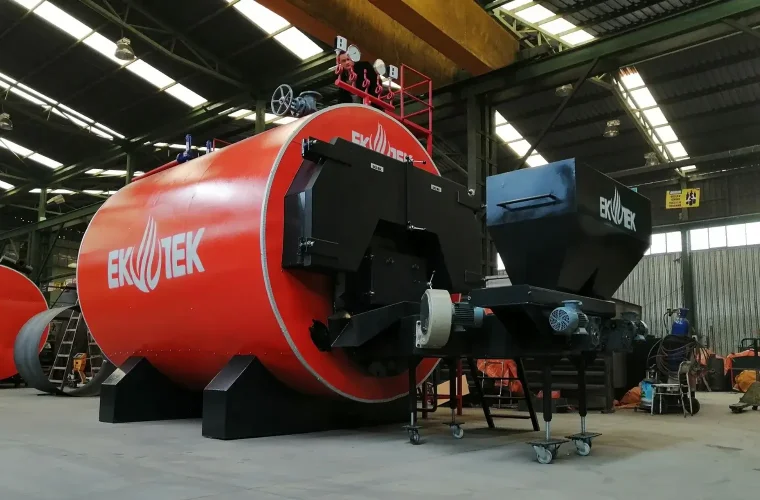

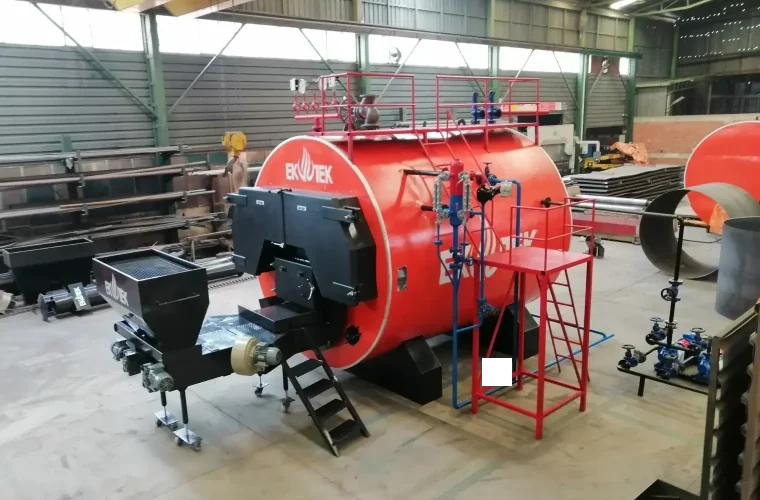

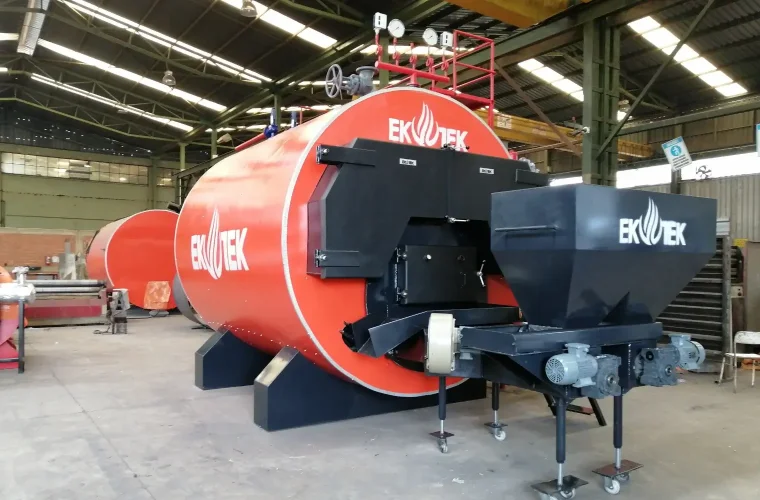

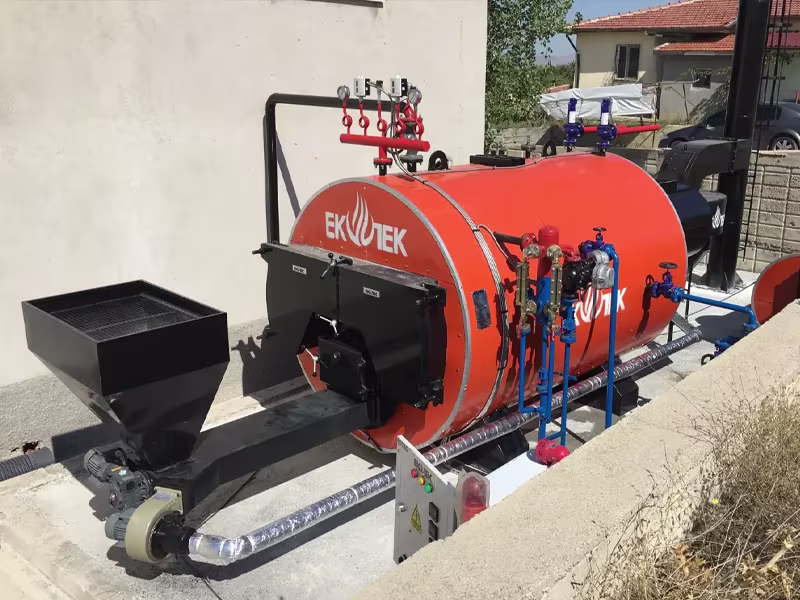

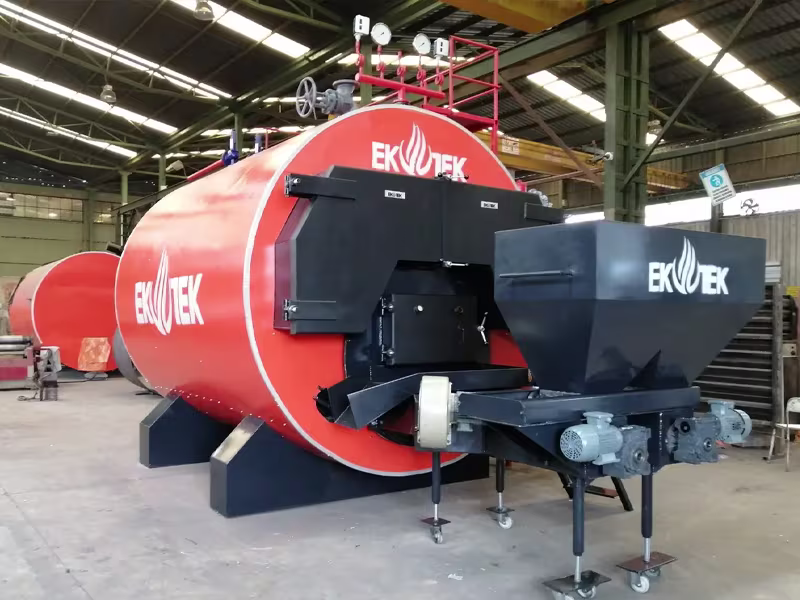

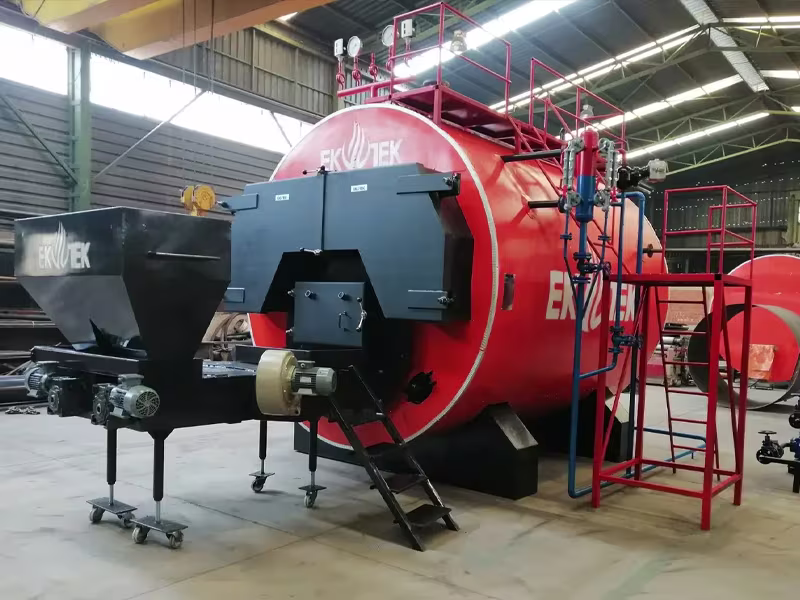

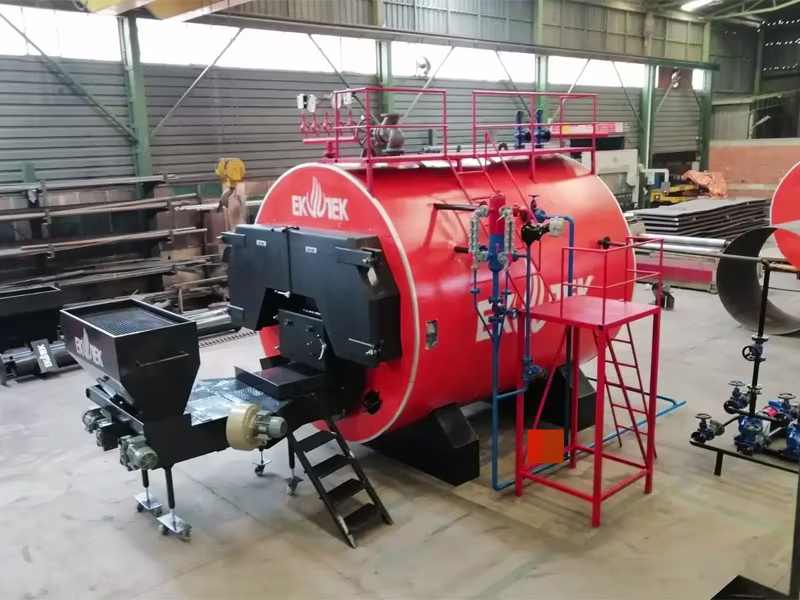

Grim Series - Solid Fuel Scotch Type Steam Boiler

Grim Series solid fuel Scotch type steam boiler efficiently burns lignite coal, olive pomace, pellet, sunflower husk, hazelnut shell, and similar granular fuels, while automatic loading makes it easier to use.

If requested, an economizer can be added to the flue gas outlet to take advantage of the heat from the exhaust gases. The economizer, mounted at the rear of the boiler, preheats the condensate water entering the boiler, thus saving fuel.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Steam Production Capacity
    160 kg/h - 5,600 kg/h
  • Working Pressure
    3 - 16 bar
  • Design Type
    Fire-Tube Scotch - Scotch Type, 3-Pass Fully Cylindrical
  • Fuel Type
    Lignite Coal, Hard Coal, Coal Dust, Pellet, Olive Pomace, Olive Pit, Wood, Wood Chips, Sawdust, Plywood Waste, Particleboard Pieces, Hazelnut Shell, Cherry Pit, Walnut Shell, Straw, Sunflower, Compressed Bio Pellets, Pine Nut, Pine Nut Shell, Almond Shell, Fruit Pulp, Chicken Manure, Rice Husk
  • Heat Capacity
    96,000 Kcal/h - 3,360,000 Kcal/h
  • Combustion System
    Bottom Loading, Mechanical Screw - Stoker
  • Flue Outlet
    Rear, with flue heat safety sensor
  • Boiler Control Panel
    PLC touch screen control - HMI screen, Modbus, TCP, and other communication protocols
  • Mobile Portable Boiler System
    Can be designed with a maximum capacity of 500 kg/h
  • HS Code
    840219900019

Our solid fuel Scotch type steam boilers are designed for fuel with a minimum of 4,500 kcal/h (flame temperature of 1200°C). For lower calorific fuel, please contact our company.

Ekotek Heating Technology uses 5 types of safety systems in the Grim Series liquid gas-fired steam boilers:

  • Steam Temperature
  • Mechanical Pressure
  • Digital Pressure
  • Safety Valve
  • Flue Temperature Controls

Additionally, all safety systems, including boiler feed pumps, are provided in pairs as a standard package. With optional features; PLC touch screen control, Modbus RTU (Remote Terminal Unit RTU) is fully under your control.

Thanks to the high heating surface, it provides the opportunity to obtain drier and higher energy steam. Its large water and steam volume ensures high performance under intense and continuous working conditions and during sudden steam draws.

Scotch type 3-pass boilers are recognized worldwide for their superior design, earning the title of the most durable and efficient boilers. Fuel is fed from the bottom, allowing direct contact of the flame with the combustion chamber. Assisted by a fan and primary air, combustion is controlled, clean, and smokeless.
