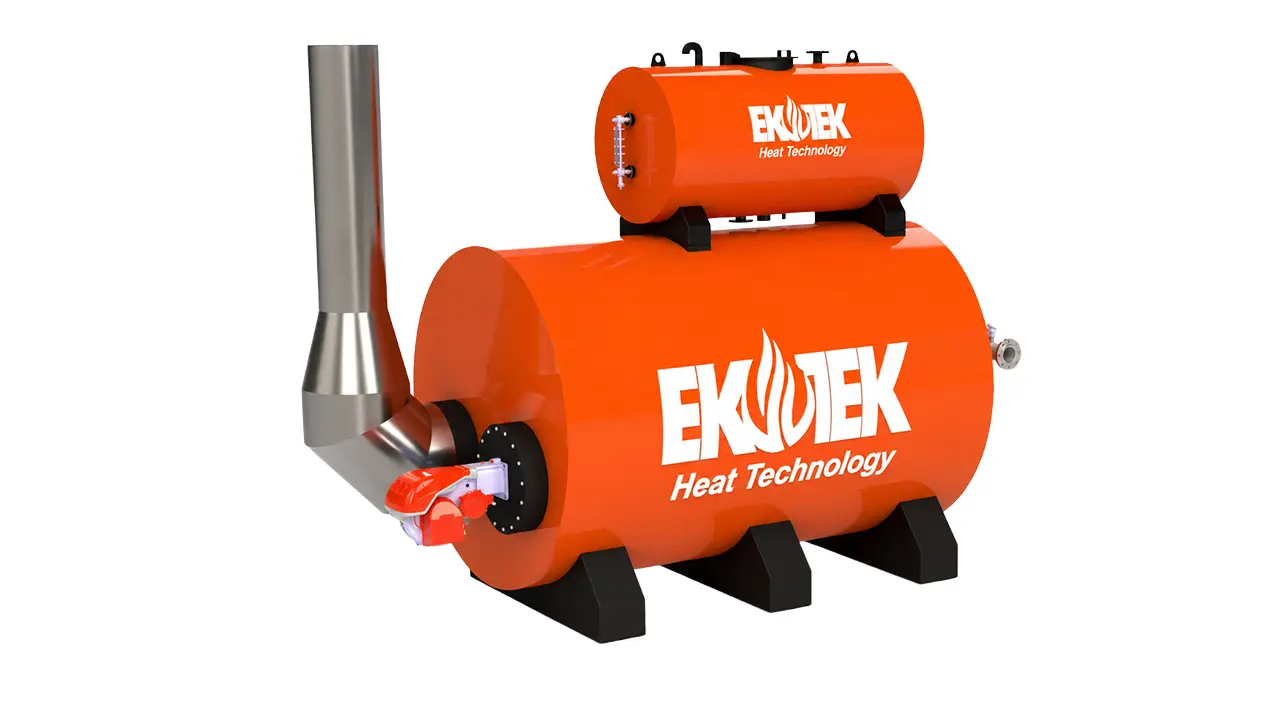

Water Bath Heater

TermoBanyo Water Bath Heater is an indirect fired gas heating system designed to preheat natural gas before pressure reduction. It helps prevent freezing, hydrate formation, regulator blockage and equipment damage in RMS stations, city gate stations, industrial gas lines and pipeline applications.

Water Bath Heater
Certificates
Get in touch now and let's offer the best solution for your needs!
You can contact our team directly for product selection, technical details, quotation, and application scope.

TermoBanyo Water Bath Heater

Water Bath Heaters provide indirect, safe, and uniform heating of gases or liquids. In natural gas pressure reduction stations, the gas cools during pressure decrease due to the Joule-Thomson effect. Without preheating, this cooling can lead to issues like icing, hydrate buildup, filter clogging, regulator failures, and thermal stress on equipment. ThermoBanyo Water Bath Heater heats gas indirectly: a burner warms a fire tube inside a water bath, and the gas flows through process coils submerged in this heated water. Since the flame never contacts the gas directly, the system ensures safe heat transfer, stable outlet temperature, and even heating without localized overheating.

Technical Highlights

  • Capacity range: 100 kW - 35.000 kW
  • Design type: 2-pass
  • Operating temperature: 20°C - 450°C
  • Operating pressure: 1 - 16 bar
  • Application: natural gas preheating before pressure reduction

Product Models

Model Name Heat Capacity (kcal/h) Heat Capacity (kW) Heat Capacity (MW)
TermoBanyo -1 100.000 120 0,12
TermoBanyo -2 130.000 150 0,15
TermoBanyo -3 150.000 175 0,18
TermoBanyo -4 160.000 190 0,19
TermoBanyo -5 200.000 233 0,23
TermoBanyo -6 250.000 300 0,30
TermoBanyo -7 300.000 350 0,35
TermoBanyo -8 350.000 400 0,40
TermoBanyo -9 400.000 450 0,45
TermoBanyo -10 450.000 520 0,52
TermoBanyo -11 500.000 580 0,58
TermoBanyo -12 600.000 700 0,70
TermoBanyo -13 750.000 880 0,88
TermoBanyo -14 900.000 1.000 1,00
TermoBanyo -15 1.000.000 1.100 1,10
TermoBanyo -16 1.250.000 1.500 1,50
TermoBanyo -17 1.500.000 1.750 1,75
TermoBanyo -18 1.750.000 2.000 2,00
TermoBanyo -19 2.000.000 2.300 2,30
TermoBanyo -20 2.500.000 3.000 3,00
TermoBanyo -21 3.000.000 3.500 3,50
TermoBanyo -22 3.500.000 4.000 4,00
TermoBanyo -23 4.000.000 4.650 4,65
TermoBanyo -24 4.500.000 5.230 5,23
TermoBanyo -25 5.000.000 5.800 5,80
TermoBanyo -26 6.000.000 7.000 7,00
TermoBanyo -27 7.000.000 8.000 8,00
TermoBanyo -28 8.000.000 9.000 9,00
TermoBanyo -29 9.000.000 10.000 10,00
TermoBanyo -30 10.000.000 11.500 11,50
TermoBanyo -31 12.000.000 14.000 14,00
TermoBanyo -32 15.000.000 17.500 17,50
TermoBanyo -33 17.000.000 20.000 20,00
TermoBanyo -34 19.000.000 22.000 22,00
TermoBanyo -35 20.000.000 23.000 23,00
TermoBanyo -36 22.000.000 25.500 25,50
TermoBanyo -37 24.000.000 28.000 28,00
TermoBanyo -38 26.000.000 30.000 30,00
TermoBanyo -39 28.000.000 32.000 32,00
TermoBanyo -40 30.000.000 35.000 35,00

Advantages

  • Safe indirect heating through water bath technology
  • Stable gas outlet temperature under changing flow conditions
  • Protection against icing, hydrate formation and regulator blockage
  • Suitable for RMS stations, pipeline systems and industrial gas applications
  • High-capacity TermoBanyo model range from small stations to large transmission lines
