How the Thermal Oil Boiler Works

A thermal oil boiler, also known as a thermal fluid heater, is a high-efficiency industrial heating system that uses heat transfer oil instead of water or steam. This system is widely used in industries such as chemical processing, textile manufacturing, food production, asphalt plants, and more — especially where consistent and high-temperature heat is required without the pressure-related risks of steam.

Basic Working Principle

At the core of the thermal oil boiler is a closed-loop circulation system. Here’s how it works:

  1. Heating the Thermal Oil:
    The boiler burns a fuel source — such as natural gas, diesel, or biomass — to heat the thermal oil (also called heat transfer fluid). The burner heats coils inside the furnace where the oil flows.

  2. Circulation of Hot Oil:
    A high-temperature oil pump circulates the hot oil through a network of pipes or coils to the heat-consuming equipment (reactors, dryers, heat exchangers, etc.).

  3. Heat Transfer:
    The thermal oil transfers its heat to the industrial process without coming into direct contact with the product. Once the heat is transferred, the oil returns to the boiler to be reheated.

  4. No Pressure, High Temperature:
    One of the key advantages of thermal oil systems is that they can reach operating temperatures up to 300°C (or even higher with synthetic oils) at atmospheric pressure, eliminating the need for high-pressure steam systems and their associated safety risks.

Main Advantages

  • Energy efficiency: High thermal stability and minimal heat losses.

  • Low maintenance: No scaling, corrosion, or pressure vessel inspections like in steam boilers.

  • Safe operation: Atmospheric pressure reduces explosion risks.

  • Accurate temperature control: Ideal for processes requiring steady, precise heat.

Applications

Thermal oil boilers are commonly used in:

  • Asphalt and bitumen heating

  • Chemical reactors

  • Food industry frying and drying systems

  • Textile finishing machines

  • Printing presses and laminators

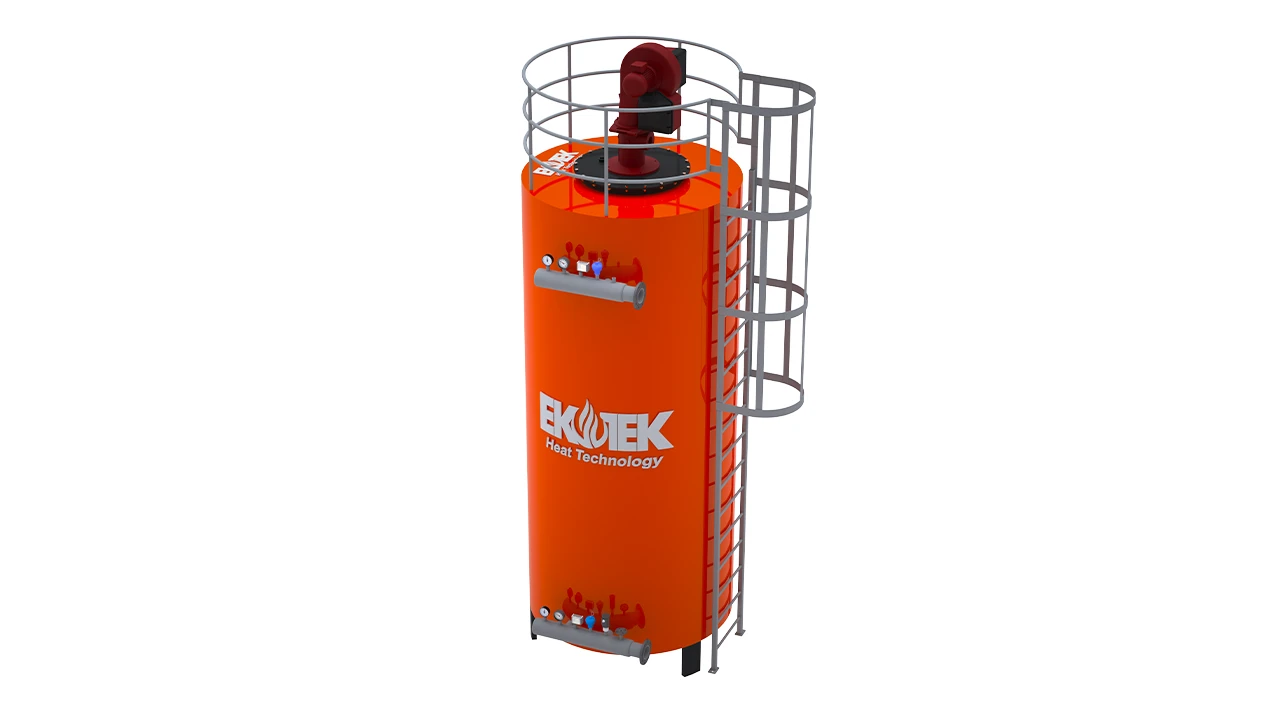

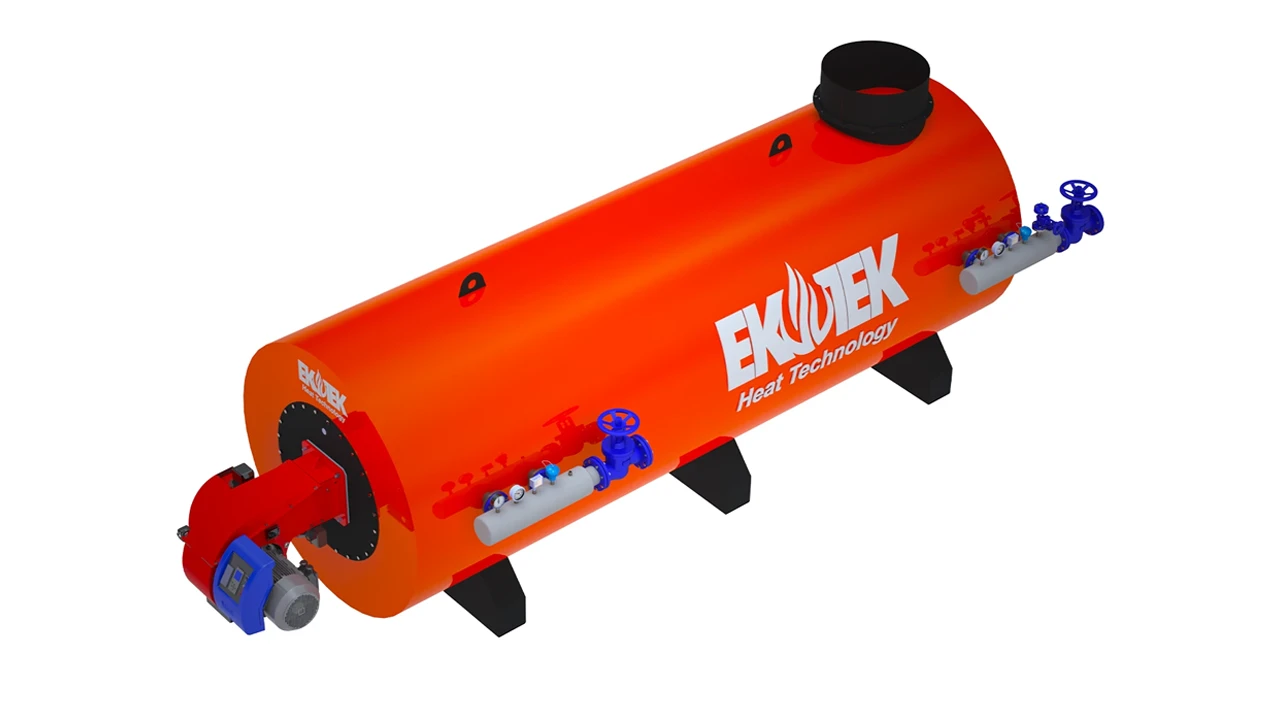

At Ekotek Heat Technology, we manufacture thermal oil boilers that combine high efficiency, robust construction, and advanced safety systems. Our solutions are designed to meet the demands of modern industry while minimizing energy consumption and operational risks.
