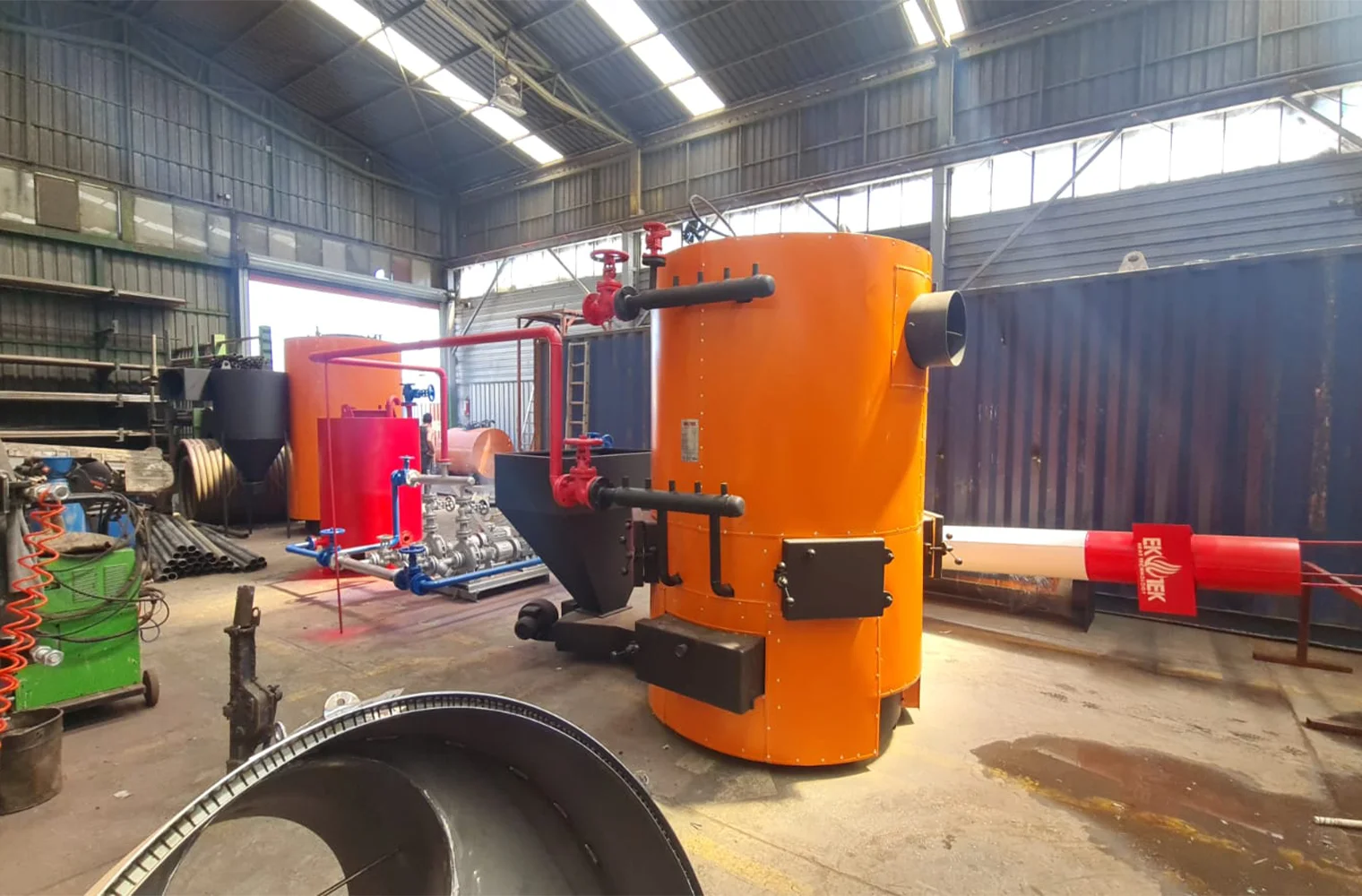

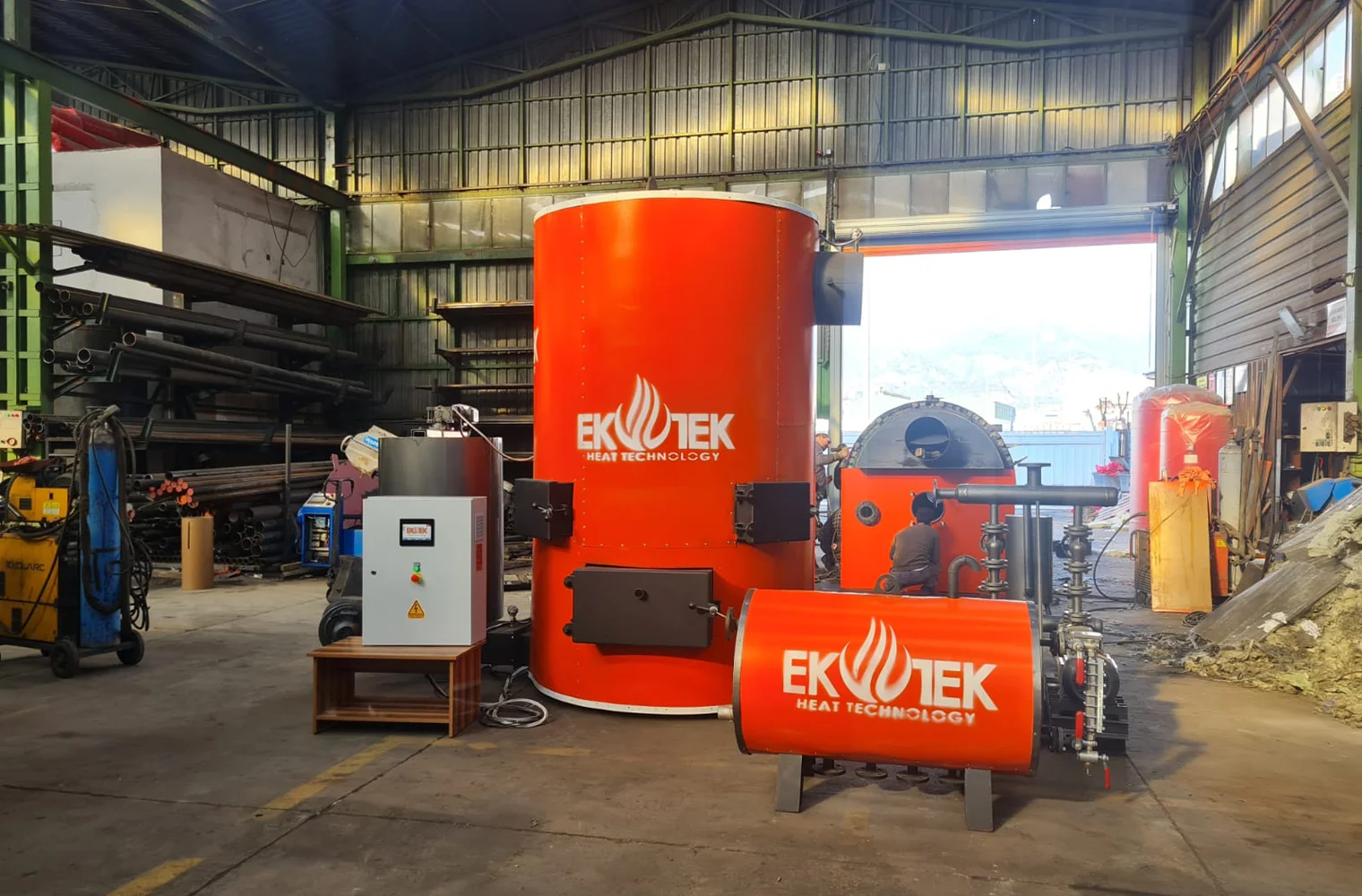

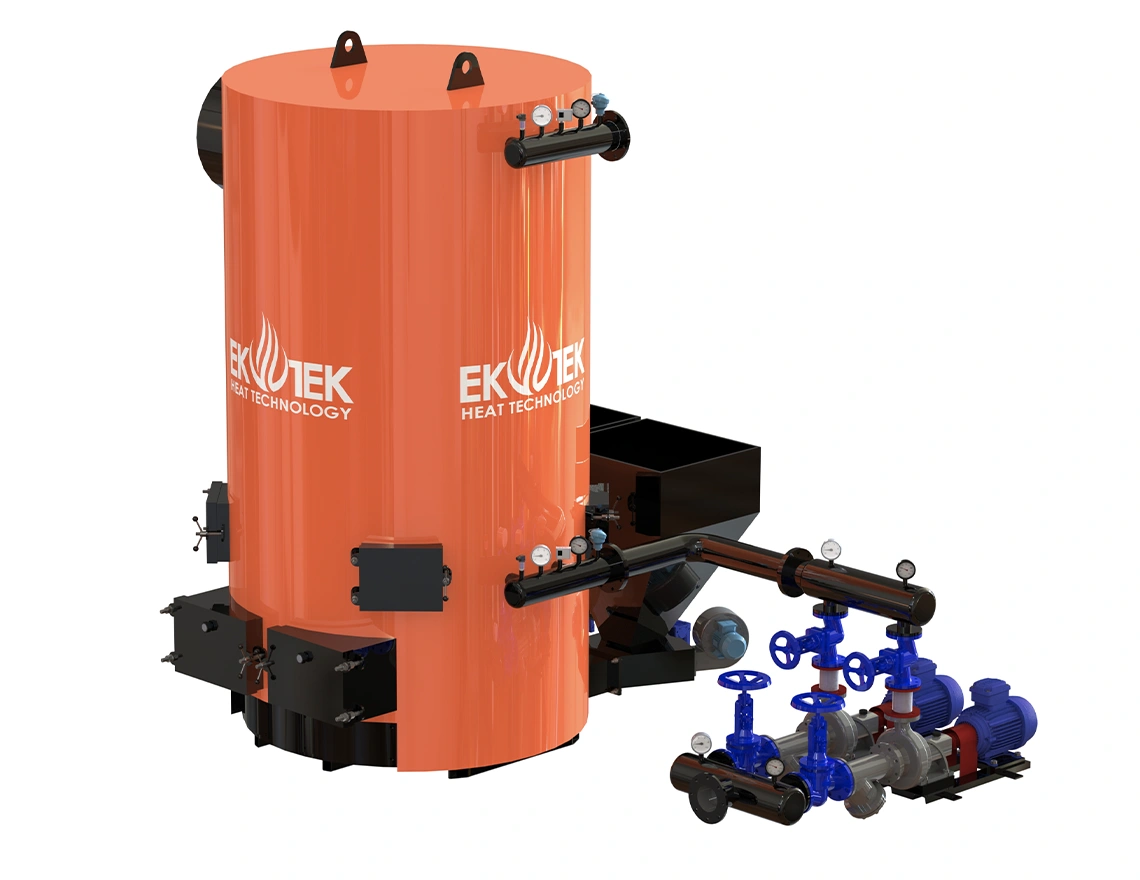

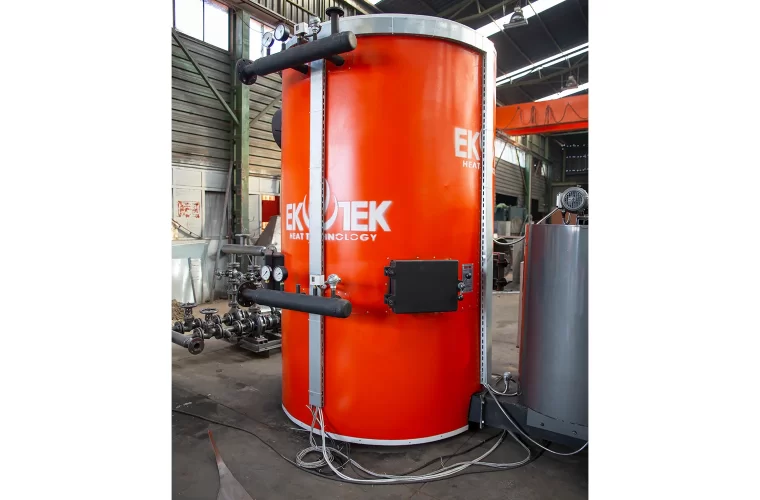

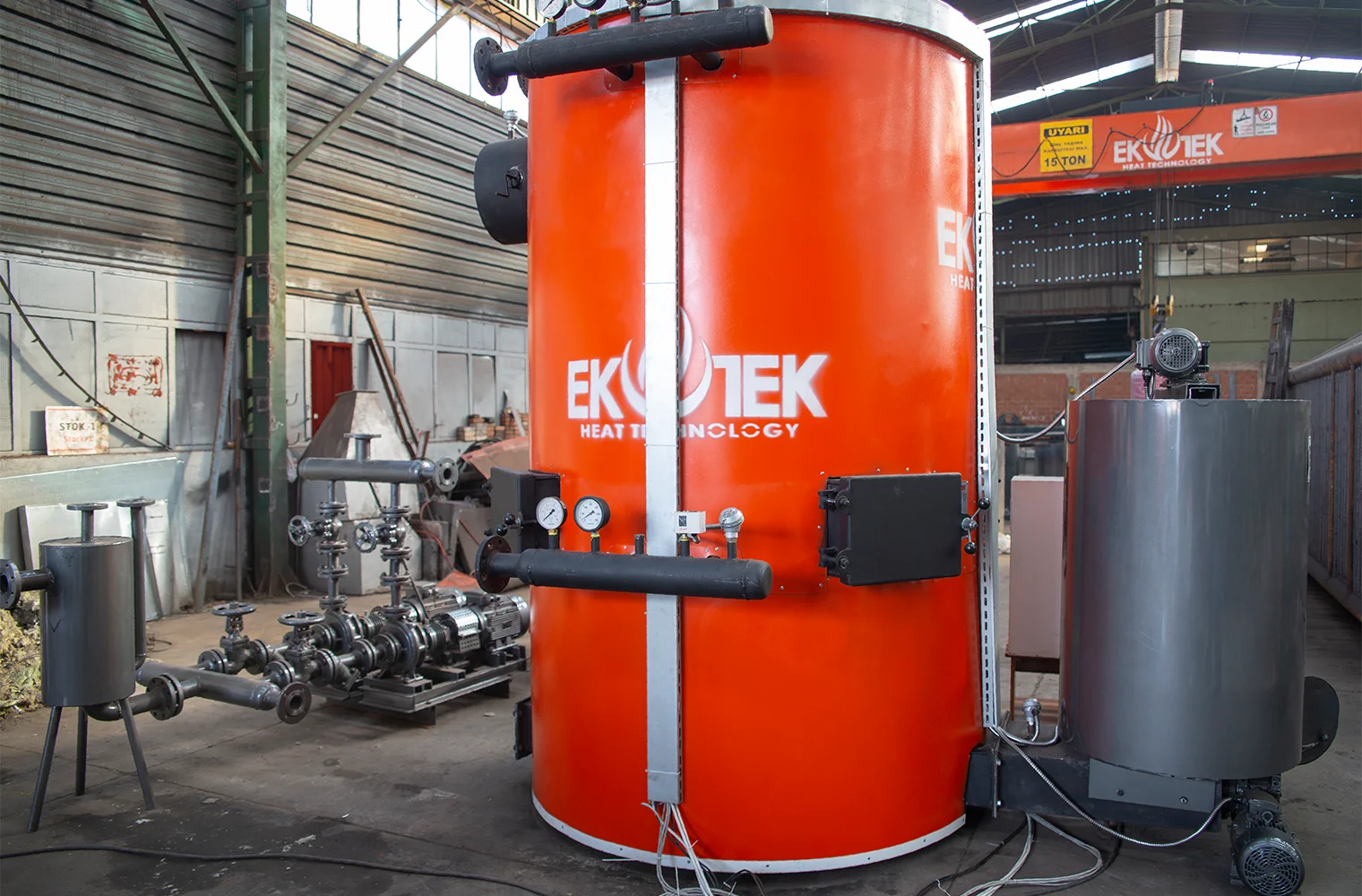

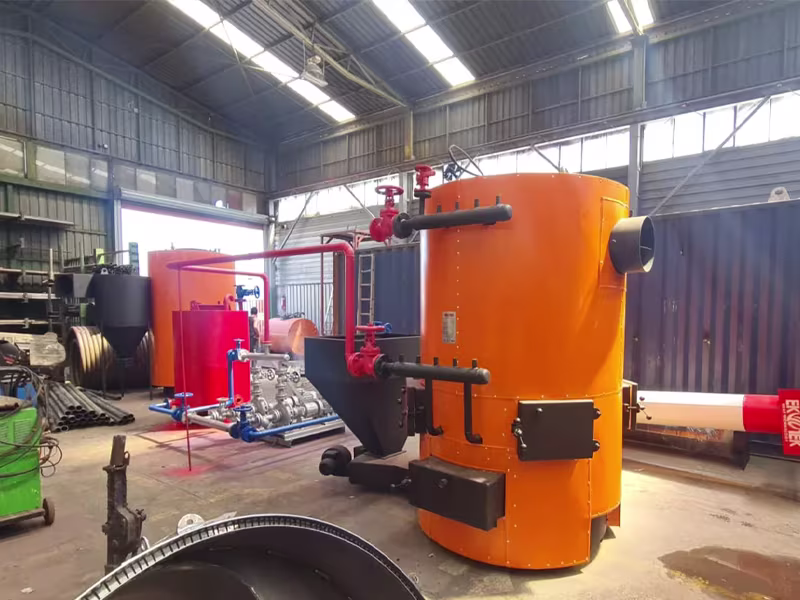

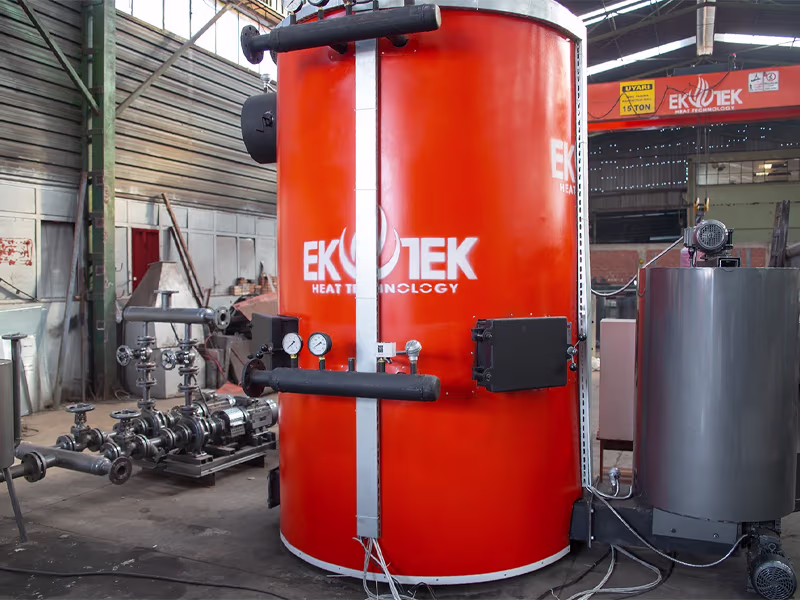

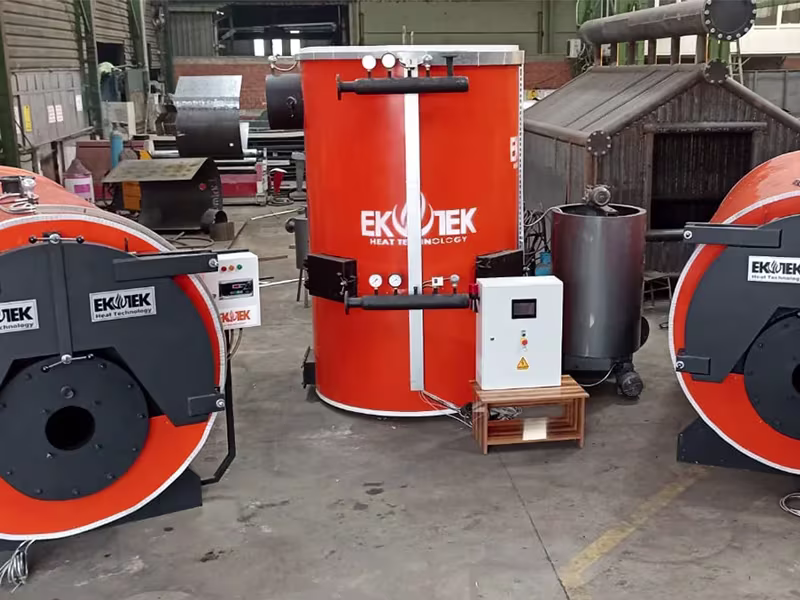

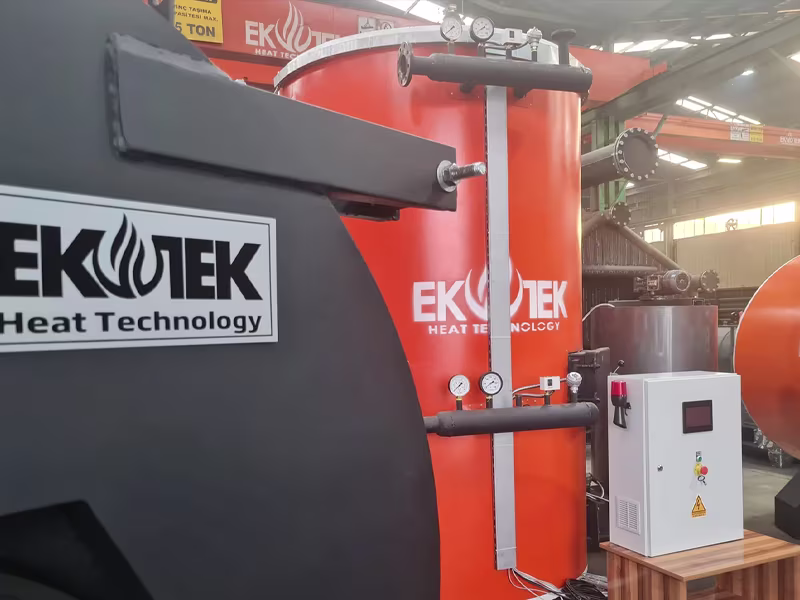

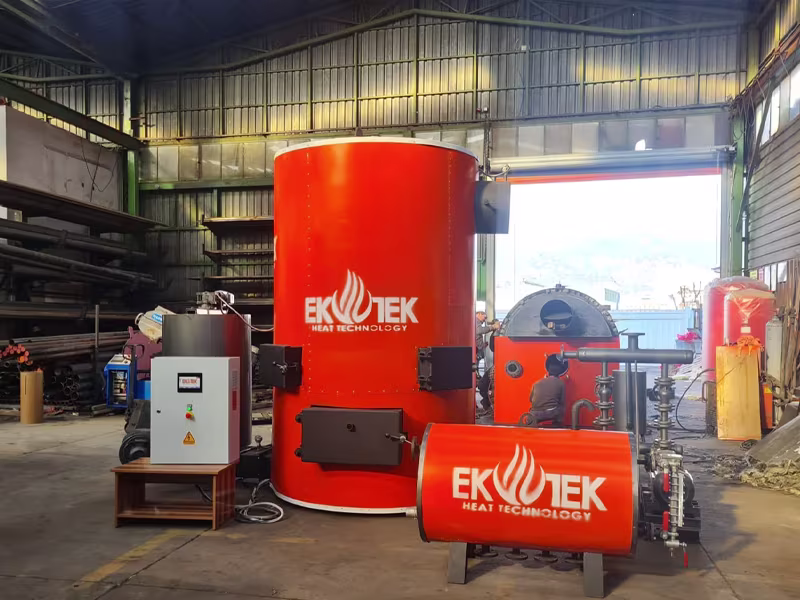

Dragon Series - Solid Fuel Thermal Oil Boiler

Dragon Series solid fuel thermal oil boiler operates at high temperatures and low pressure. The heat transfer oil used in the system can be utilized for a long time as it does not cause scaling, coking, or other negative effects in the boiler.

There is no need for a conditioning unit in the heat transfer oil. Ekotek Heating Technologies can produce a fuel feeding system with rotary grates and moving piston grates with high capacity, depending on the type of fuel. For the use of fuel with a flame temperature above 1200°C, you can request information from Ekotek engineers and officials.

Thermal oil is used in thermal oil boilers. Heat transfer oils are selected according to the heat load of the system to be used. Upon request, the system can be designed by Ekotek Heating Technologies as a nitrogen-padded closed system or an atmospheric open system.

WhatsApp Quick Contact

Technical Specifications

Heat Capacity

80,000 Kcal/h – 10,000,000 Kcal/h - 93 kW - 11,628 kW
Operating Temperature

60°C - 320°C
Design Type

Vertical 3-pass, coil-type, P235 GH seamless steel tubes in accordance with TS EN 10217-2
Fuel Type

Lignite coal, pulverized coal, pellets, olive pomace, olive pit, wood, wood chips, sawdust, wood shavings, plywood waste, chipboard pieces, nut shells, cherry pits, walnut shells, straw, sunflower husks, compressed bio-pellets, acorns, peanut shells, almond shells, fruit pulp, poultry manure, rice husks
Combustion System

Bottom-fed, mechanically augered - Rotary grate and moving piston grate according to capacity
Control Panel

Digital temperature control
Heat Transfer Oil Inlet/Outlet

PN 40 flanged type
Optional Features

PLC touch control - HMI screen, Modbus, TCP and other communication protocols
Expansion Tank Connection

Compatible with open type expansion and closed type expansion as requested
Mobile Portable Boiler System

Maximum capacity 1,000,000 Kcal/h
HS Code

840220000000

Additionally, all safety systems, including oil circulation, are provided as standard in double units. Upon request, a PLC control system can be added. With optional features, you can control the system with a PLC touch screen, Modbus RTU (Remote Terminal Unit). Control your power with Ekotek technology.

Ekotek Heating Technology designs different combustion systems specifically for you. We have production of stoker - auger, rotary grate, and piston moving grate systems. Our boilers are designed for fuel with a minimum calorific value of 4,500 Kcal/h (flame temperature 1200°C). For burning lower-calorific fuels, please contact our company.

Dragon Series Solid Fuel Thermal Oil Boiler - Features and Advantages:

The thermal oil used instead of water in the system leaves no residue and has no corrosive effect.
Operating and maintenance costs are low.
Thermal conductivity coefficients are higher compared to other fluids.
Due to the high thermal conductivity coefficients, higher heat transfer is achieved with less fuel energy.
Necessary safety measures are taken by integrating the required control and automation equipment into the system.
The modern design ensures fuel savings.
Before each production, manufacturing begins under computer-aided design control.
