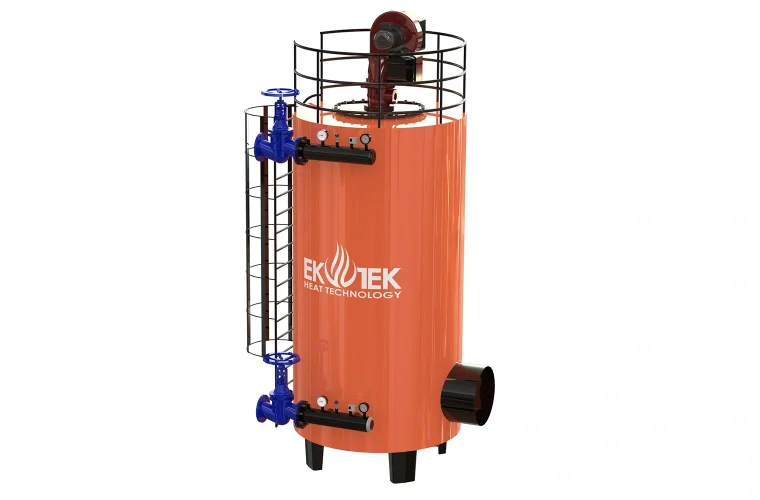

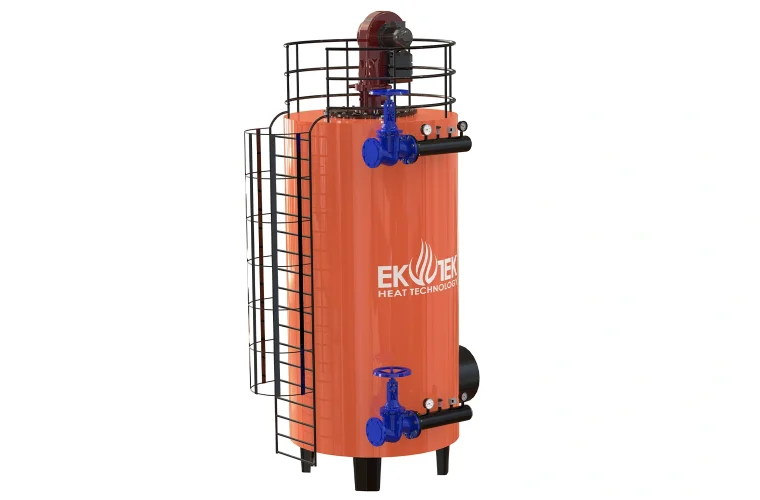

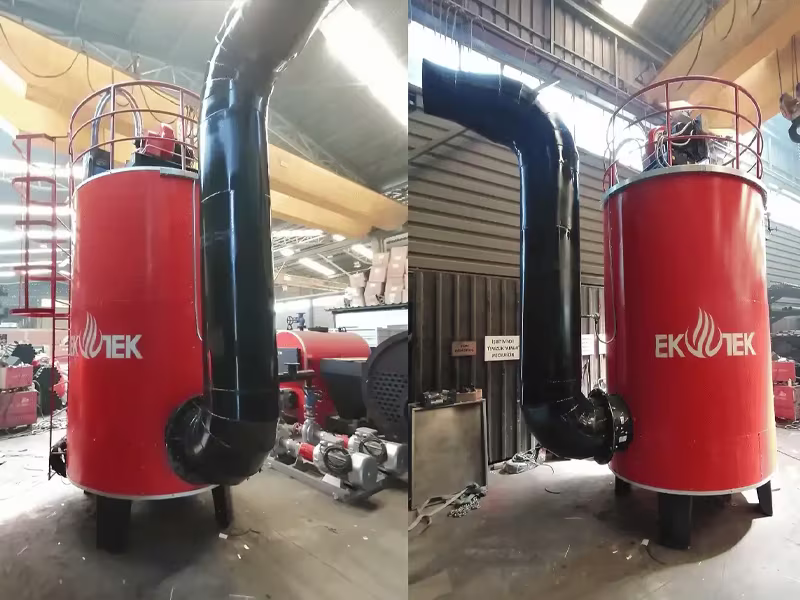

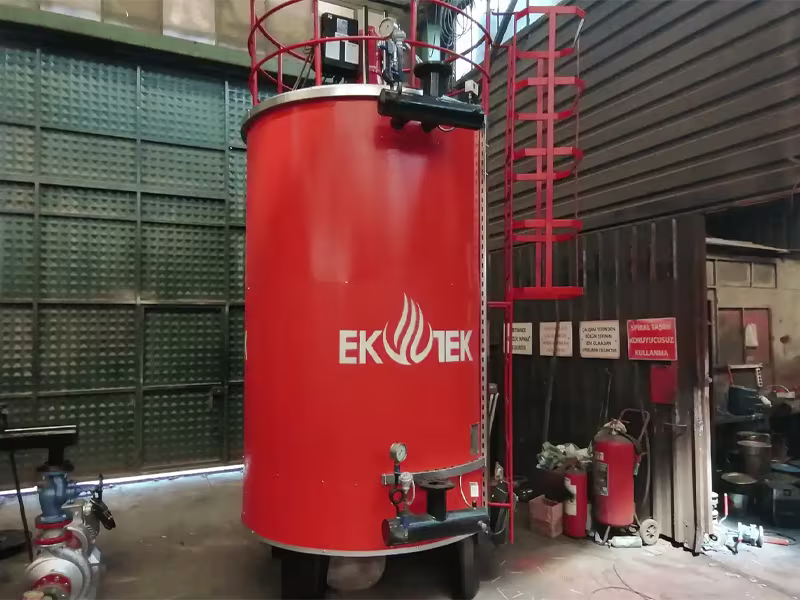

Albatros Series - Liquid Gas Fired Thermal Oil Heater

Albatros Series liquid-gas fired thermal oil heater operates at high temperatures and low pressures. It can be safely used in processes where high temperatures are required.

Although the Albatros series and other thermal oil heaters operate at low pressure, they can produce steam, hot water, and hot air for certain processes when equipped with the necessary components. The heat transfer oil used in the system can be used for a long time as it does not cause negative effects such as coking, scaling, sedimentation, or corrosion in the heater. There is no need to use any conditioning unit in the heat transfer oil.

WhatsApp Quick Contact

Technical Specifications

Heat Capacity

100,000 Kcal/h – 10,000,000 Kcal/h - 116 kW - 11628 kW
Operating Temperature

60°C - 320°C
Design Type

Vertical 3-pass, coil-type with P235 GH seamless steel pipes according to TS EN 10217-2 standard
Fuel Type

LNG, Propane, CNG, Natural Gas, LPG, Biogas, Diesel, Fuel oil, or dual fuel
Burner

Compatible with modified burners
Control Panel

Digital Temperature Controlled
Flue Outlet

Rear flue with heat safety sensor
Heat Transfer Oil Inlet/Outlet

PN 40 Flanged Type
Optional Features

PLC touch control - HMI screen, Modbus, TCP, and other communication protocols
Expansion Tank Connection

Compatible with open and closed type expansion tanks as requested
Mobile Portable Boiler System

Maximum capacity of 1,000,000 Kcal/h
HS Code

840220000000

The Albatros Series liquid gas-fired hot oil boiler has an ergonomic design that can be used in horizontal spaces or vertically in system applications. Among the original designs of Ekotek heat technologies, the Albatros series serves as a marine-type thermal oil heater for areas requiring heat power. If requested, a PLC control system can be added. With optional features, it can be controlled with a PLC touchscreen, Modbus RTU (Remote Terminal Unit), completely under your control. Take control of your power with Ekotek technology. Liquid Gas Fired Hot Oil Boiler - Albatros Series Features and Advantages:

It is reliable due to low operating pressure.
Operating and maintenance costs are low.
Thermal oils have higher thermal conductivity coefficients compared to other heating fluids, resulting in higher heat transfer with less fuel energy due to their high thermal conductivity coefficients.
It saves fuel thanks to modern design.
The necessary control and automation equipment have been integrated into the system, ensuring safety measures are taken.
Before each manufacturing process, computer-aided design control is employed.
