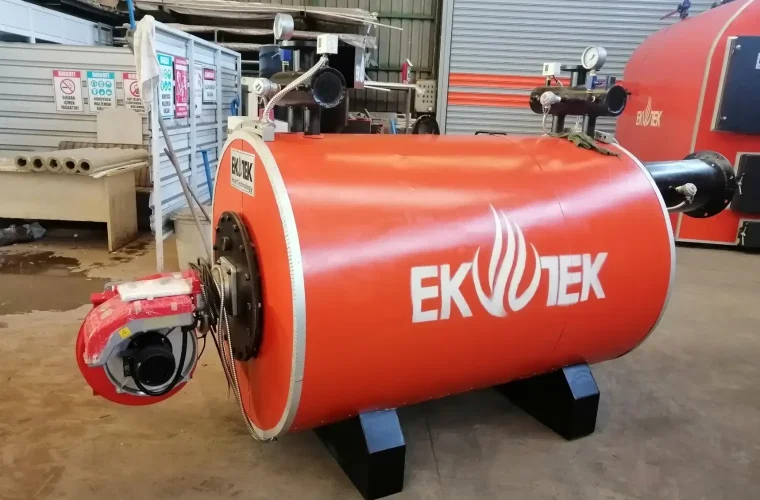

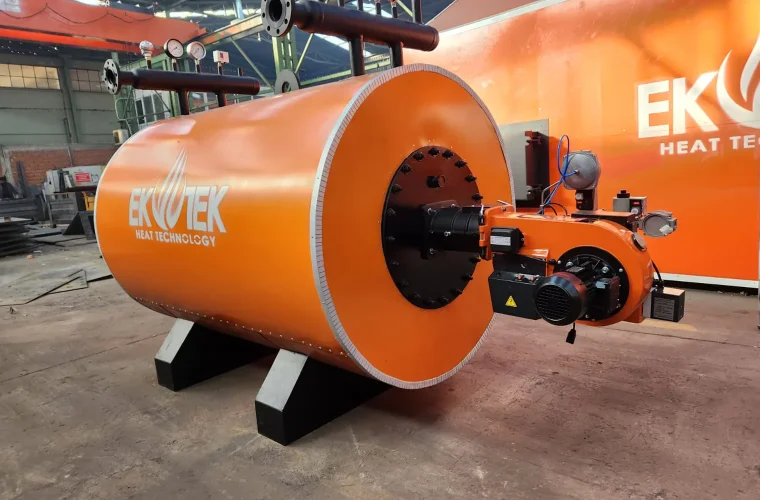

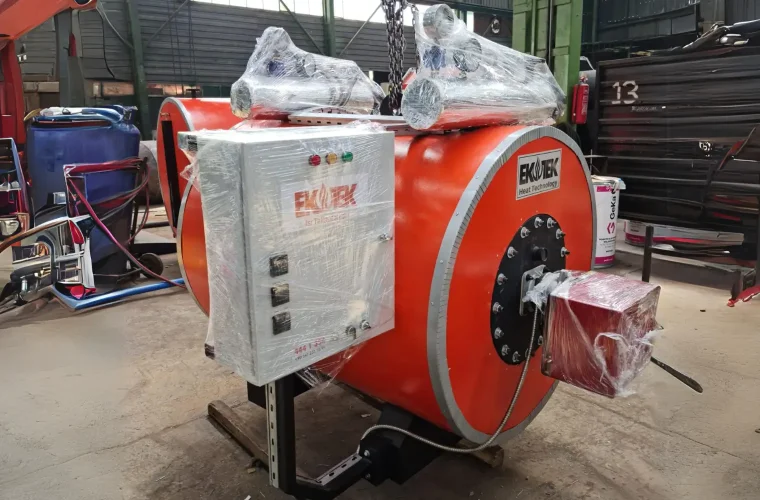

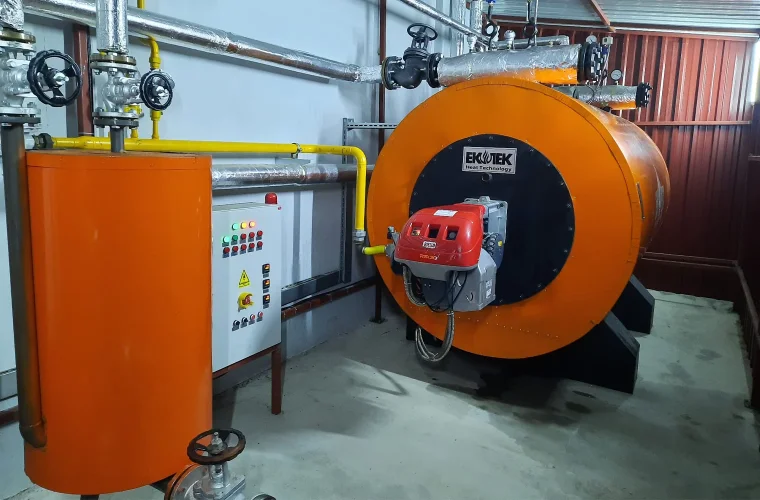

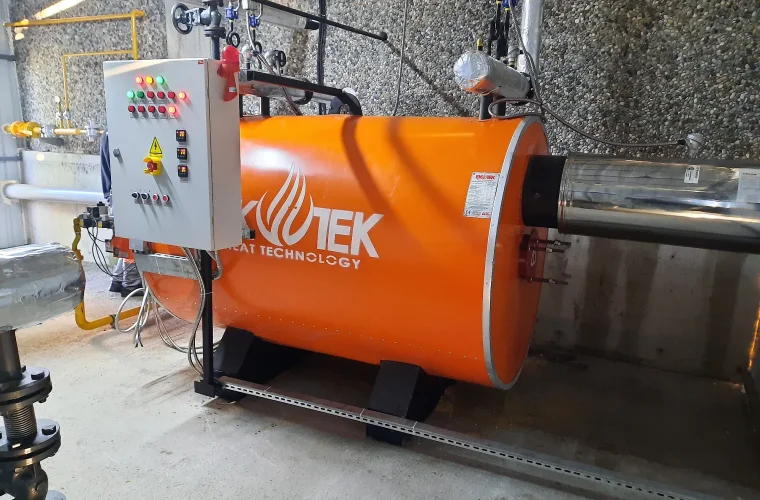

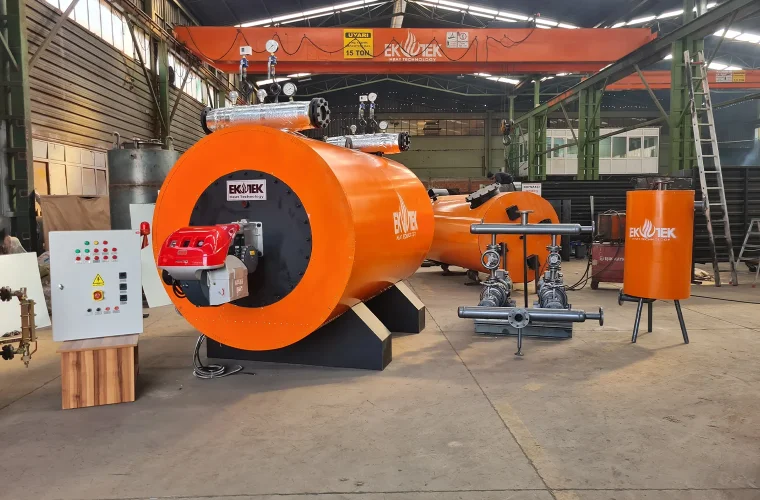

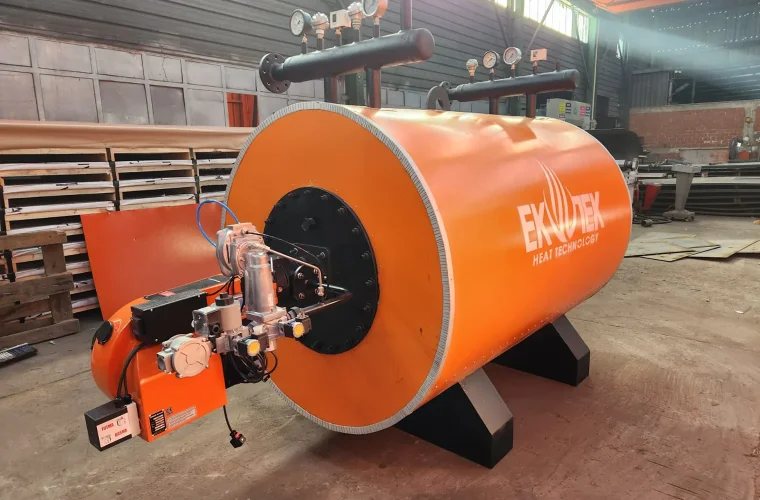

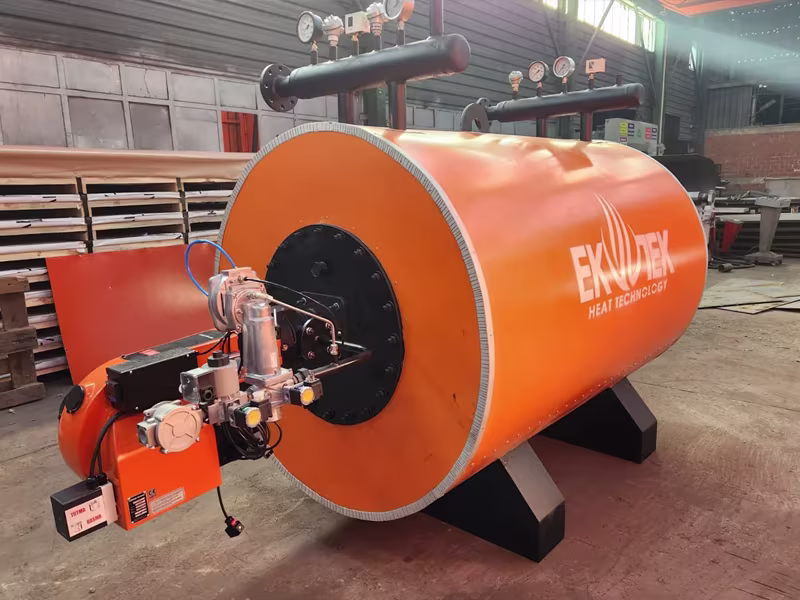

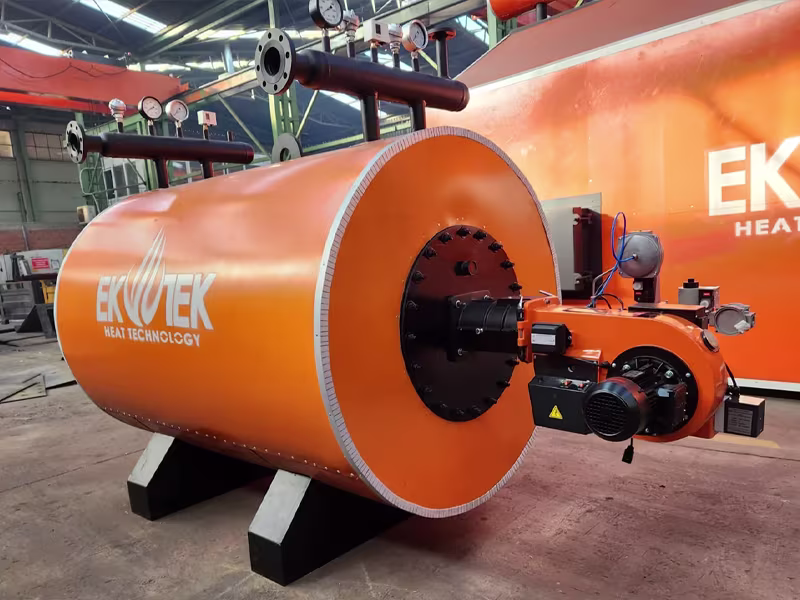

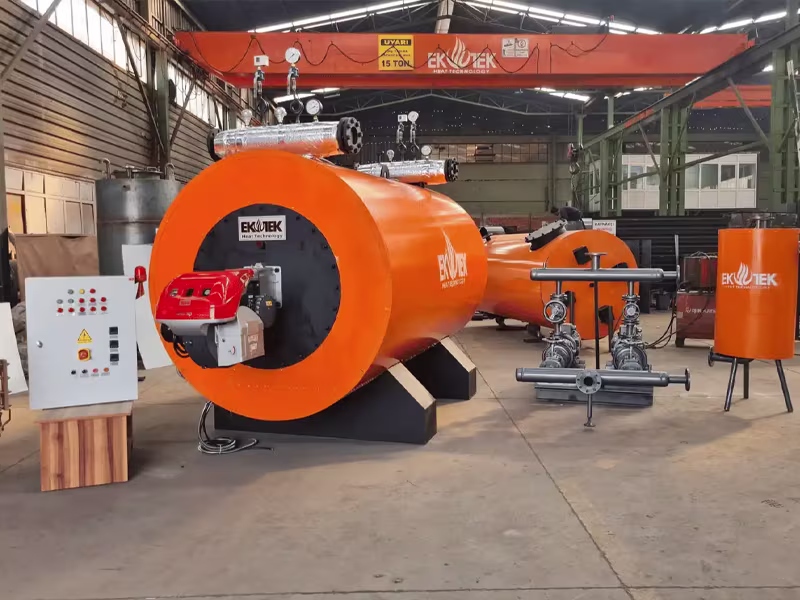

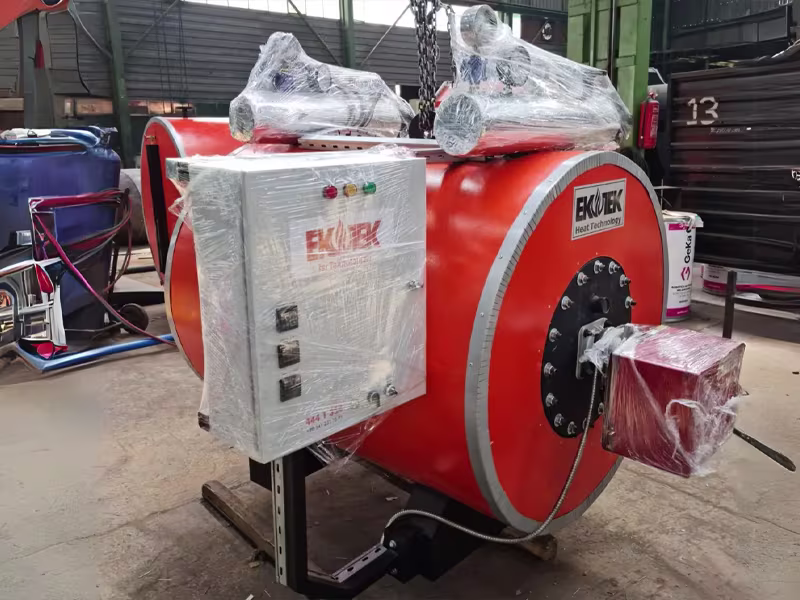

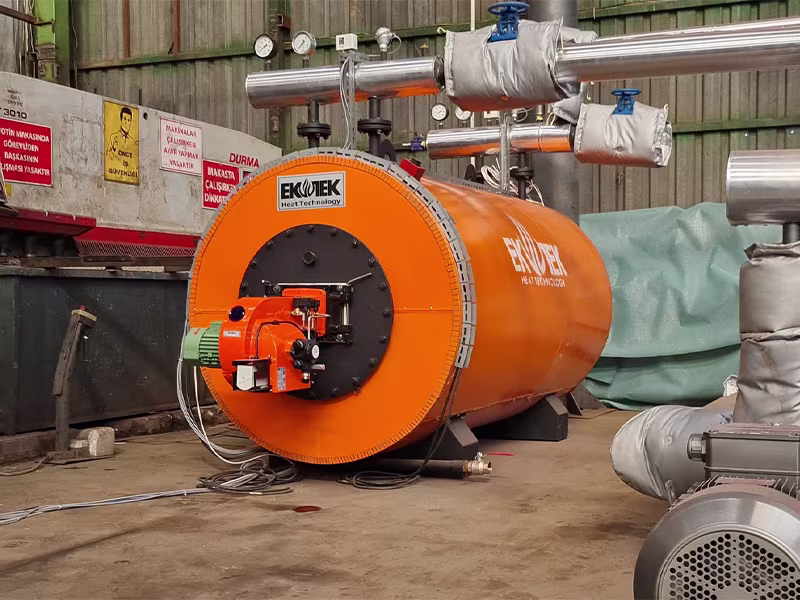

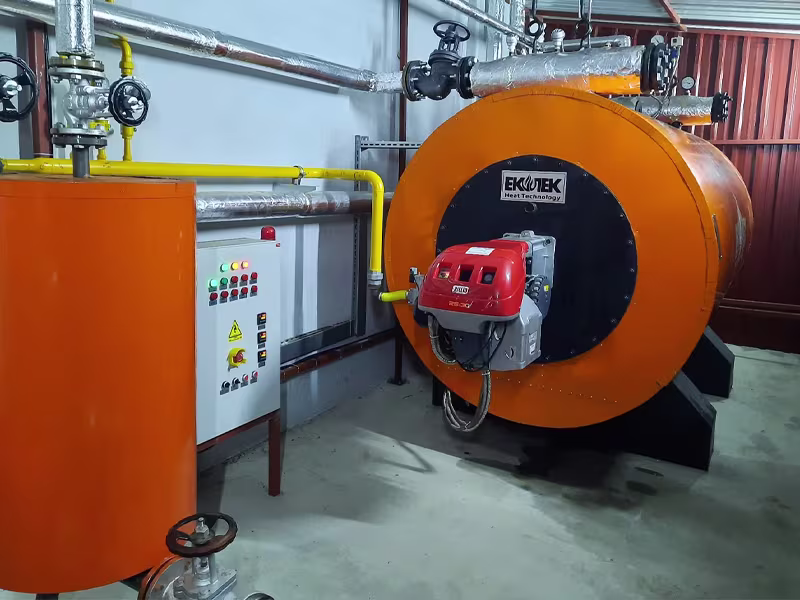

Phoenix Series - Liquid Gas Fired Thermal Oil Heater

Phoenix Series liquid-gas fired thermal oil heater operates at high temperatures and low pressures and can be safely used in processes where high temperatures are required.

Although the Phoenix Series and other thermal oil heaters operate at low pressure, they can produce steam, hot water, and hot air for certain processes when equipped with the necessary components. The heat transfer oil used in the system can be used for a long time as it does not cause negative effects such as coking, scaling, sedimentation, or corrosion in the heater.

There is no need for any conditioning unit in the heat transfer oil. Upon request, Ekotek heating technologies can design these heaters as portable mobile systems.

WhatsApp Quick Contact

Technical Specifications

Heat Capacity

100,000 Kcal/h – 10,000,000 Kcal/h - 116 kW - 11628 kW
Operating Temperature

60°C - 320°C
Design Type

Horizontal 3-pass, coil-type with P235 GH seamless steel pipes according to TS EN 10217-2 standard
Fuel Type

LNG, Propane, CNG, Natural Gas, LPG, Biogas, Diesel, Fuel oil, or dual fuel
Burner

Compatible with Universal Burners
Control Panel

Digital Temperature Controlled
Flue Outlet

Rear flue with heat safety sensor
Heat Transfer Oil Inlet/Outlet

PN 40 Flanged Type
Optional Features

PLC touch control - HMI screen, Modbus, TCP, and other communication protocols
Expansion Tank Connection

Compatible with open and closed type expansion tanks as requested

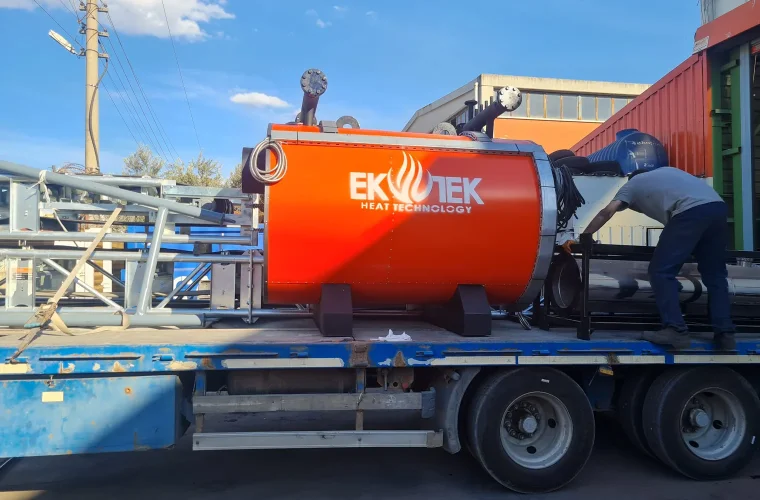

Mobile Portable Boiler System

Maximum capacity of 2,500,000 Kcal/h
HS Code

840220000000

Phoenix Series liquid gas-fired thermal oil heaters are reliable due to their low operating pressure. Operating and maintenance costs are low. Compared to other heating fluids, thermal oils have higher thermal conductivity coefficients. Due to the high thermal conductivity coefficients, higher heat transfer is achieved with less fuel energy.

The modern design ensures fuel savings. Necessary safety measures have been taken by integrating the required control and automation equipment into the system. Each production begins under computer-aided design control.
