Single Serpentine Water Storage Tank
Single serpentine water storage tanks provide both economical and hygienic hot water supply by utilizing heat energy from a single heat source (such as hot water boilers, steam boilers, solar panels, heat pumps, geothermal energy, etc.).
Technical Specifications
-
Type of OperationLiquid - Liquid
-
Operating Temperature60°C - 95°C
-
Operating Pressure3-16 Bar
-
Capacity (L)100 - 10.000 lt
-
Application AreaResidential, hotels, factories, hospitals, schools, sports halls, shopping centers, mass housing projects, restaurants, canteens, thermal facilities
-

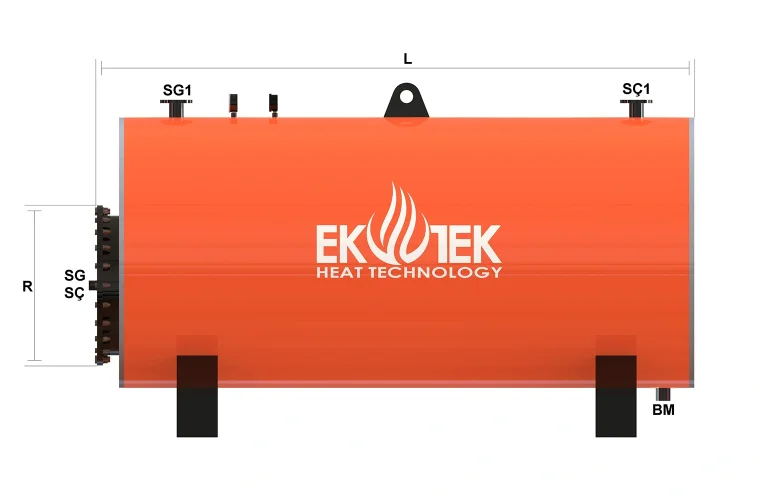

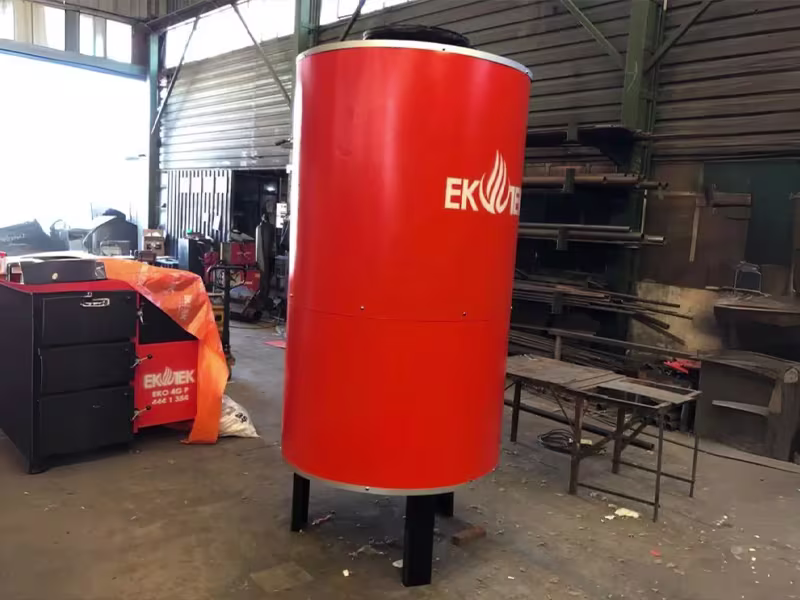

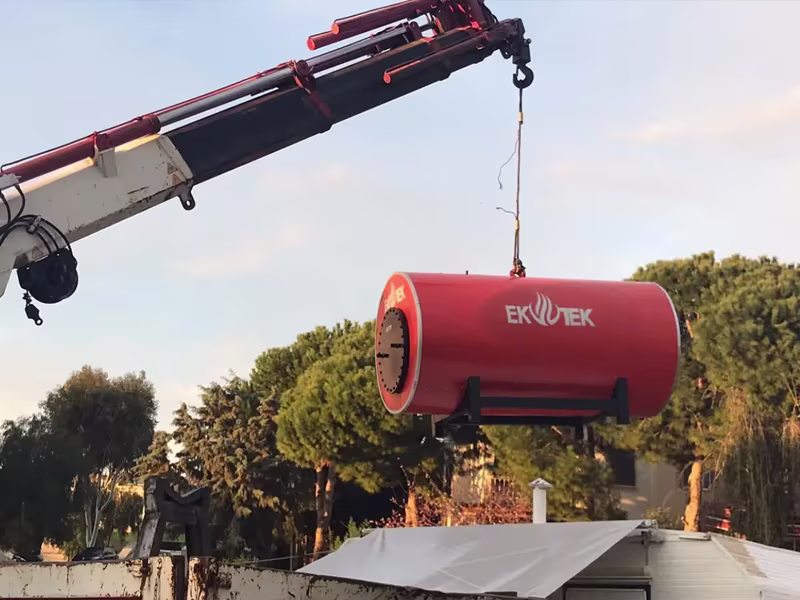

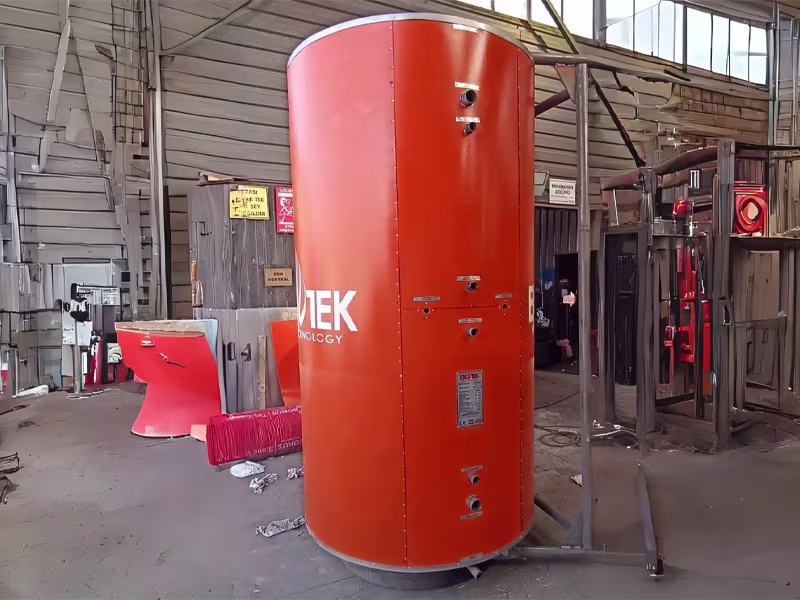

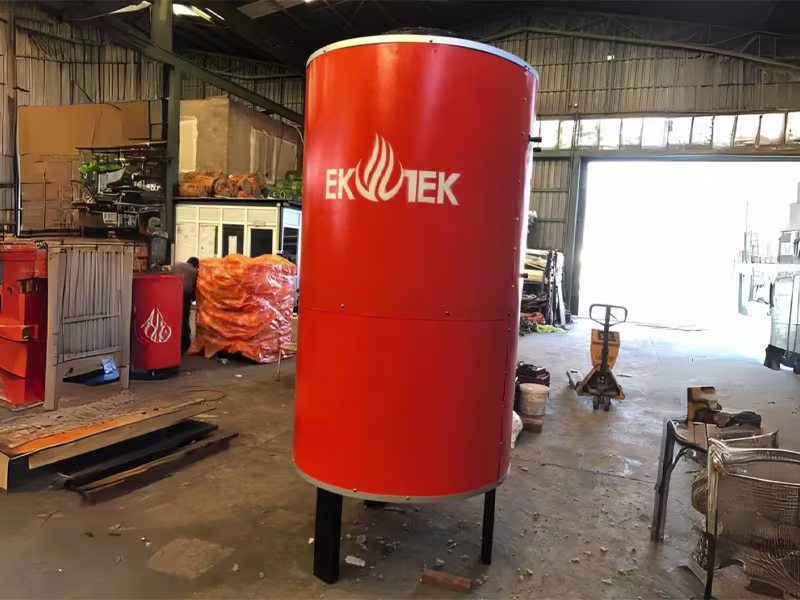

Design TypeVertical - Horizontal
-
Surface CoatingEpoxy paint or galvanized - hot-dip galvanizing and enamel coating are optional
-
External Casing CoverWinlex leather coating or RAL 2004 painted front, primer-painted back, grade 1311 galvanized steel
-
InsulationCovered with 50 mm polyurethane. ** Rock wool insulation other than polyurethane is optional.
-
Boiler BodyS 235 JR black sheet
-
InsulationPolyurethane or glass wool insulation
-
ConnectionsFlanged / Threaded
-
HS Code840390900000 / 7309003000
-
Hot Water Storage100 Lt - 20.000 Lt
-
Fuel TypeCentral Heating

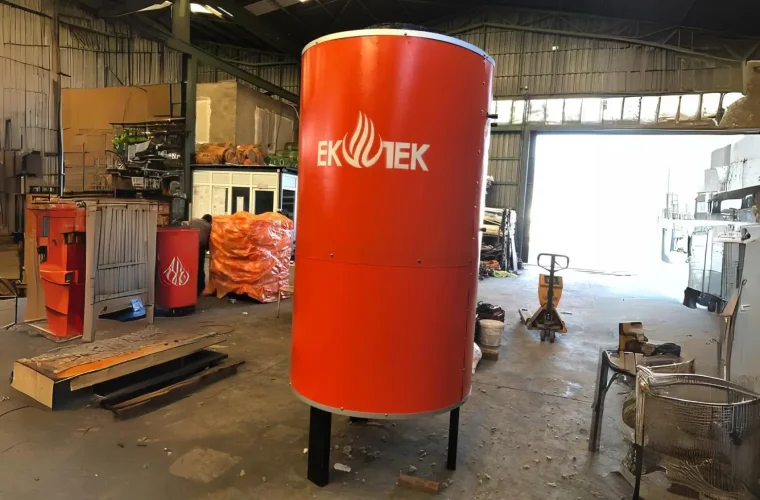

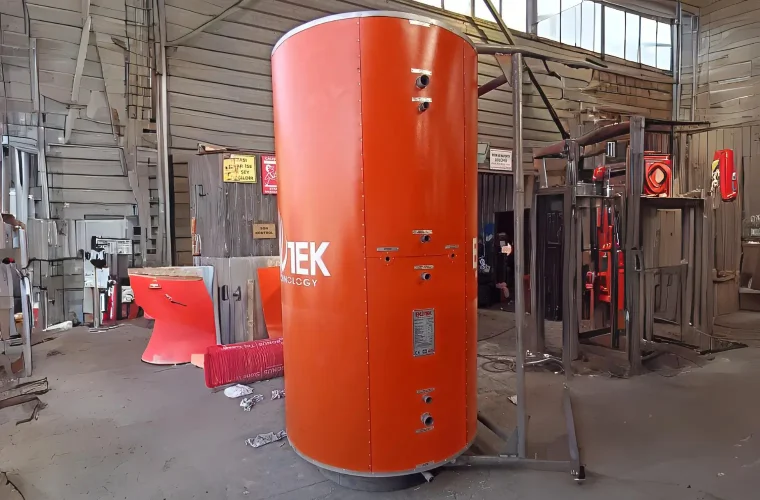

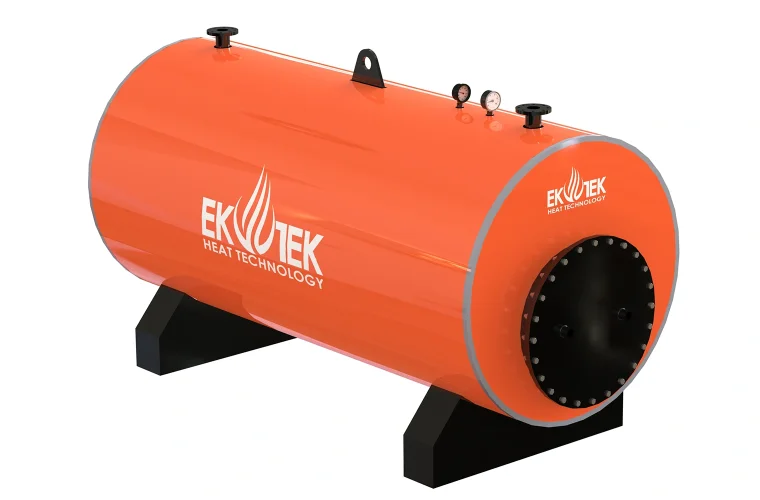

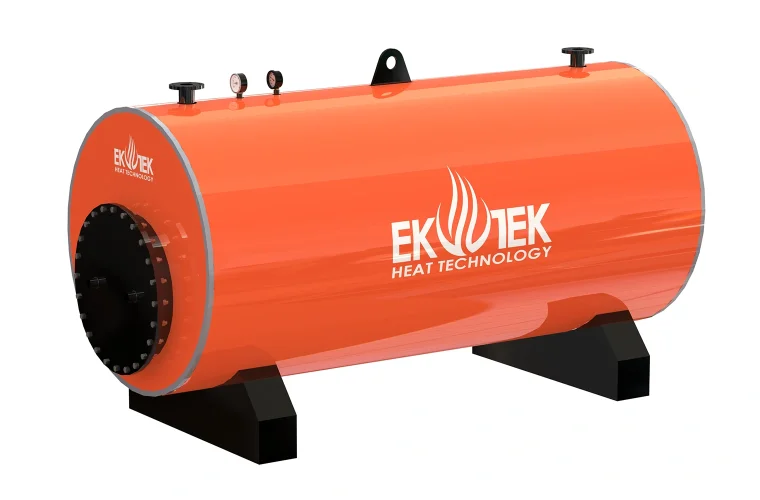

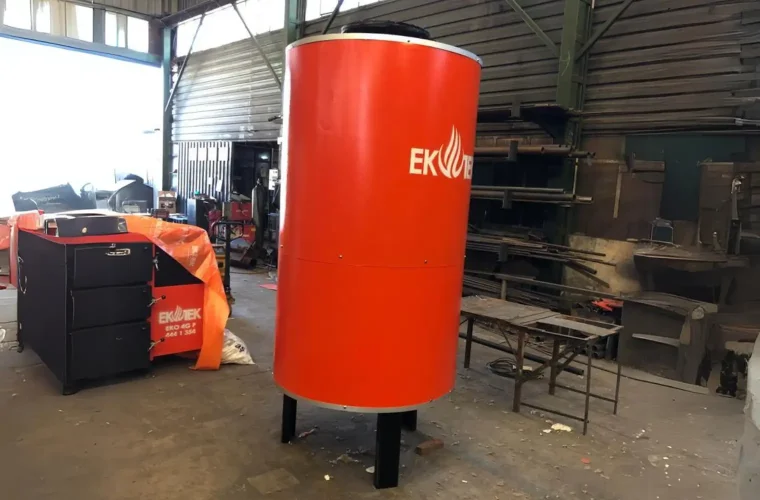

The heat from the heating fluid is transferred to the domestic water via a large-section coil with a wide heat transfer surface area. Single serpentine water storage tanks are suitable for many places that require hot water, such as apartments, hospitals, schools, villas, and hotels. They offer ease of maintenance and use. They can be manufactured in vertical or horizontal types upon request.
All materials used in production are certified. Our products are manufactured in compliance with the 2014/68/EU Pressure Vessels Directive and are CE certified. Our products are made from S235 JR quality steel and are manufactured according to EN288, EN287-1 standards.
