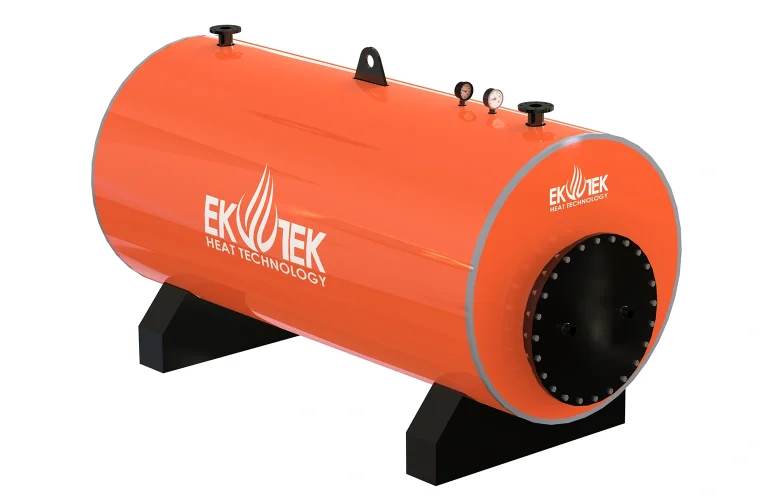

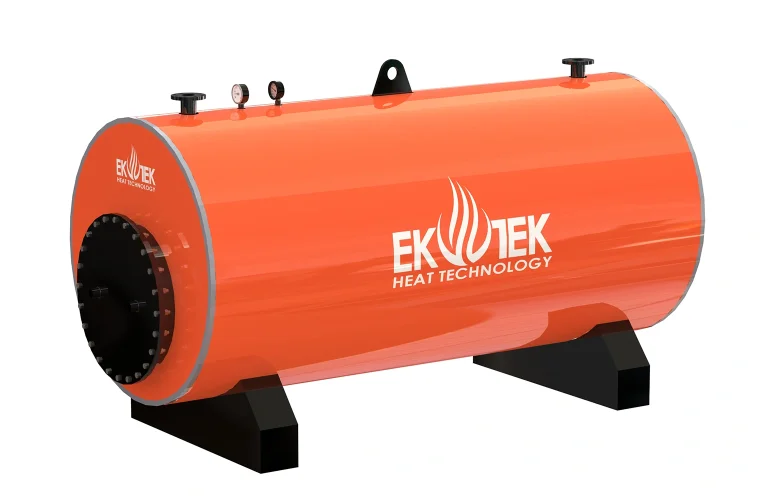

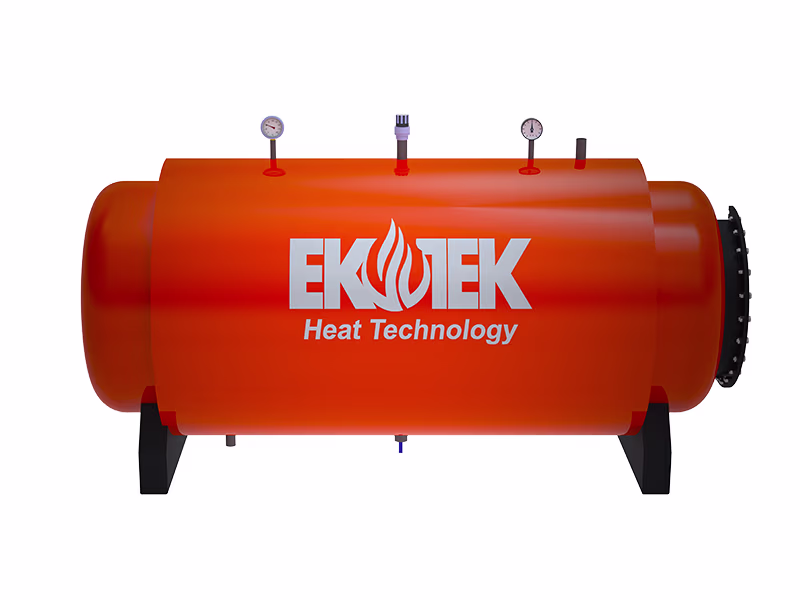

Jacketed Hot Water Storage Tan

Jacketed hot water storage tanks provide both economical and hygienic hot water supply by utilizing heat energy from various sources (such as hot water boilers, steam boilers, solar panels, heat pumps, geothermal energy, etc.).

They can be used with natural circulation or with a circulation pump and can be additionally supported with an electric heater. The inner body of the tank is manufactured with epoxy coating. These tanks are suitable for use in residential buildings, industries, apartments, hospitals, schools, villas, and hotels where there is a need for hot water. They offer ease of maintenance and use.



WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Type of Operation
    Sıvı - Sıvı
  • Operating Temperature
    60°C - 95°C
  • Operating Pressure
    4 - 6 bar, 10 bar veya 16 bar
  • Capacity (L)
    100 - 10.000 lt
  • Heating Power
    20.000 - 1.000.000 kcal/h
  • Application Area
    Konutlar, apartmanlar, hastaneler, okullar, villalar, oteller, endüstriyel tesisler ve sıcak su ihtiyacı olan diğer mekanlar
  • Design Type
    Yatay/Dikey
  • Surface Coating
    Epoksi boya veya galvaniz - galveniz daldırma ve emaye kaplama opsiyoneldir
  • External Casing Cover
    Winlex deri kaplama veya ön yüzü RAL 2004 boyalı, arka yüzü astar boyalı, 1311 kalite galvaniz çelik
  • Insulation
    Poliüretan 50 mm ile kaplıdır. ** Poliüretan dışında taşyünü izalasyon Opsioneldir.
  • Boiler Body
    S235 JR siyah sac kullanılarak EN288, EN287-1 standartlarına göre imal edilmiştir. İç gövde epoksi boyalıdır.
  • Insulation
    Poliüretan veya cam yünü izolasyon
  • Connections
    Flanşlı/Pasolu
  • Additional Features
    Doğal sirkülasyonlu ya da sirkülasyon pompası ile kullanılabilir. İlave olarak elektrikli ısıtıcı ile desteklenebilir. İsteğe bağlı olarak dik ve yatık tip olarak imalatı yapılabilir. Dar hacimlerde yüksek kapasitelerde sıcak su üretimi yapar.
  • Certification
    Ürünlerimiz, 2014/68/EU Basınçlı Kaplar Direktifi'ne uygun olarak üretilmiş olup CE belgesine sahiptir.
  • HS Code
    840390900000 / 7309003000

They can be manufactured in vertical or horizontal types upon request. Thanks to their ergonomic design, they adapt to the place of use. They produce high-capacity hot water in small spaces.
All materials used in production are certified. Our products are manufactured in compliance with the 2014/68/EU Pressure Vessels Directive and are CE certified. Our products are made from S235 JR quality steel and are manufactured according to EN288, EN287-1 standards.
