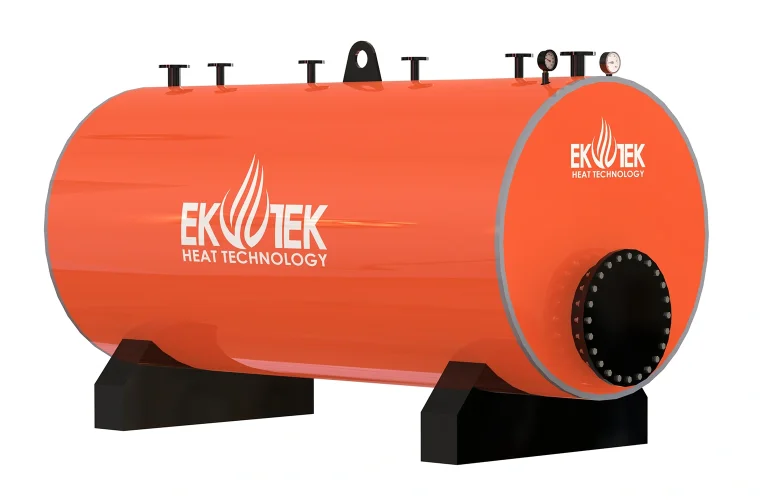

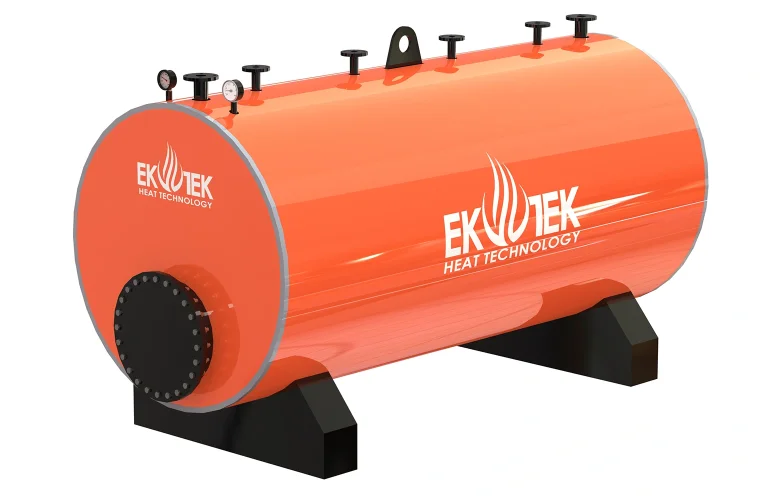

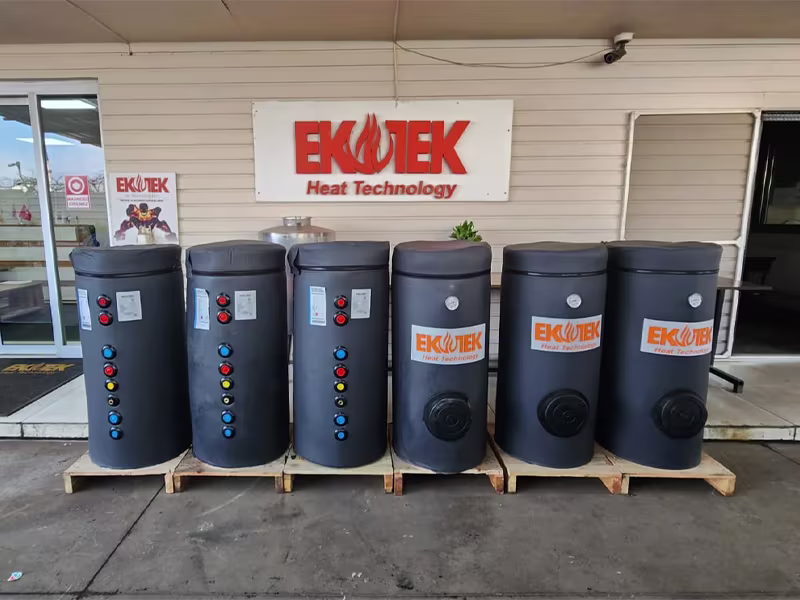

Double Serpentine Hot Water Storage Tank
Double serpentine hot water storage tanks provide economical and hygienic domestic hot water supply by utilizing heat energy from two different sources (such as a hot water boiler, steam boiler, solar energy panels, heat pump, geothermal energy, etc.). They can be used with natural circulation or with a circulation pump.
Technical Specifications
-
Operating TypeLiquid - Liquid
-
Operating Temperature60°C - 95°C
-
Operating Pressure4 – 6 bar, 10 bar or 16 bar
-
Capacity200 - 10.000 lt
-
Heating Power40.000 - 1.000.000 kcal/h
-
Application AreasLarge-scale facilities, central heating systems, hotels, hospitals, thermal facilities, mass housing projects, shopping malls, sports facilities, schools
-
Design TypeHorizontal / Vertical
-
Surface CoatingEpoxy paint or galvanized – optional hot-dip galvanizing and enamel coating
-
Outer CasingWinlex leather coating or RAL 2004 painted front, primer-coated back, galvanized steel quality 1311
-
InsulationCovered with 50 mm polyurethane. Rock wool insulation is optional.
-
Boiler BodyS 235 JR black sheet
-
Thermal InsulationPolyurethane or glass wool
-
ConnectionsFlanged / Threaded
-
HS Code840390900000 / 7309003000
These tanks are suitable for a variety of locations with hot water needs, such as apartments, hospitals, schools, villas, and hotels. Additionally, they can be supported with an electric heater. The inner body of the tank is manufactured with epoxy coating.
The heat from the heating fluid is transferred to the domestic water via a coil with a large cross-section and wide heat transfer surface area. The tank is easy to maintain and use. Upon request, it can be manufactured in both vertical and horizontal types.
All materials used in production are certified. Our products are manufactured in compliance with the 2014/68/EU Pressure Equipment Directive and are CE certified. Our products are made using S235 JR quality steel and are manufactured according to EN288, EN287-1 standards.
