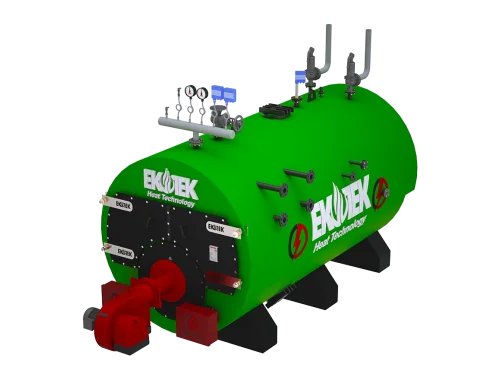

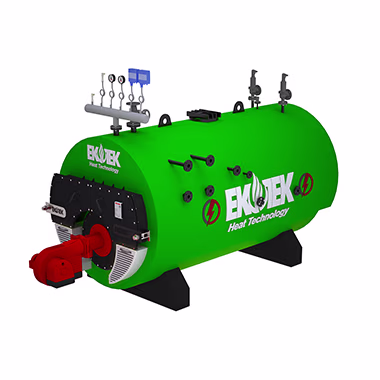

Storm ECO Series - Hybrid Steam Boiler

Storm ECO Series - Hybrid Steam Boiler

The Storm Hybrid Series is an intelligent hybrid system designed to generate high-quality steam for industrial facilities. It primarily operates on liquid and gas fuels such as natural gas, diesel, fuel oil, LPG, and LNG. When needed, it is supported by electric power to ensure uninterrupted operation. Thanks to its hybrid structure, steam production is carried out with an energy-efficient system that optimizes energy costs while ensuring supply security.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Steam Production Capacity
    200 - 15.000 kg/hour
  • Operating Pressure
    8 – 16 bar
  • Secondary Power Options
    100 Kw - 5232 Kw
  • Design Type
    3-pass Scotch type
  • Electric Transition Management
    Fuel with automatic control system
  • Boiler Control Panel
    Remote monitoring and management with SCADA & PLC
  • Electric-Assisted Mode
    Low load optimization in electrically assisted operation mode

The Storm Hybrid Series offers high efficiency and low emissions with its specially engineered body structure for high-pressure steam demand, featuring a three-pass Scotch-type flame-smoke tube design. Thanks to SCADA & PLC-supported automation, the system can be monitored and managed remotely.

Areas of Use

  • Textile: Dyehouses, finishing and treatment lines
  • Food: Pasteurization, sterilization, blanching, cooking
  • Pharmaceutical and Chemical: Process heating, reactor jacket systems
  • Autoclave Systems: Packaging, sterile material production
  • Energy-Focused Facilities: Production lines requiring continuous steam supply

Advantages of the Storm Series

  • Fuel-priority operation with electric backup ensures continuous energy supply
  • ±0.1 bar steam pressure accuracy
  • Automatic switching based on energy tariff for cost optimization
  • Low emissions and high efficiency
  • Large-volume boiler design ensures stability during sudden steam demand
  • SCADA & PLC-supported control system for remote access and enhanced operational safety

Where Should the Storm Hybrid Series Be Used?

The Storm Hybrid Series is an ideal solution for facilities that require high steam output while aiming to control energy costs. Its hybrid structure ensures both energy security and economical operation. It is especially preferred in the following cases and sectors:

  • Regions with high energy costs
  • Facilities seeking backup solutions against power outages
  • Processes requiring continuous steam supply
  • Large-scale facilities with high steam consumption
  • Eco-conscious operations aiming to reduce emissions

Advantages of the Storm Hybrid Series

  • Uninterrupted Operation: The boiler continues to operate with electric support even if the main fuel is interrupted
  • Energy Cost Optimization: Automatically switches to the most affordable energy source based on tariffs
  • Smart Control System: Burner and electric transitions are automated—no manual intervention required
  • Environmentally Friendly Operation: Significantly reduces emissions in electric-supported mode
  • Wide Capacity Range: Produces between 200 – 40,000 kg/h of steam, suitable for SMEs to large industrial facilities
  • Modular Structure and Easy Integration: Easily integrates with existing systems, offering low installation costs
