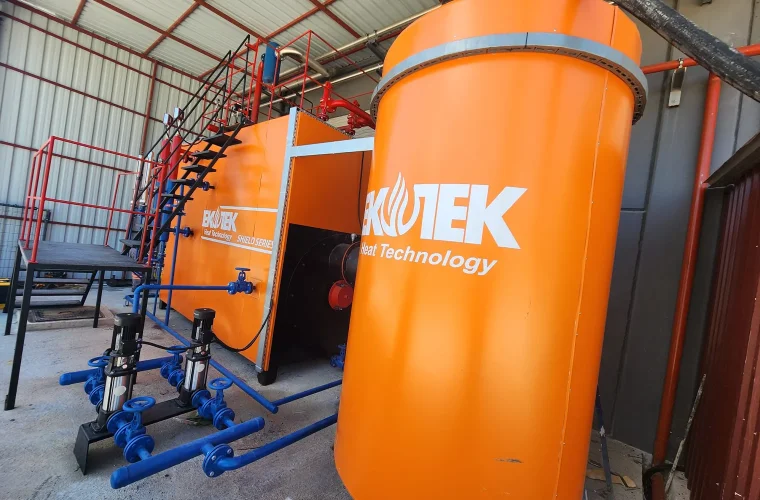

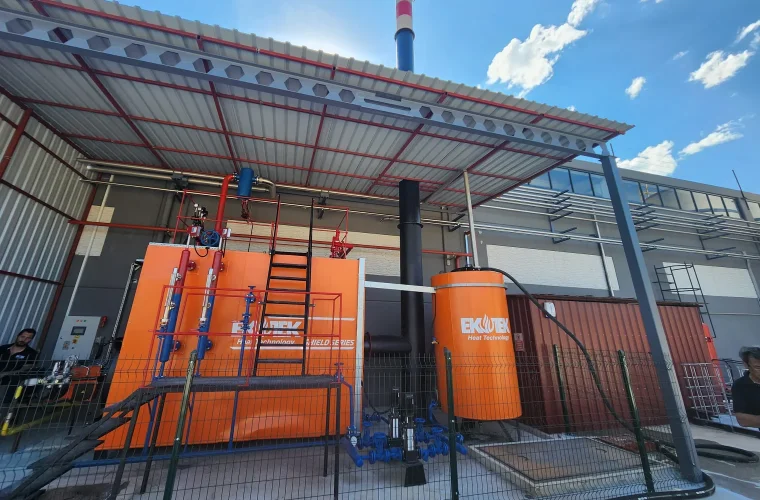

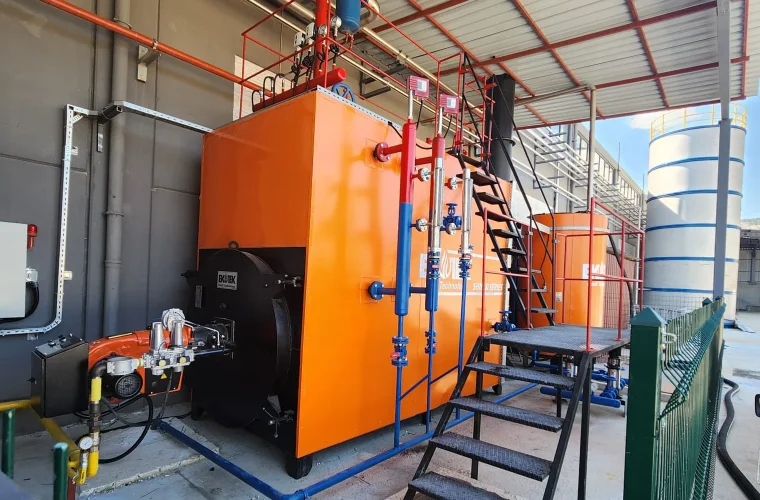

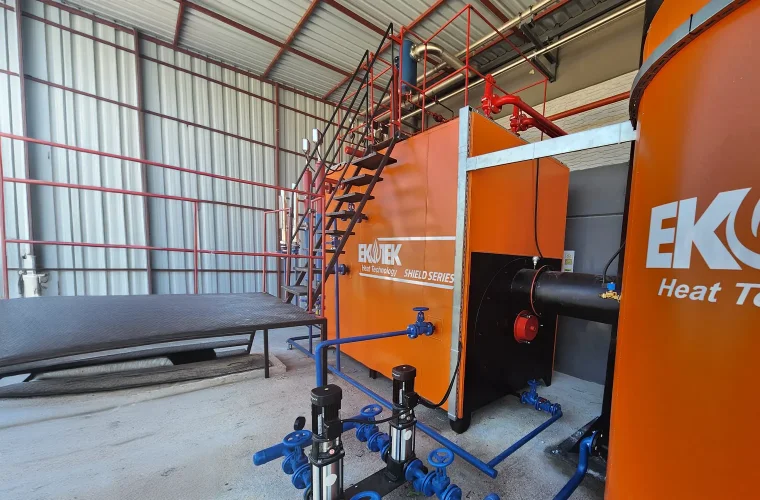

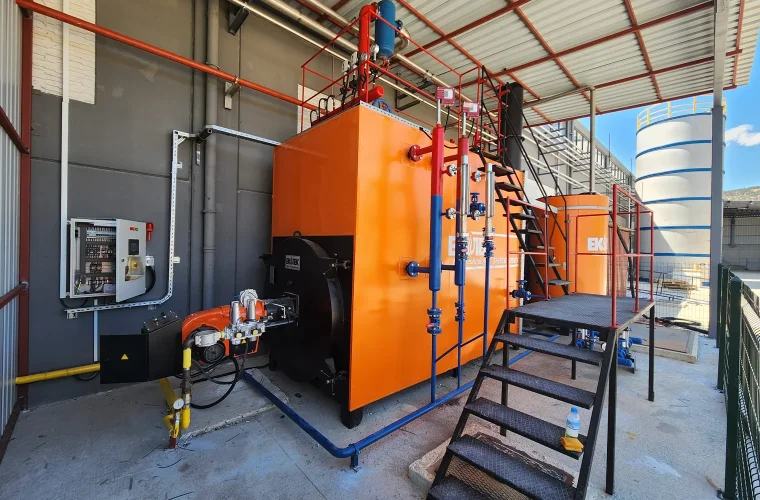

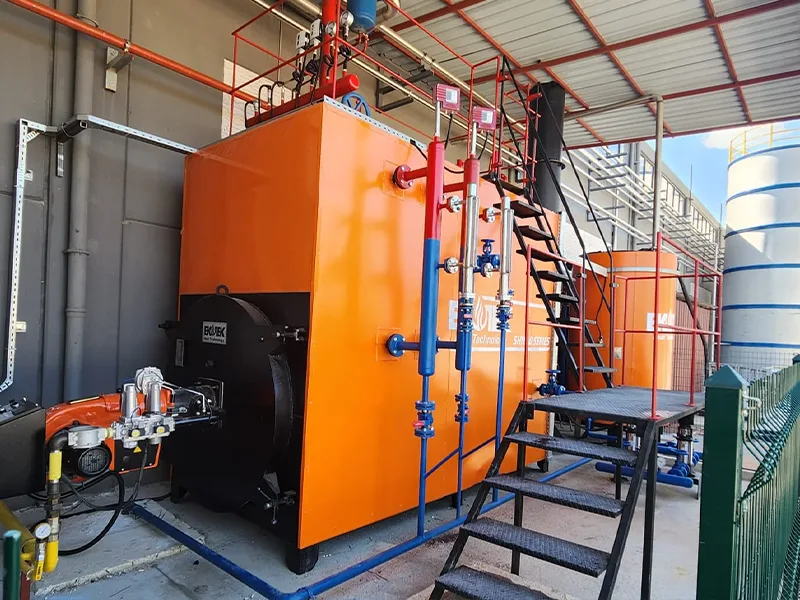

Shield Series - Fire Tube, 3-Pass Steam Generator

Shield Series fire tube, 3-pass steam generator offers comfortable and high-efficiency combustion performance with low back pressure values.

With its 3-pass design, the flame and smoke come into contact with the entire combustion surface, ensuring the most efficient use of the combustion surface. Strong insulation with glass wool, rock wool, and ceramics prevents heat loss.

Ekotek Heating Technology recommends only well-known brands for all accessories and burner systems used in its package steam boilers.

WhatsApp Quick Contact

Technical Specifications

Steam Production Capacity

400 kg/h - 16.000 kg/h
Working Pressure

3 - 16 Bar
Design Type

Fire Tube, 3-Pass Steam Generator
Fuel Type

LNG, Propane, CNG, Natural Gas, LPG, Biogas, Diesel, Fuel Oil
Thermal Capacity

250,000 Kcal/h - 10,000,000 Kcal/h

Ekotek Heating Technology uses five types of safety systems in all its steam boilers. Steam temperature, mechanical pressure, digital pressure, safety valve, flue gas temperature controls, and all safety systems, including feedwater pumps, are used in standard packages in pairs.

If requested, a PLC control system can be added.

If you want to have full control, be sure to check out our optional features. Control your power with Ekotek technology. With optional features, the PLC Touch Screen controlled Modbus RTU (Remote Terminal Unit RTU) is entirely under your control.

No risk of explosion.
Our boilers operate quietly, preventing noise pollution.
With its elegant appearance, it stands out in its environment.
Easy to install.
Easy to maintain.
If requested, our steam boiler can be delivered as a package with all accessories.
Every stage of our production is carried out under the assurance of our quality control teams.
