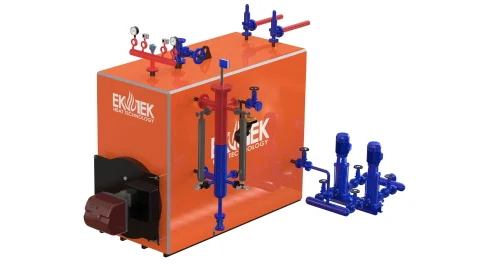

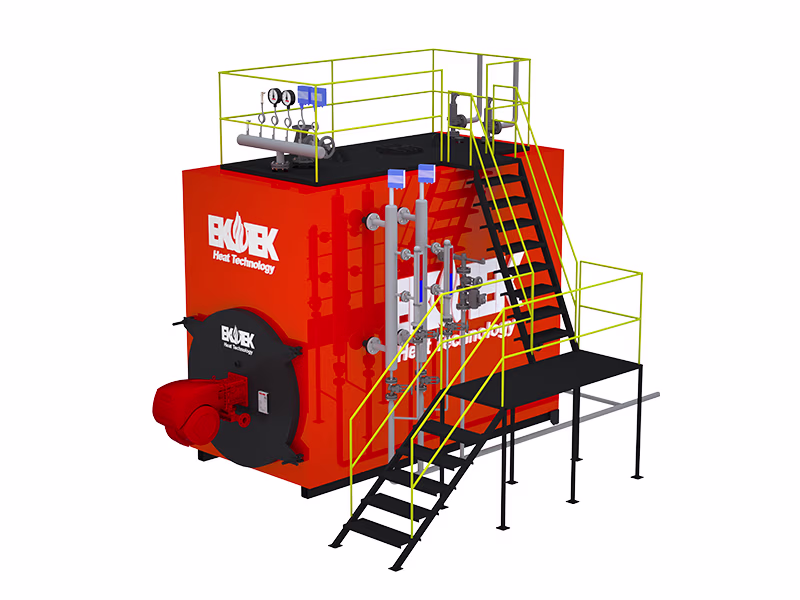

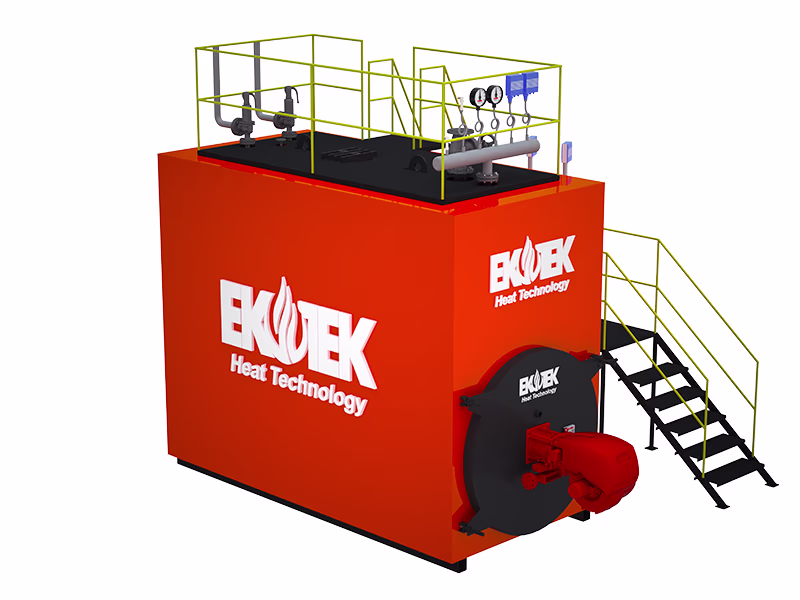

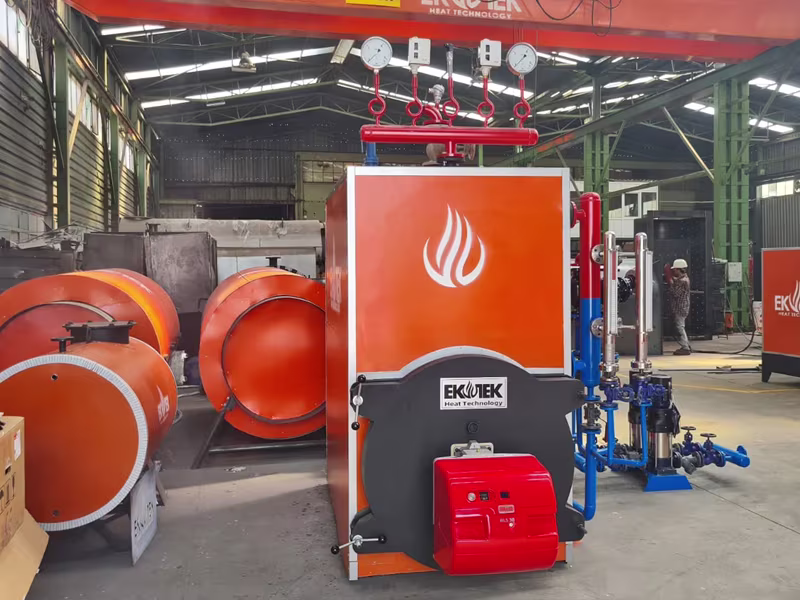

Shield Series - Liquid and Gas-Fired Steam Boiler
The Shield Series liquid and gas-fired steam boiler offers comfortable and high-efficiency combustion performance with low back pressure values. With its 3-pass design, the flame and smoke come into contact with the entire combustion surface, ensuring the most efficient use of the combustion surface. Strong insulation with glass wool, rock wool, and ceramics prevents heat loss.
Technical Specifications
-
Steam Production Capacity400 kg/h - 16.000 kg/h
-
Operating Pressure3 - 16 Bar
-
Design TypeFire Tube, 3-Pass
-
Fuel TypeLNG, Propane, CNG, Natural Gas, LPG, Biogas, Hydrogen, Diesel, Fuel Oil, Dual-Fuel
-
Heat Capacity250,000 Kcal/h - 10,000,000 Kcal/h
-
BurnerCompatible with Universal Burners
-
Flue ExitRear, with flue gas temperature safety sensor
-
Boiler Control PanelPLC touch screen control - HMI screen, Modbus, TCP, and other communication protocols
-
Mobile Portable Boiler SystemCan be designed for a maximum capacity of 1,500 Kg/h
-
HS Code840219900019
Ekotek Heating Technology uses five types of safety systems in the Shield Series liquid and gas-fired steam boiler:
- Steam Temperature
- Mechanical Pressure
- Digital Pressure
- Safety Valve
- Flue Gas Temperature Controls
Additionally, all safety systems, including feedwater pumps, are used in pairs as a standard package. If requested, a PLC control system can be added.
If you want full control, be sure to check out our optional features. Control your power with Ekotek technology.
With optional features: PLC touch screen control, Modbus RTU (Remote Terminal Unit RTU), entirely under your control.
- No risk of explosion.
- Our boilers operate quietly, preventing noise pollution.
- With its elegant appearance, it stands out in its environment.
- Easy to install and maintain.
- If requested, our steam boiler can be delivered as a package with all accessories.
