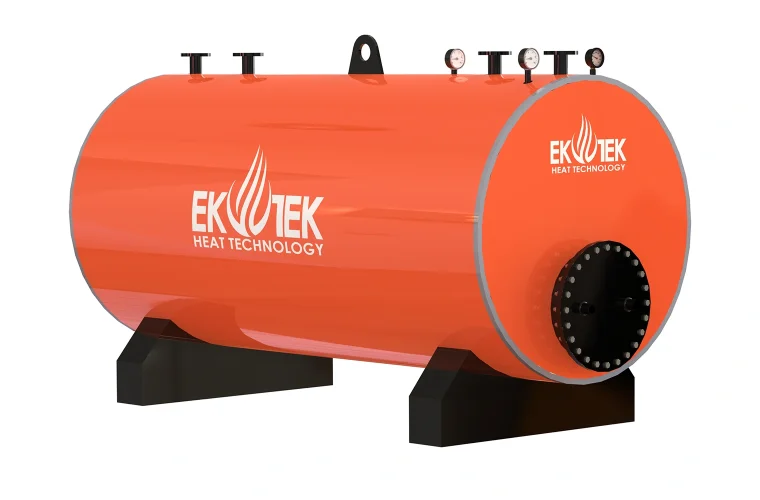

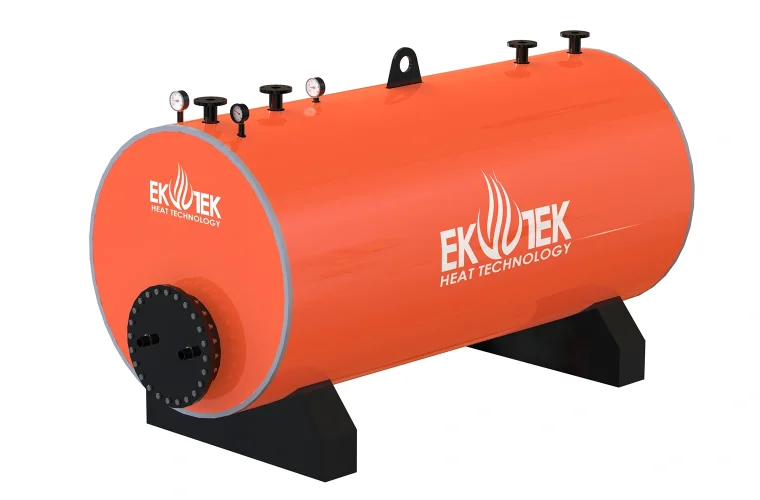

Serpentine And Jacketed Hot Water Storage Tank

Jacketed and serpentine hot water storage tanks provide economical and hygienic hot water using heat energy from sources such as hot water boilers, steam boilers, solar panels, heat pumps, and geothermal energy.

They can be used with natural circulation or a circulation pump, and can also be supported by an electric heater. The inner body of the tank is manufactured with an epoxy coating. These tanks are suitable for homes, industries, and various places like hotels where hot water is needed.

WhatsApp Quick Contact WhatsApp Quick Contact

Technical Specifications

  • Type of Operation
    Sıvı - Sıvı
  • Operating Temperature
    60°C - 95°C
  • Operating Pressure
    10 bar
  • Capacity (L)
    100 - 10.000 lt
  • Heating Power
    20.000 - 1.000.000 kcal/h
  • Application Area
    Konutlar, endüstriyel tesisler, oteller ve sıcak su ihtiyacı olan diğer mekanlar
  • Design Type
    Yatay/Dikey
  • Surface Coating
    Epoksi boya veya galvaniz - galveniz daldırma ve emaye kaplama opsiyoneldir
  • External Casing Cover
    Winlex deri kaplama veya ön yüzü RAL 2004 boyalı, arka yüzü astar boyalı, 1311 kalite galvaniz çelik
  • Insulation
    Poliüretan 50 mm ile kaplıdır. ** Poliüretan dışında taşyünü izalasyon Opsioneldir.
  • Boiler Body
    S235 JR siyah sac kullanılarak EN288, EN287-1 standartlarına göre imal edilmiştir. İç gövde epoksi boyalıdır.
  • Insulation
    Poliüretan veya cam yünü izolasyon
  • Connections
    Flanşlı/Pasolu
  • Additional Features
    Doğal sirkülasyonlu ya da sirkülasyon pompası ile kullanılabilir. İlave olarak elektrikli ısıtıcı ile desteklenebilir. İsteğe bağlı olarak dik ve yatık tip olarak imalatı yapılabilir. Birden fazla serpantinli imalatı yapılabilmektedir. Bakır boru serpantinli veya çelik boru serpantinli olarak imalatı yapılabilir. Bakımı ve kullanım kolaylığı vardır.
  • Certification
    Ürünlerimiz, 2014/68/EU Basınçlı Kaplar Direktifi'ne uygun olarak üretilmiş olup CE belgesine sahiptir.
  • HS Code
    840390900000 / 7309003000

Jacketed and coil tanks are easy to maintain and use, and they can be manufactured in vertical or horizontal designs upon request. Multiple coils can also be manufactured upon request. The tanks can be made with either copper tube coils or steel tube coils, depending on the customer’s preference. They are designed to operate at a pressure of up to 10 bar.

All materials used in production are certified. Our products are manufactured in compliance with the 2014/68/EU Pressure Vessels Directive and are CE certified. They are produced using S235 JR quality steel, in accordance with EN288 and EN287-1 standards.
