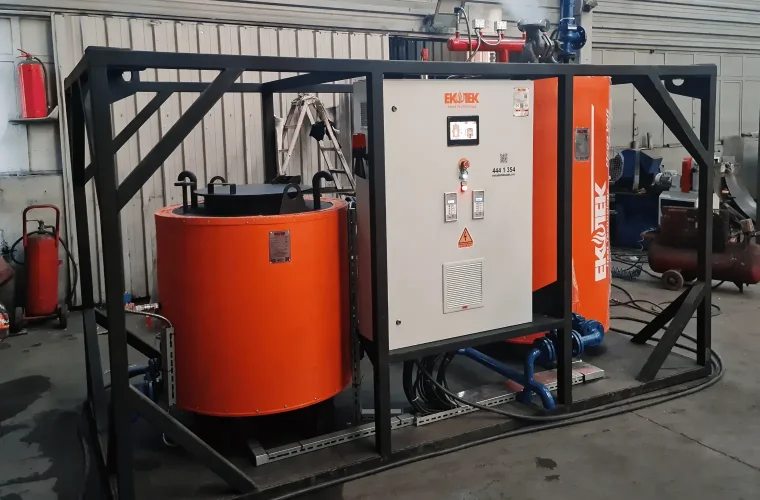

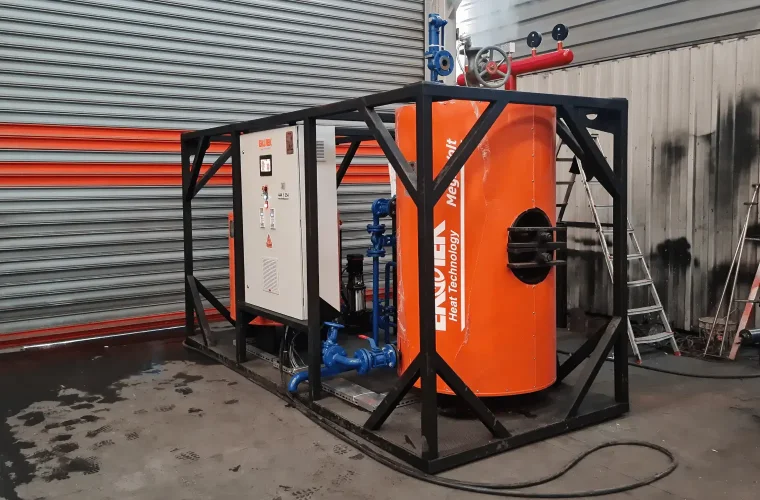

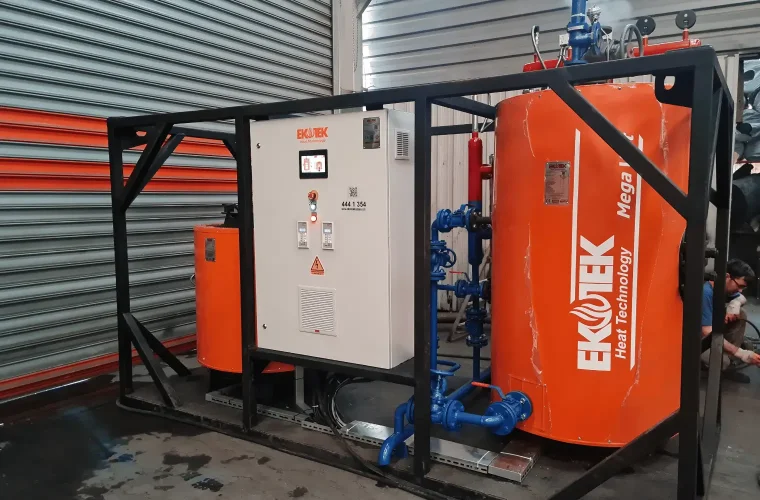

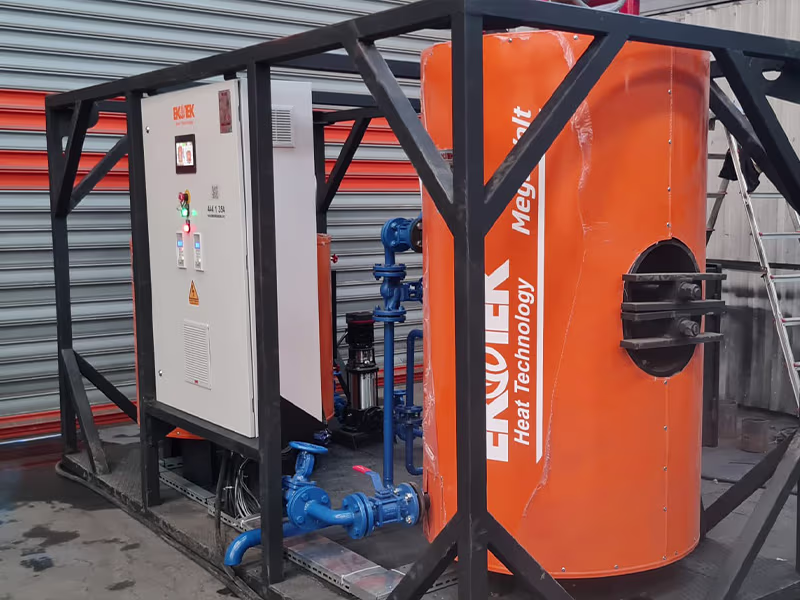

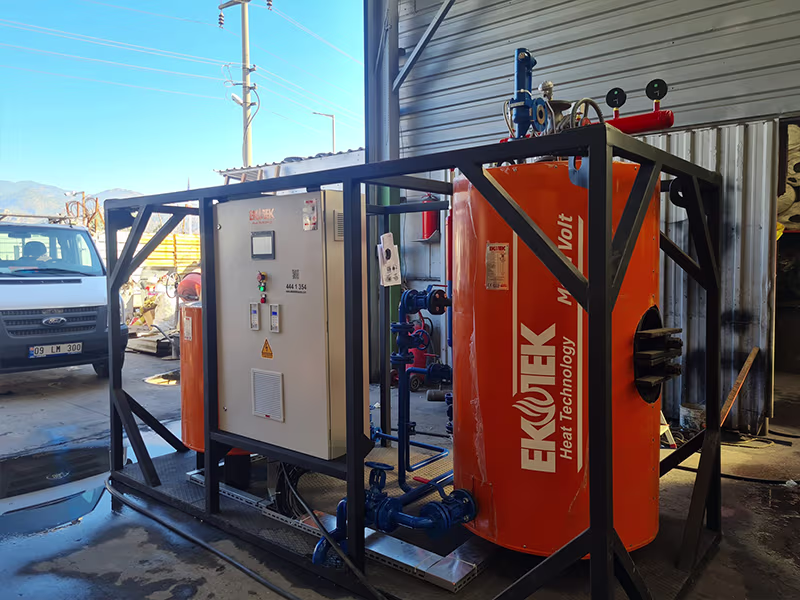

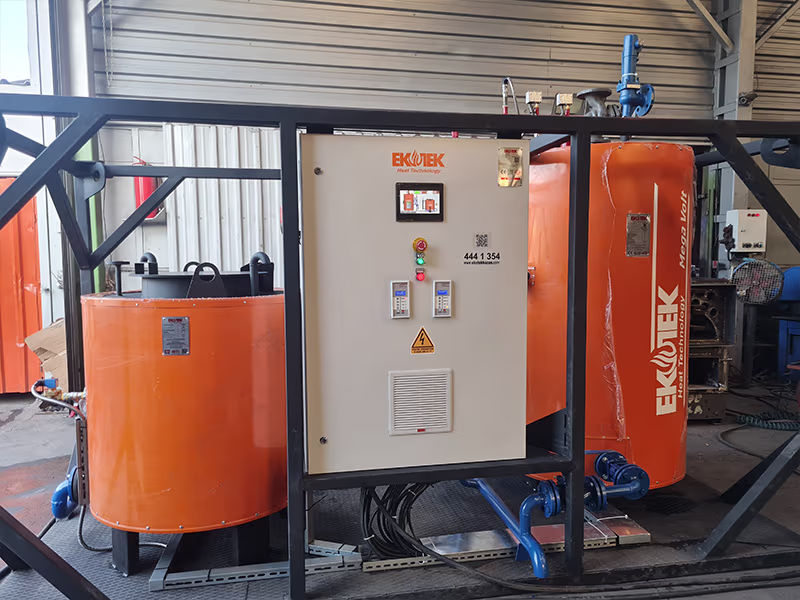

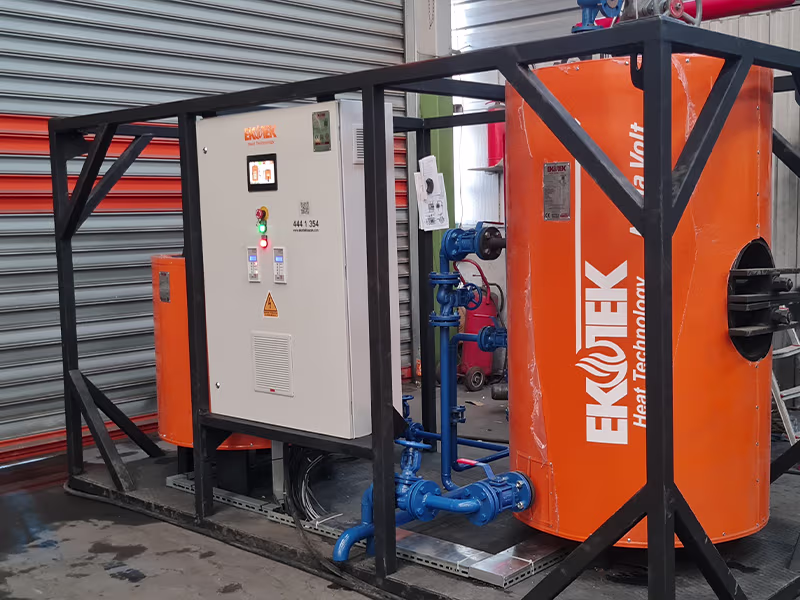

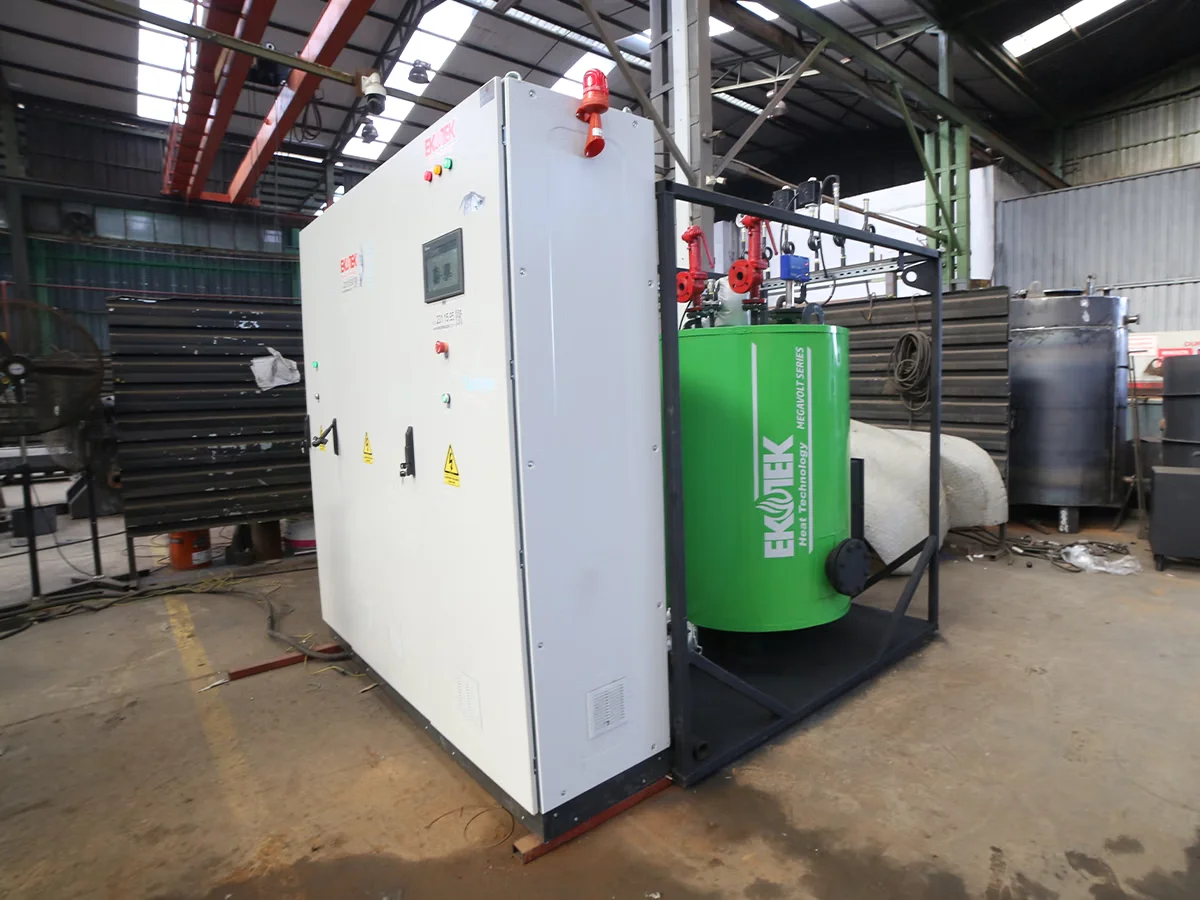

Mega Volt Series - Electric Steam Generator
The steam production capacity of our Mega Volt series steam generator ranges from 50 kg/h to 1750 kg/h.
Technical Specifications
-
Steam Production Capacity50 Kg/h - 1.750 Kg/h
-
Working Pressure1-50 Bar
-
Heat Capacity40 kW - 1.200 kW
-
Design TypeHorizontal - Vertical body
-
Heating SystemElectric - 230v 50 Hz / 230v 60 Hz * Electric - 380v 50 Hz / 380v 60 Hz
-

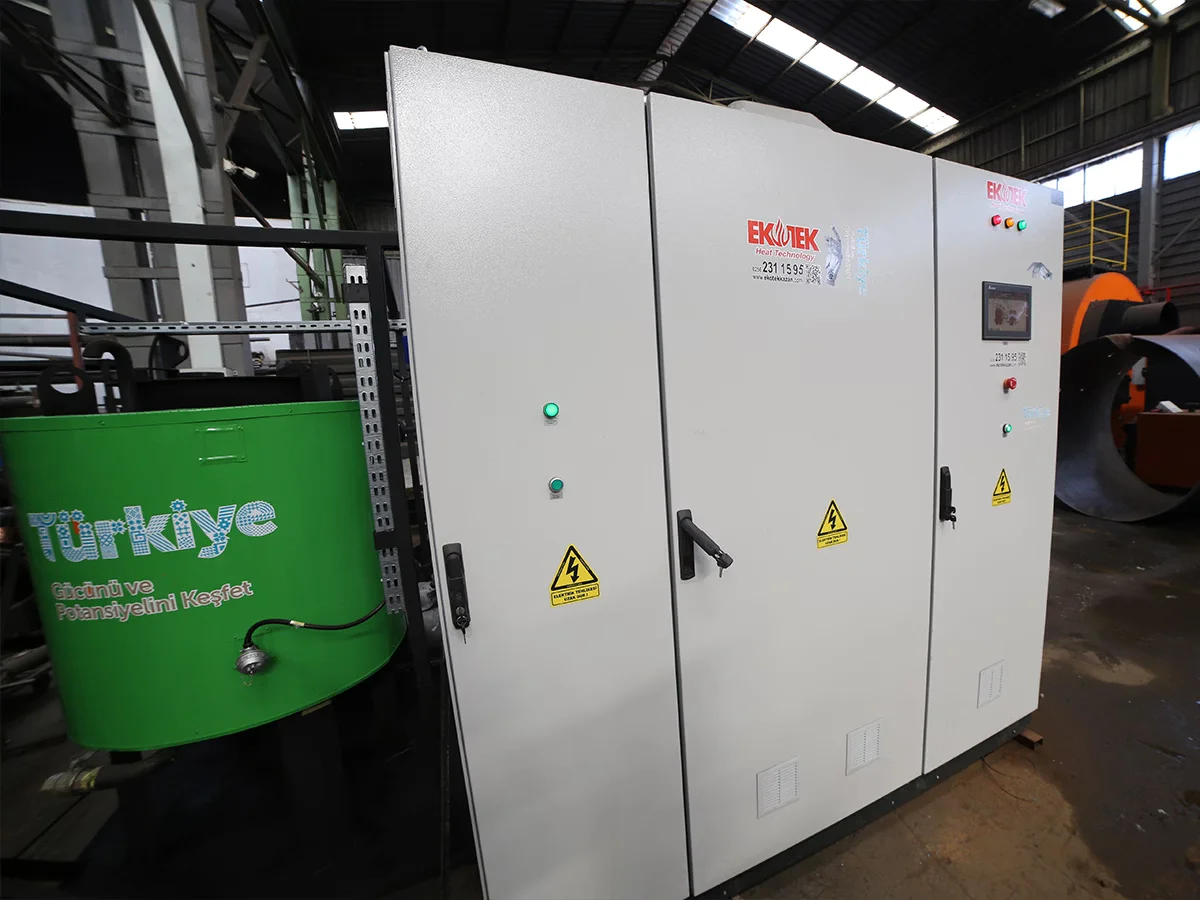

Boiler Control PanelPLC touch screen control - HMI screen, Modbus, TCP, and other communication protocols
-
Flue ExitNone
-
Mobile Portable Boiler SystemCan be designed with a maximum capacity of 2,000 Kg/h
-
HS Code840219900019
Due to the extremely low water volume in the electric steam generator, it is suitable for use in human-operated environments. The steam temperature and all functions can be monitored from the control panel via a PID screen or an optional PLC screen. The heating elements are made of stainless steel. The outer casing is coated with electrostatic powder-coating baked enamel. It is ready for operation once the electrical and water connections are made.

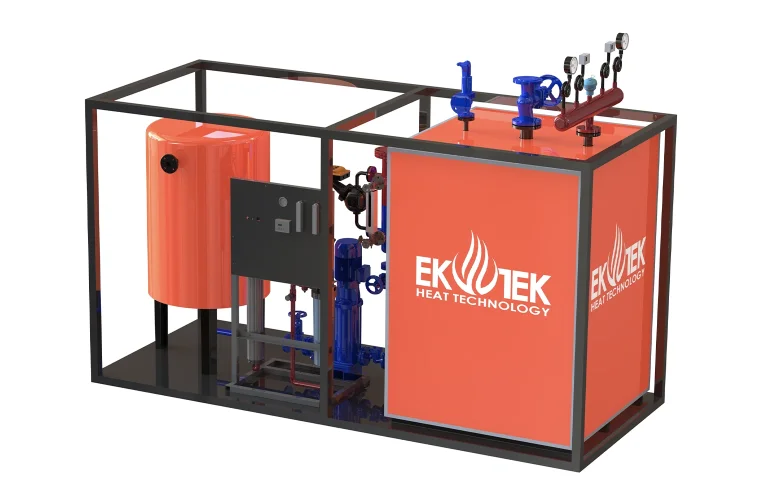

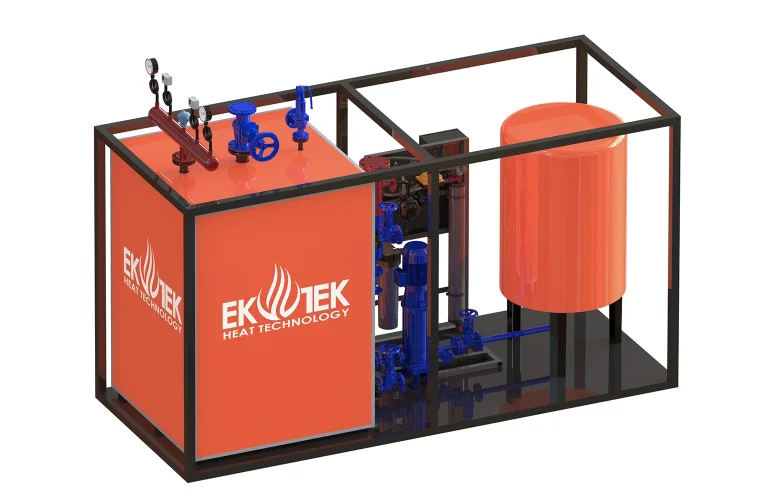

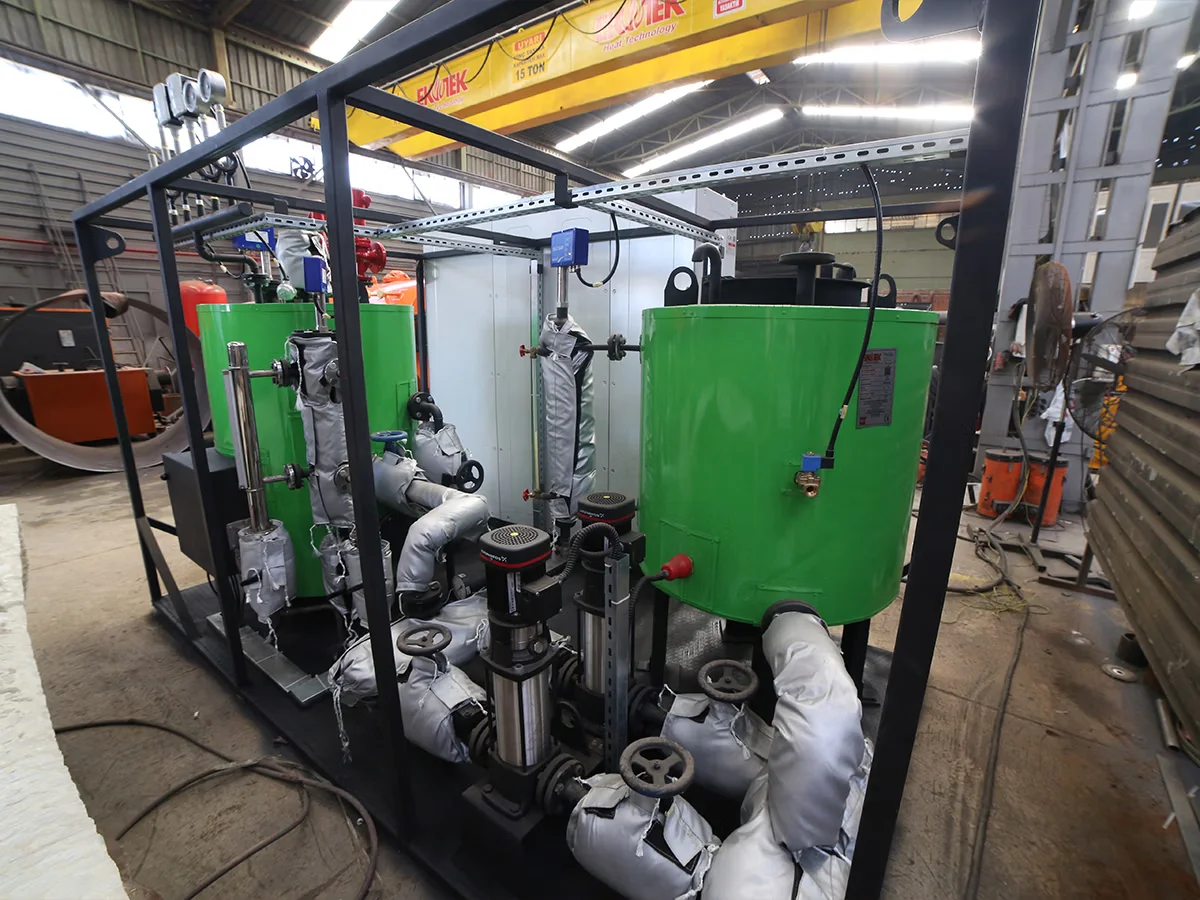

It is a complete package unit with all its equipment, and it is very easy to install and transport.
Ekotek Heating Technology uses five types of safety systems in the Mega Volt Series electric steam generator:
- Steam temperature
- Mechanical pressure
- Digital pressure
- Safety valve
- Flue gas temperature controls

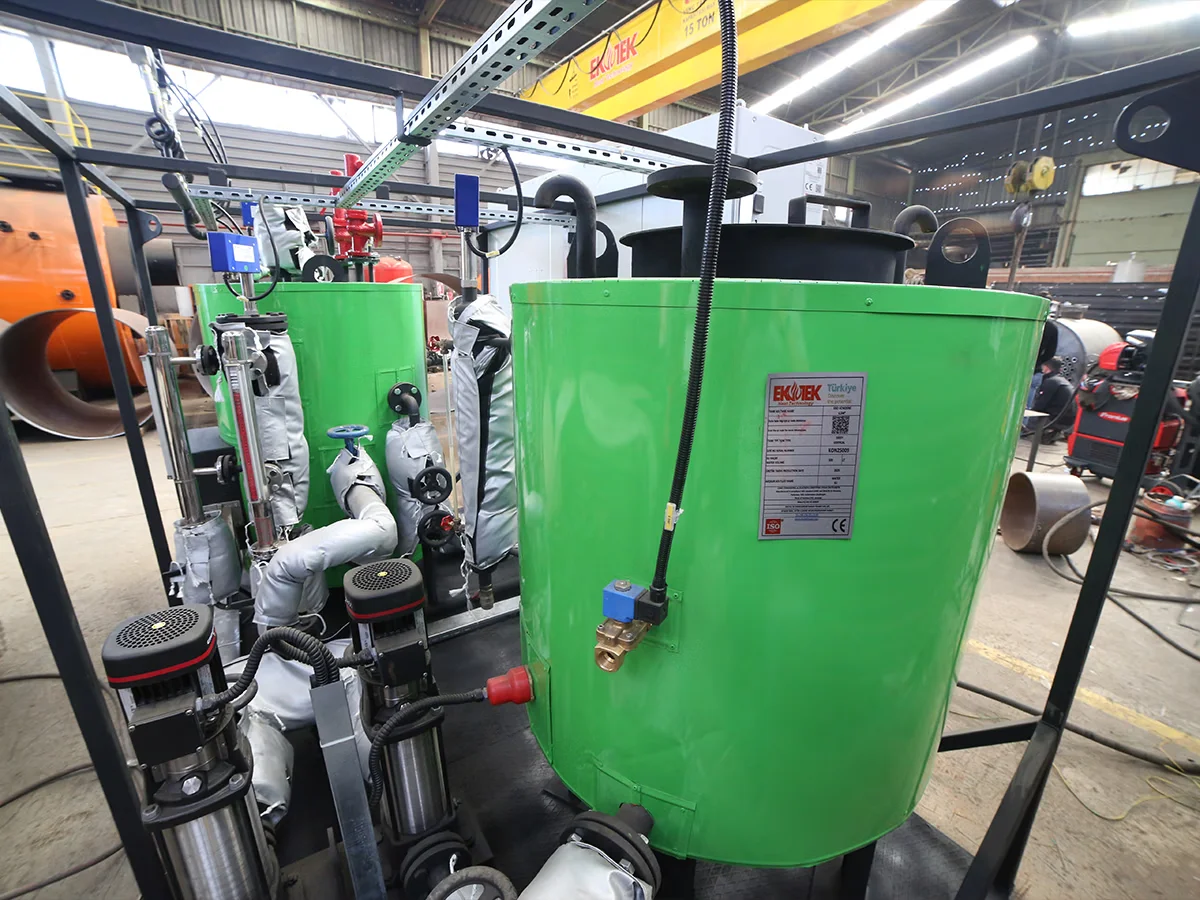

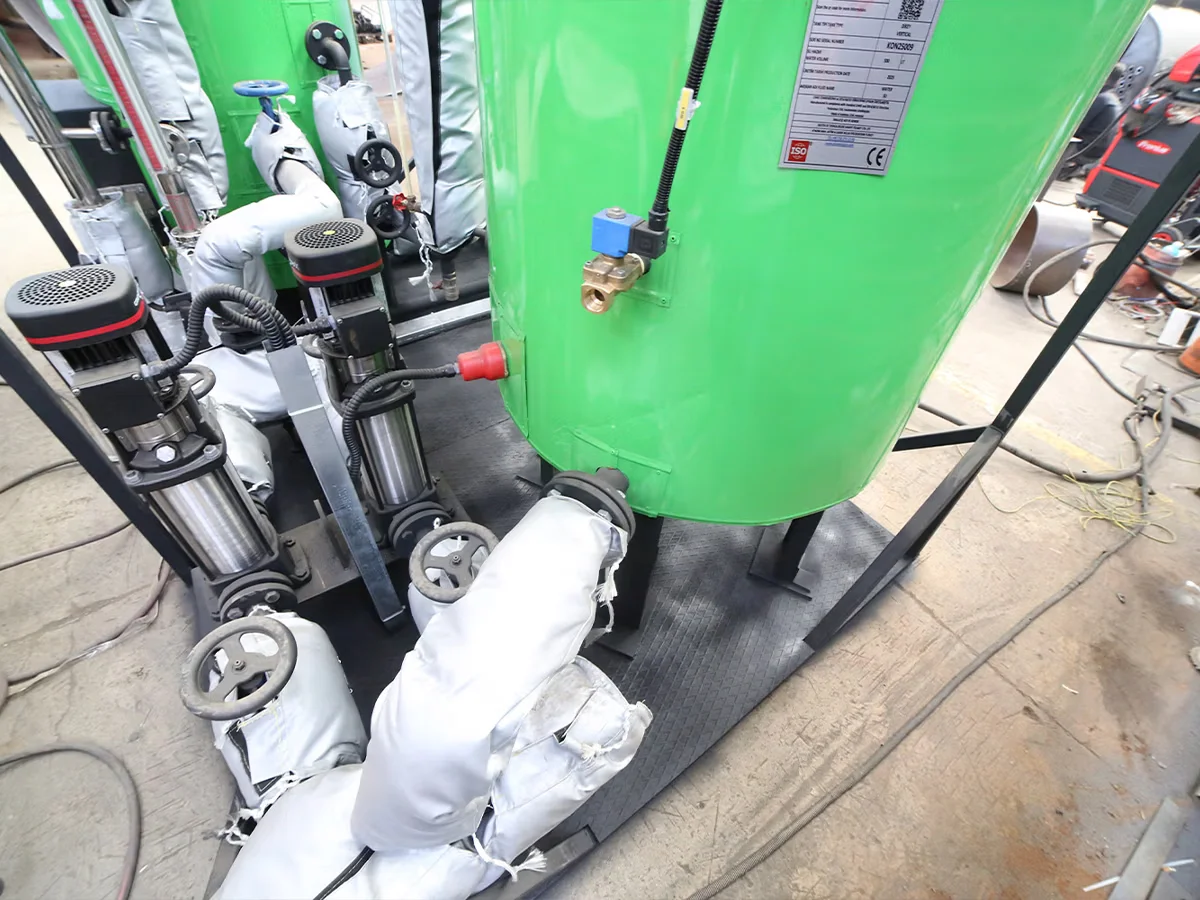

Additionally, all safety systems, including feedwater pumps, are provided as a standard package in pairs. With optional features, the PLC touch screen controlled Modbus RTU (Remote Terminal Unit RTU) is entirely under your control. Control your power with Ekotek technology.
