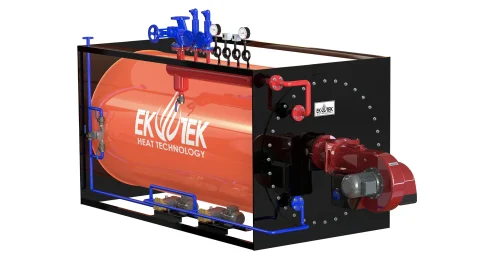

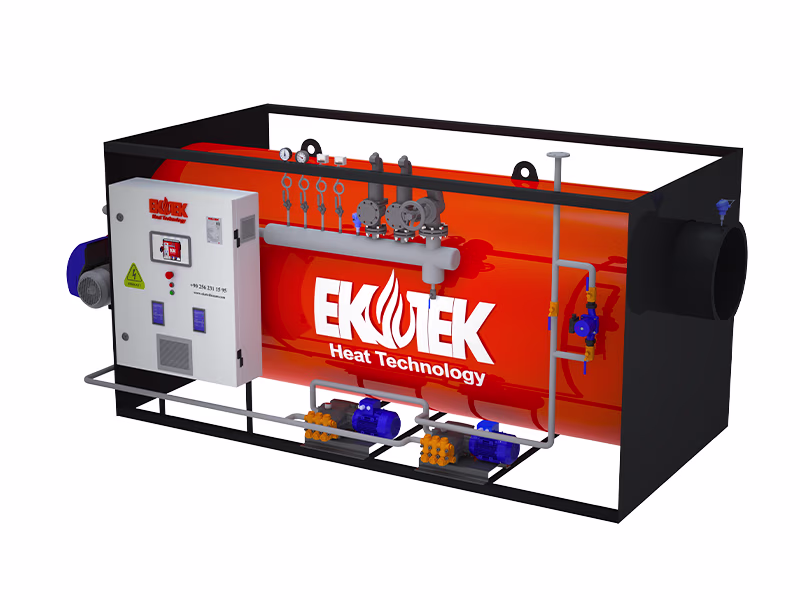

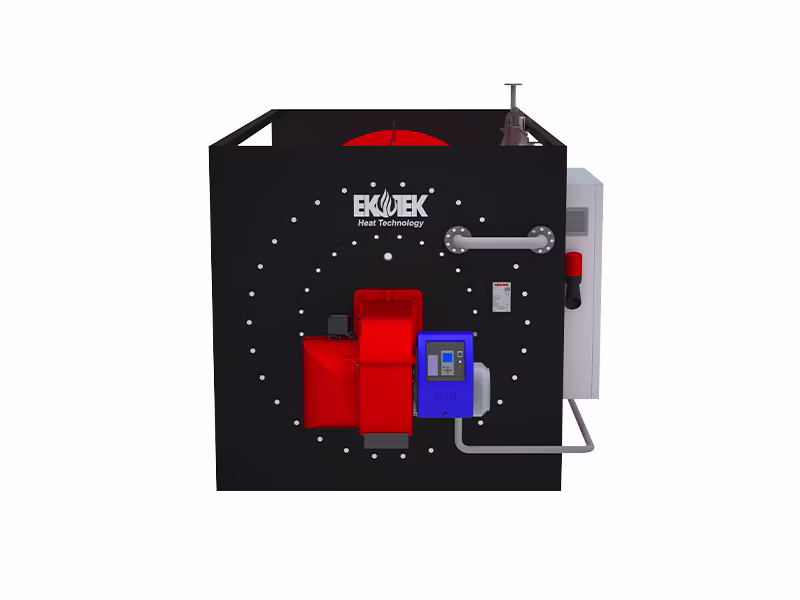

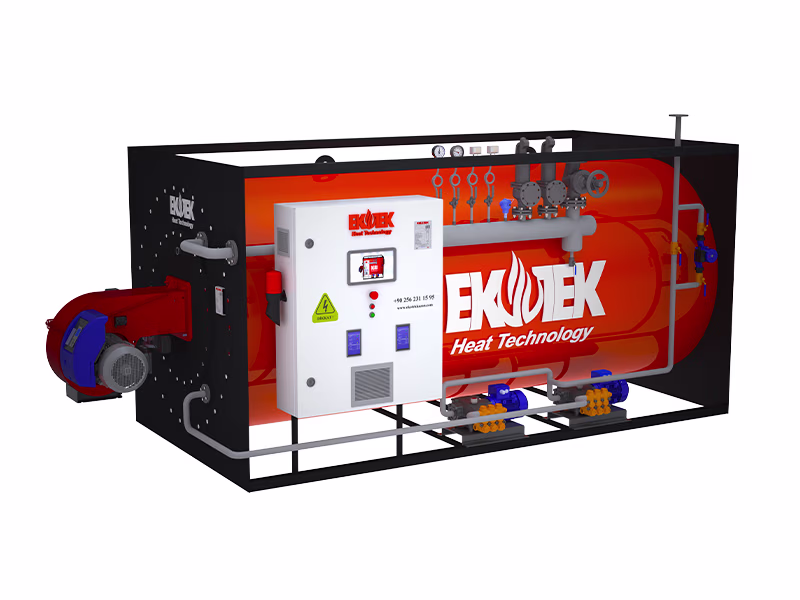

Flash Series - Liquid Gas Fired Steam Generator
The Flash Series liquid gas-fired steam generator offers efficient and reliable combustion performance with low back pressure.
Technical Specifications
-
Steam Production Capacity150 kg/h - 6000 kg/h
-
Operating Pressure3-50 Bar
-
Thermal Capacity105 kW - 4.186 kW
-
Design TypeWater-tube, 3-Pass Generator
-
Fuel TypeLNG, Propane, CNG, Natural Gas, LPG, Biogas, Hydrogen, Diesel, Fuel Oil, Dual Fuel
-
BurnerCompatible with universal burners
-
Chimney OutletRear exit, equipped with chimney heat safety sensor
-
Boiler Control PanelPLC touchscreen control - HMI screen, Modbus, TCP, and other communication protocols
-
Mobile Portable Boiler SystemCan be designed for a maximum capacity of 1,500 Kg/h
-
GTIP Code / HS Code840212000000
Ekotek Heat Technology's Flash Series liquid gas-fired steam generator is equipped with 5 safety systems:
- Steam Temperature,
- Mechanical Pressure,
- Digital Pressure,
- Safety Valve,
- Chimney Temperature Controls.
Additionally, all safety systems, including boiler feed pumps, are provided in a dual configuration as standard. A PLC control system can be added upon request. If you want full control, be sure to explore our optional features.
Take control of your power with Ekotek technology.
With optional features like PLC Touchscreen control, Modbus RTU (Remote Terminal Unit RTU), the system is completely under your control.
There is no risk of explosion. Our boilers operate quietly, avoiding noise pollution. With an elegant design, they seamlessly integrate into their environment. Easy to install and maintain.
***Upon request, our steam boiler can be delivered as a complete package with all accessories included.
